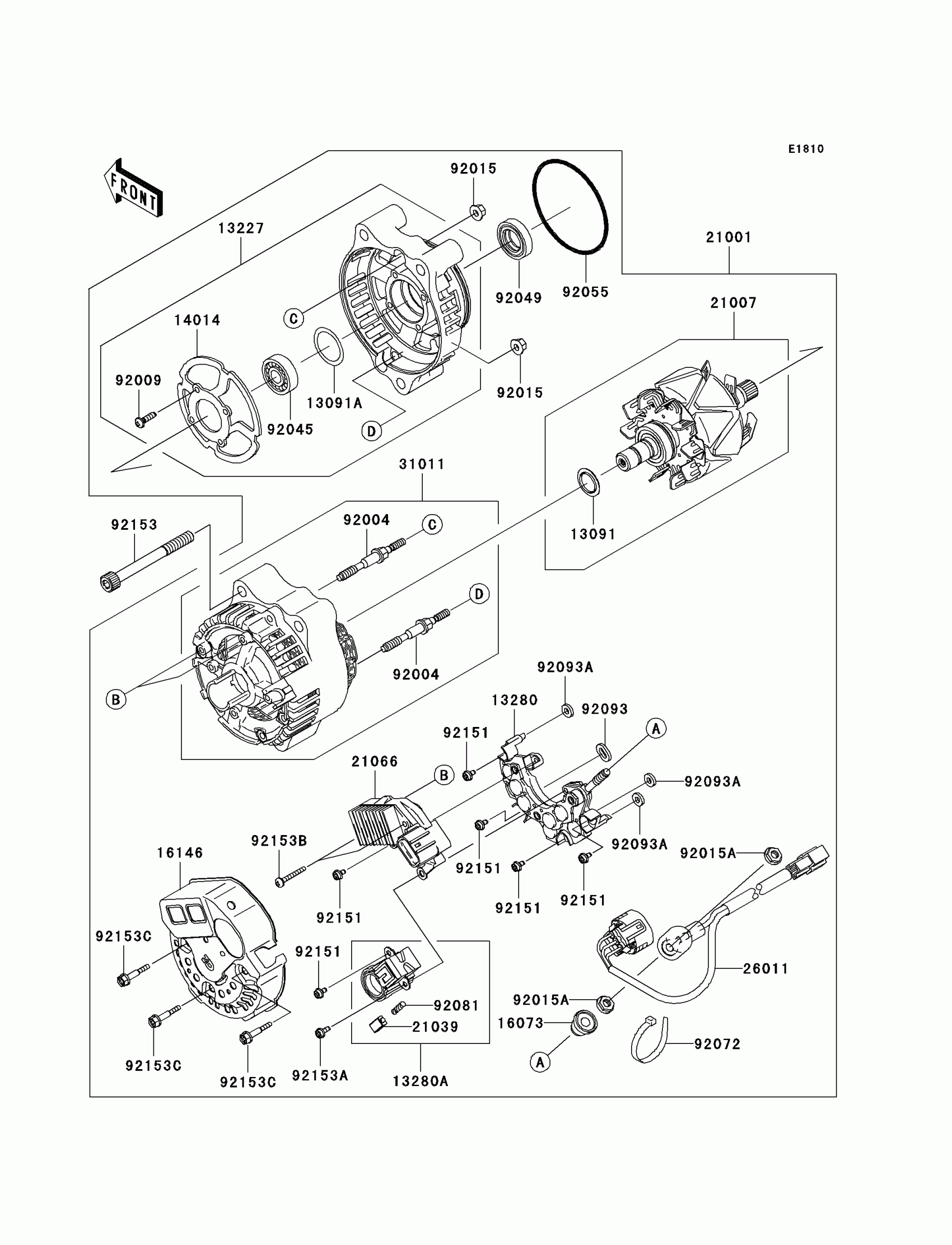

Find the part on the Generator diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,COVER

13091-1327

1

$18.17

In stock

13091A

HOLDER,BEARING

13091-1748

1

$14.14

In stock

13227

HOUSING,FRAME

13227-1143

1

$833.67

In stock

13280

HOLDER,RECTIFIER

13280-1291

1

$134.98

In stock

13280A

HOLDER,BRUSH

13280-1292

1

$16.14

In stock

14014

PLATE-POSITION

14014-1105

1
Out of stock

16073

INSULATOR,TERMINAL

16073-1127

1

$24.83

In stock

16146

COVER-ASSY,END,RR

16146-1232

1

$226.51

In stock

21001

GENERATOR

21001-1192

1

$1,448.07

In stock

21007

ROTOR

21007-1420

1

$652.50

In stock

21039

BRUSH,CARBON

21039-1052

1

$29.01

In stock

21066

REGULATOR-VOLTAGE

21066-1136

1

$597.75

In stock

26011

WIRE-LEAD

26011-1846

1

$95.08

In stock

31011

FRAME,END,RR

31011-1088

1

$707.51

In stock

92004

STUD

92004-1196

1
Out of stock

92009

SCREW

92009-1645

1
Out of stock

92015

NUT

92015-1851

1
Out of stock

92015A

NUT

92015-2271

1

$2.15

In stock

92045

BEARING-BALL,#6003

92045-1248

1

$54.35

In stock

92049

SEAL-OIL

92049-1484

1
Out of stock

92055

RING-O,70.6X2.4

92055-1366

1

$29.82

In stock

92072

BAND

92072-1436

1

$1.86

In stock

92081

SPRING,BRUSH

92081-1759

1

$7.88

In stock

92093

SEAL,RING

92093-1587

1

$19.25

In stock

92093A

SEAL,RING

92093-1588

1

$19.25

In stock

92151

SCREW,4X6

92151-1245

1

$2.19

In stock

92153

BOLT,M8X65

92153-1111

1
Out of stock

92153A

BOLT

92153-1241

1
Out of stock

92153B

BOLT

92153-1242

1
Out of stock

92153C

BOLT

92153-1243

1
Out of stock
