2005 Kawasaki ZZR1200 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

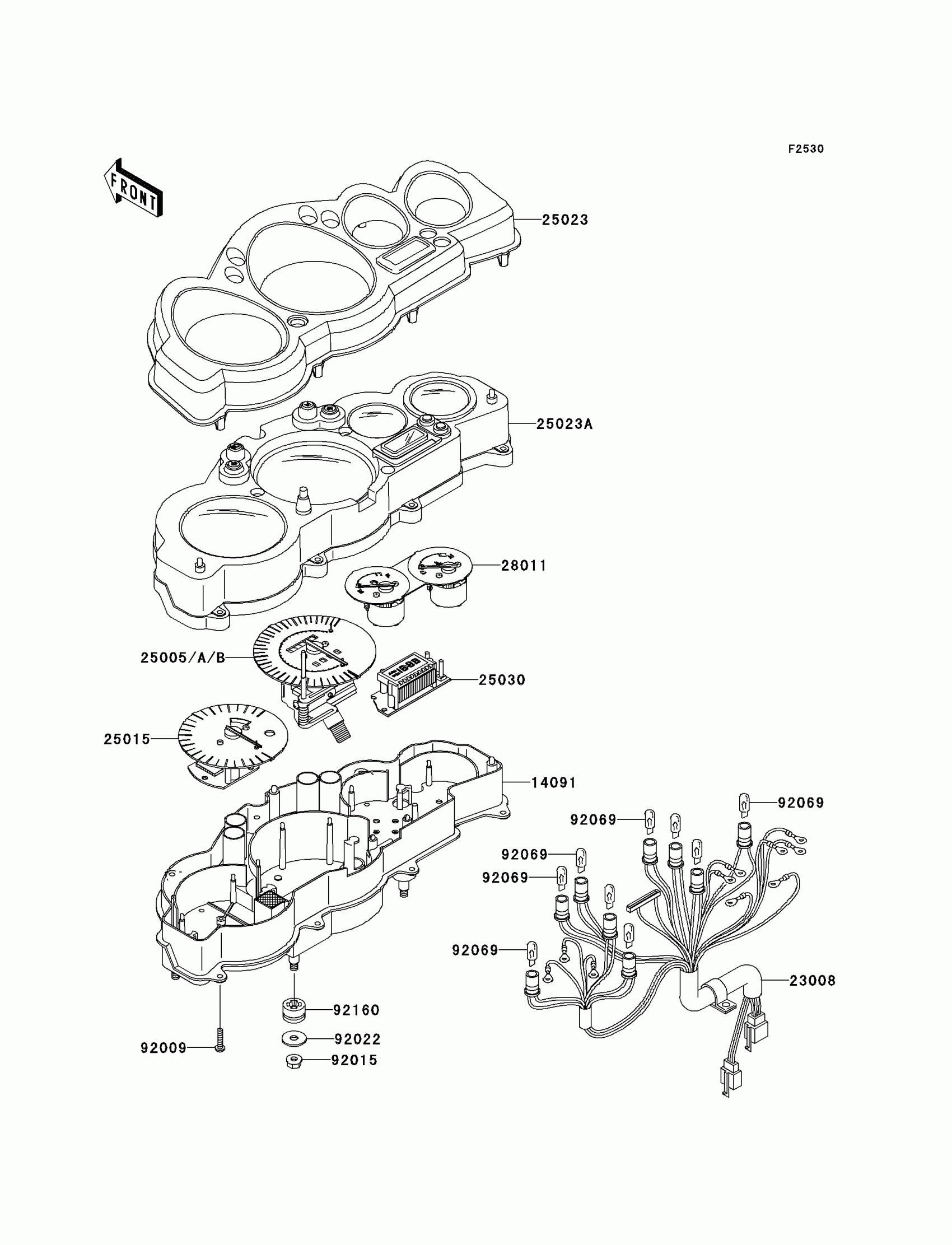

2005 Kawasaki ZZR1200 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER HOUSING

14091-1487

1

$255.47

In stock

23008

SOCKET-ASSY,METER

23008-1670

1

$162.80

In stock

25015

1

$597.86

In stock

25023

1

$230.22

In stock

25023A

COVER-METER CASE

25023-1266

1

$191.73

In stock

25030

CLOCK,DEGITAL

25030-1004

1

$561.67

In stock

28011

METER,FUEL&TEMP

28011-1242

1

$237.81

In stock

92009

SCREW,4X18

92009-1995

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92022

WASHER,6.5X20X1.6

92022-1557

1

$1.25

In stock

92069

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92160

DAMPER

92160-1461

1

$7.39

In stock

25005

SPEEDOMETER,MPH

25005-0002

1

$561.19

In stock

25005A

SPEEDOMETER,KPH

25005-1734

1
Out of stock
