2005 Kawasaki ZZR1200 Starter Motor Diagram

← All diagrams

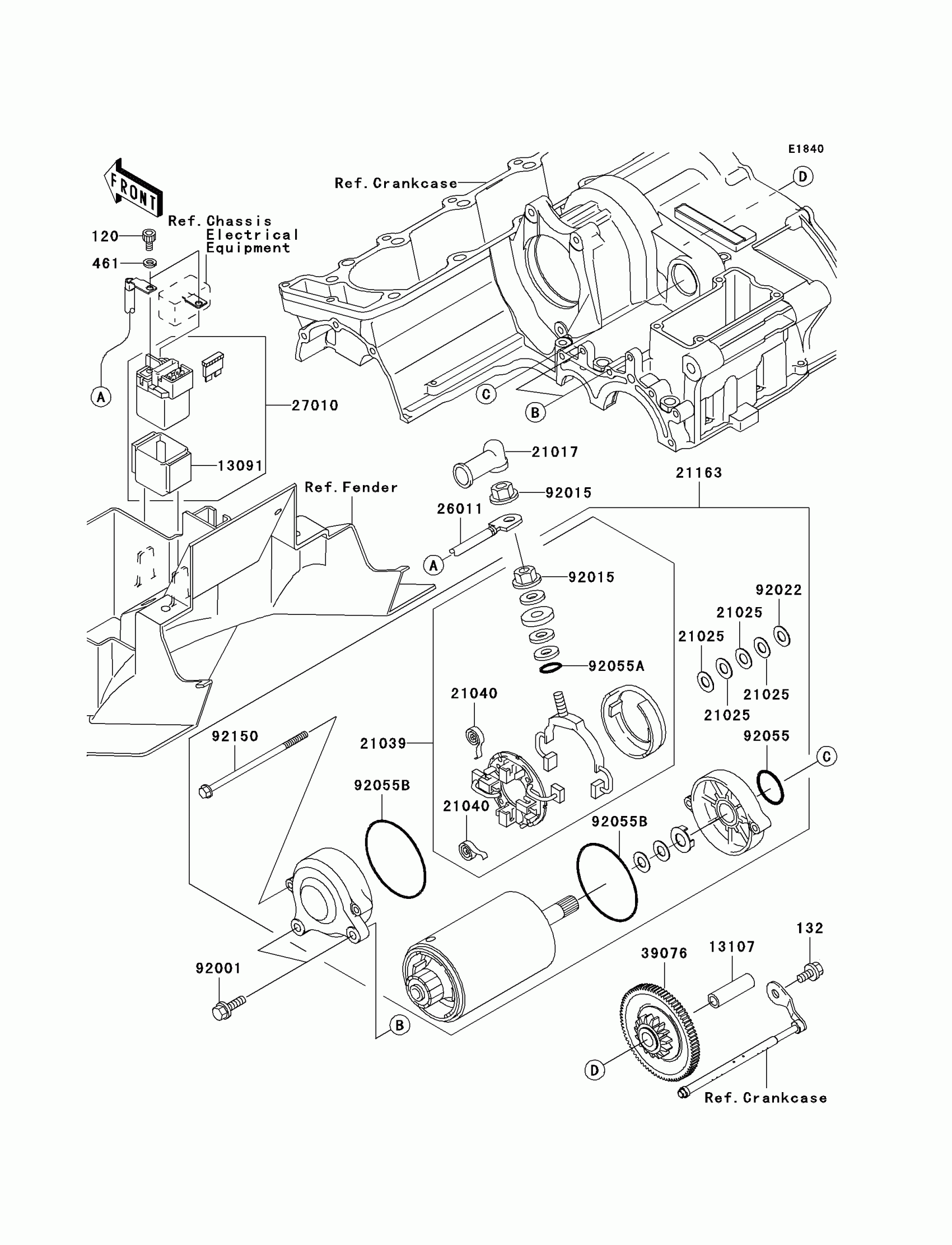

Find the part on the Starter Motor diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X10

120S0510

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock

13091

1

$11.90

In stock

13107

SHAFT,IDLE GEAR

13107-1106

1

$15.76

In stock

21017

1

$7.48

In stock

21025

WASHER,9.1X18X0.2

21025-011

1

$5.42

In stock

21039

BRUSH,CARBON

21039-1060

1

$85.95

In stock

21040

SPRING-BRUSH

21040-1055

1

$8.24

In stock

21163

STARTER-ELECTRIC

21163-1161

1

$546.12

In stock

26011

1

$95.08

In stock

27010

SWITCH,MAGNETIC

27010-1327

1
Out of stock

39076

1

$128.21

In stock

92001

BOLT,6X20

92001-1947

1

$3.46

In stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92055

RING-O

92055-1276

1

$7.86

In stock

92055A

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055B

1

$9.58

In stock

92150

BOLT,5X110

92150-1143

1

$9.68

In stock
