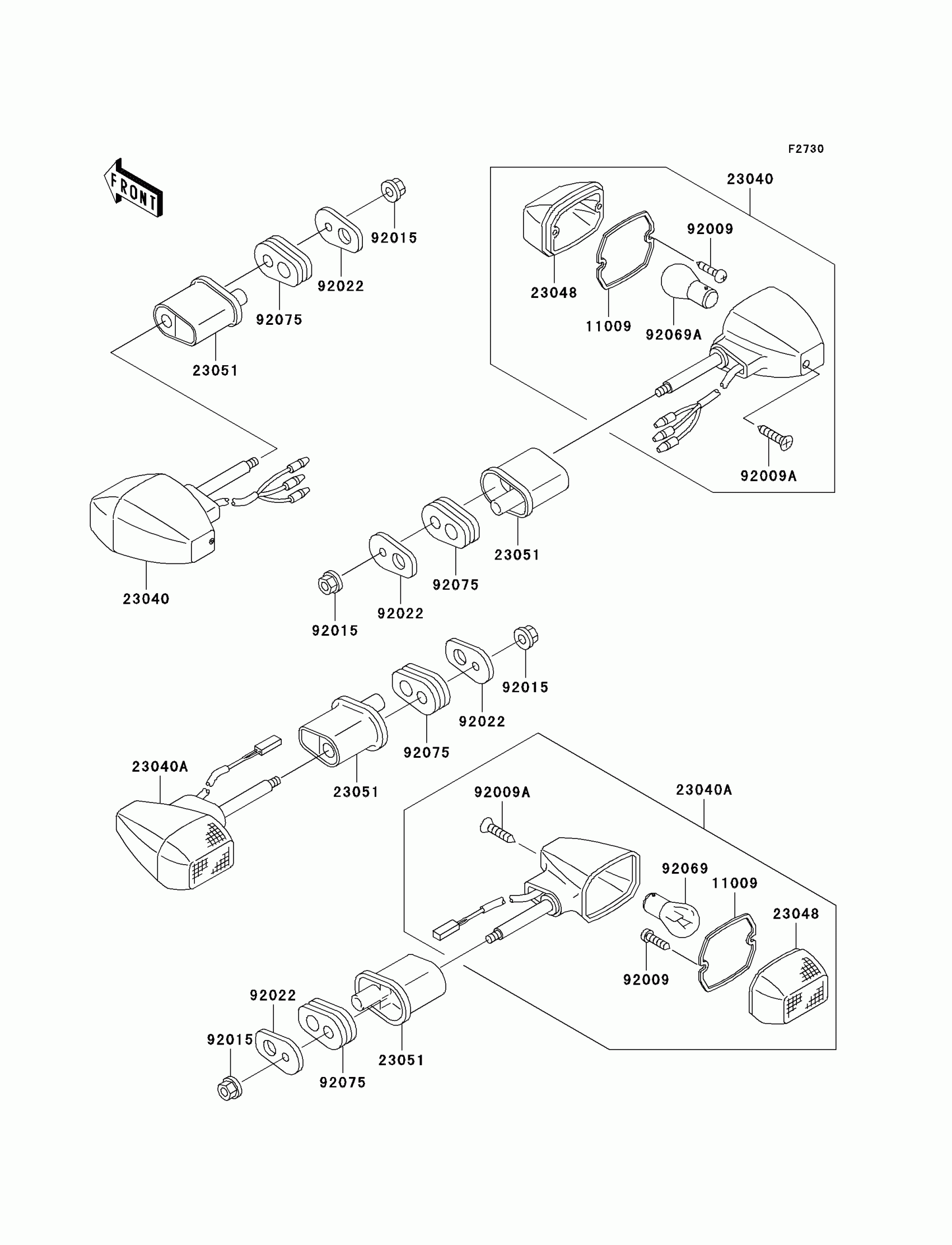

Kawasaki ZRX1200R Turn Signals Diagram

Description

Price

11009

GASKET,SIGNAL LAMP

11009-1402

$4.18

23040

LAMP-SIGNAL,FR

23040-1279

$57.53

23040A

LAMP-SIGNAL,RR

23040-1285

Unavailable

23048

LENS-SIGNAL LAMP

23048-1054

$7.96

23051

BRACKET-SIGNAL LAMP

23051-1248

$8.70

92009

SCREW,TAPPING,3X16

92009-1115

$1.30

92009A

SCREW,TAPPING,4X20

92009-1304

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,SIGNAL LAMP

92022-1672

$4.24

92069

BULB,12V 32CP(23W)

92069-055

$3.95

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$7.39

92075

DAMPER,SIGNAL LAMP

92075-1698

$7.30
