2003 Kawasaki ZRX1200R Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

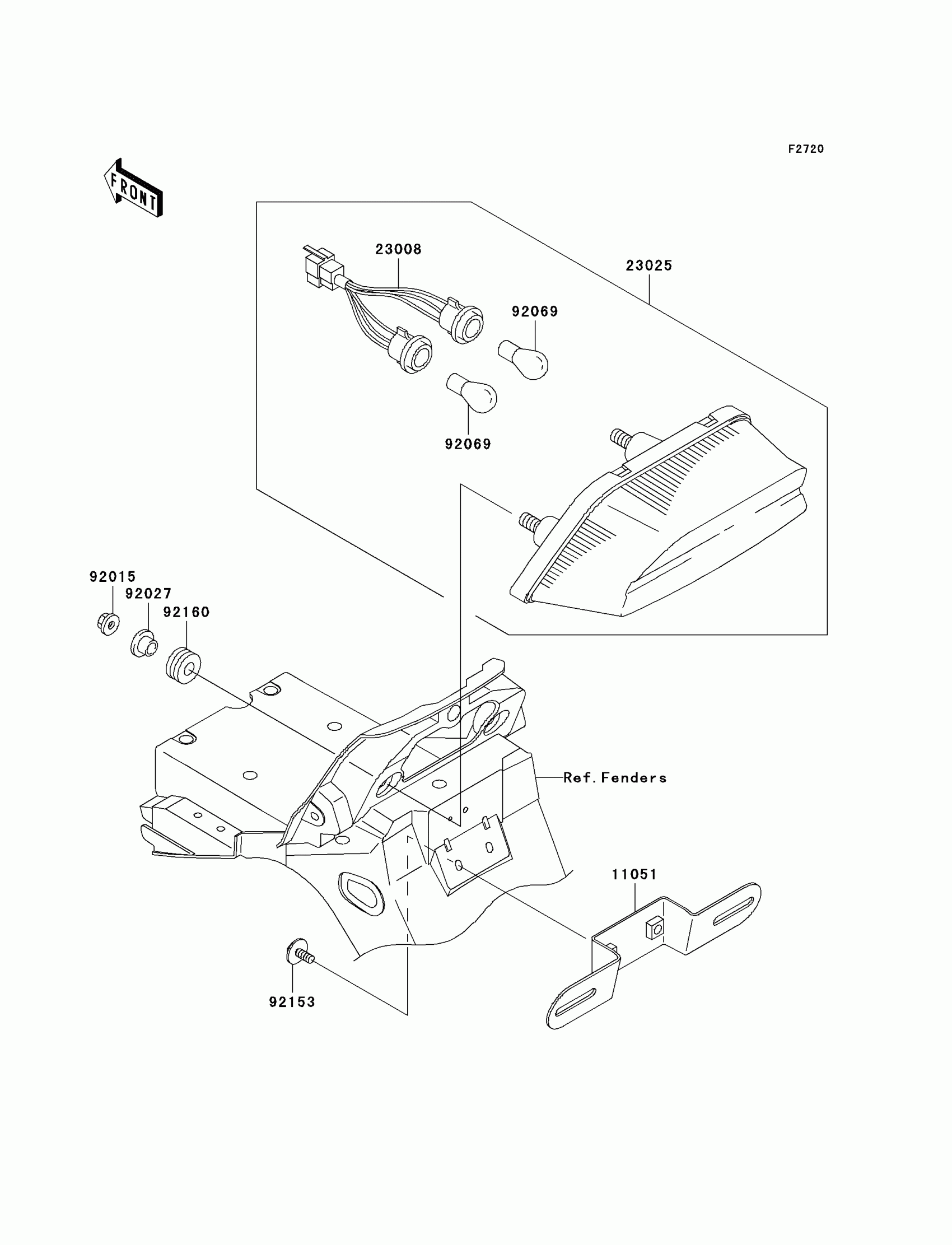

2003 Kawasaki ZRX1200R Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET,LICENSE

11051-1128

1

$19.56

In stock

23008

1

$37.08

In stock

23025

LAMP-TAIL

23025-1316

1

$247.48

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92069

BULB,12V 21/5W

92069-063

1

$7.39

In stock

92150

BOLT,6X16

92150-1909

1

$3.56

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock
