2003 Kawasaki ZRX1200R Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

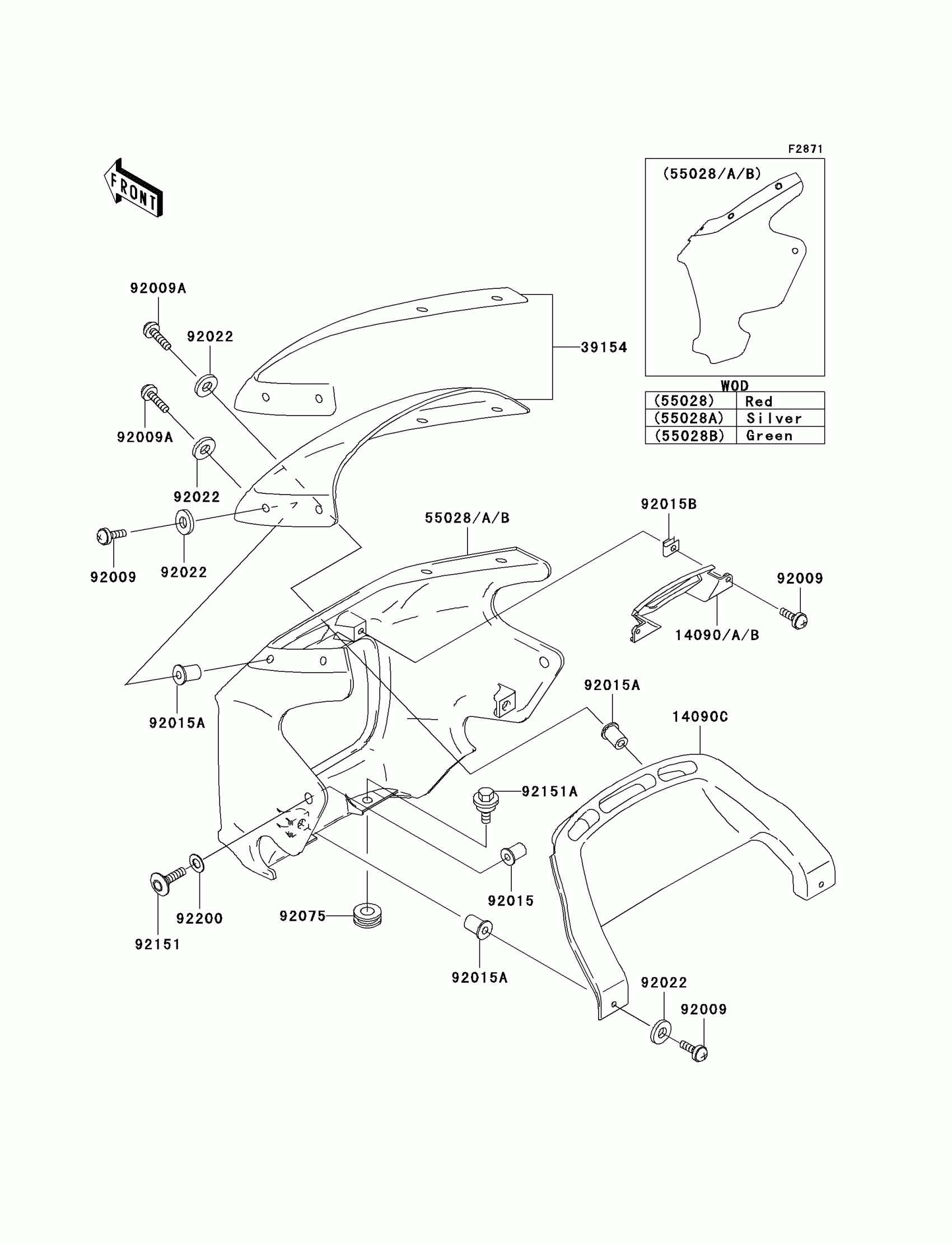

2003 Kawasaki ZRX1200R Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14090E

1

$68.53

In stock

14090F

COVER,INNER COWLING

14090-1776

1

$163.43

In stock

39154

WINDSHIELD

39154-5008

1

$364.24

In stock

55028E

COWLING,UPP,C.L.GREEN

55028-1352-8N

1

$792.37

In stock

92009

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92009A

SCREW,5X20,BLACK

92009-1656

1
Out of stock

92015

NUT

92015-1700

1

$6.82

In stock

92015A

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92015B

NUT,5MM

92015-1798

1

$5.45

In stock

92022

1

$3.12

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92151

BOLT,SOCKET,6X18

92151-1149

1

$6.11

In stock

92151A

BOLT,FLANGED,6MM

92151-1186

1

$6.45

In stock

92200

WASHER,10.3X20X1

92200-1013

1
Out of stock

14090A

1

$56.06

In stock

14090D

1

$73.01

In stock

55028A

COWLING,UPP,C.L.BLUE

55028-1352-E1

1

$732.24

In stock

55028D

COWLING,UPP,G.SILVER

55028-1352-474

1
Out of stock
