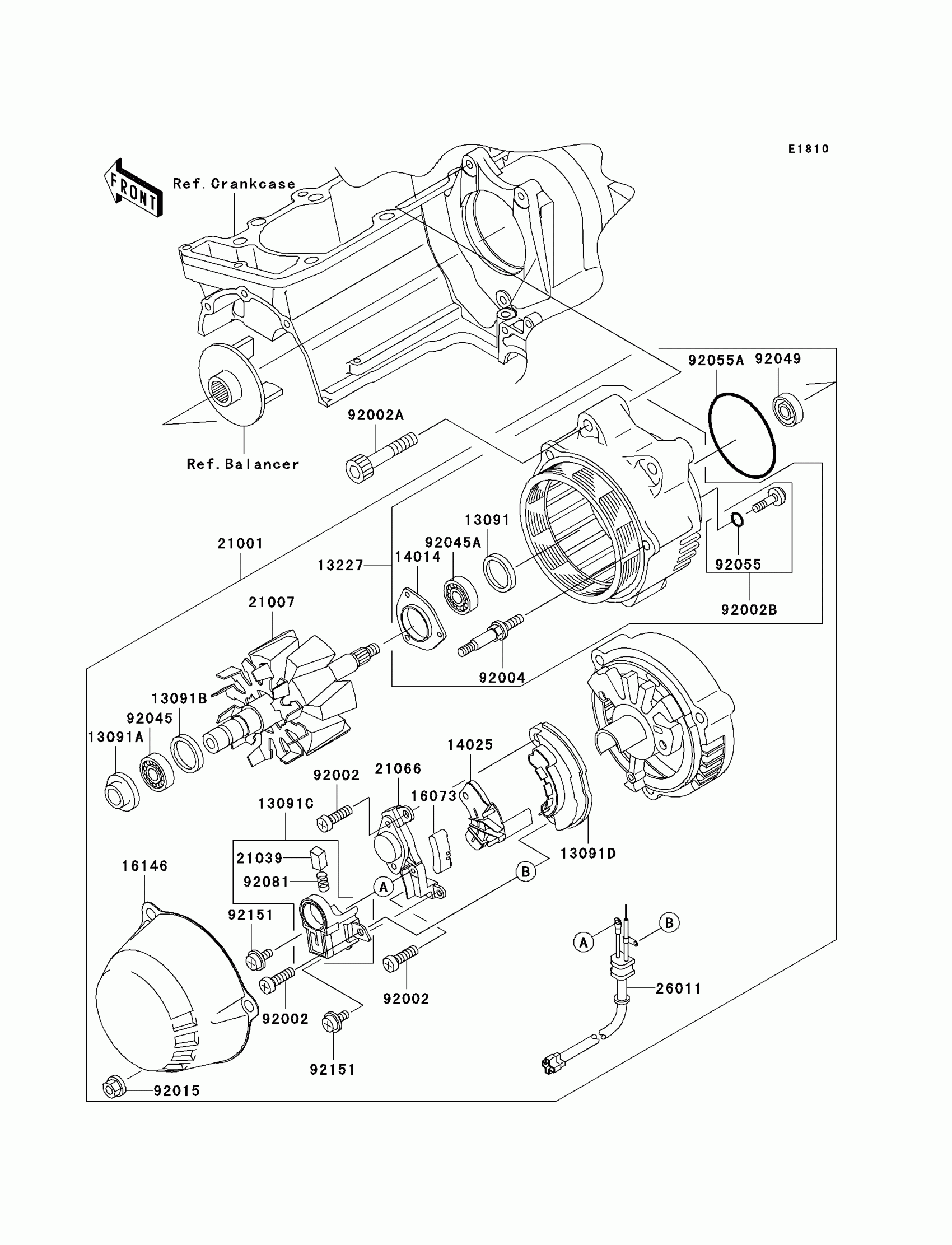

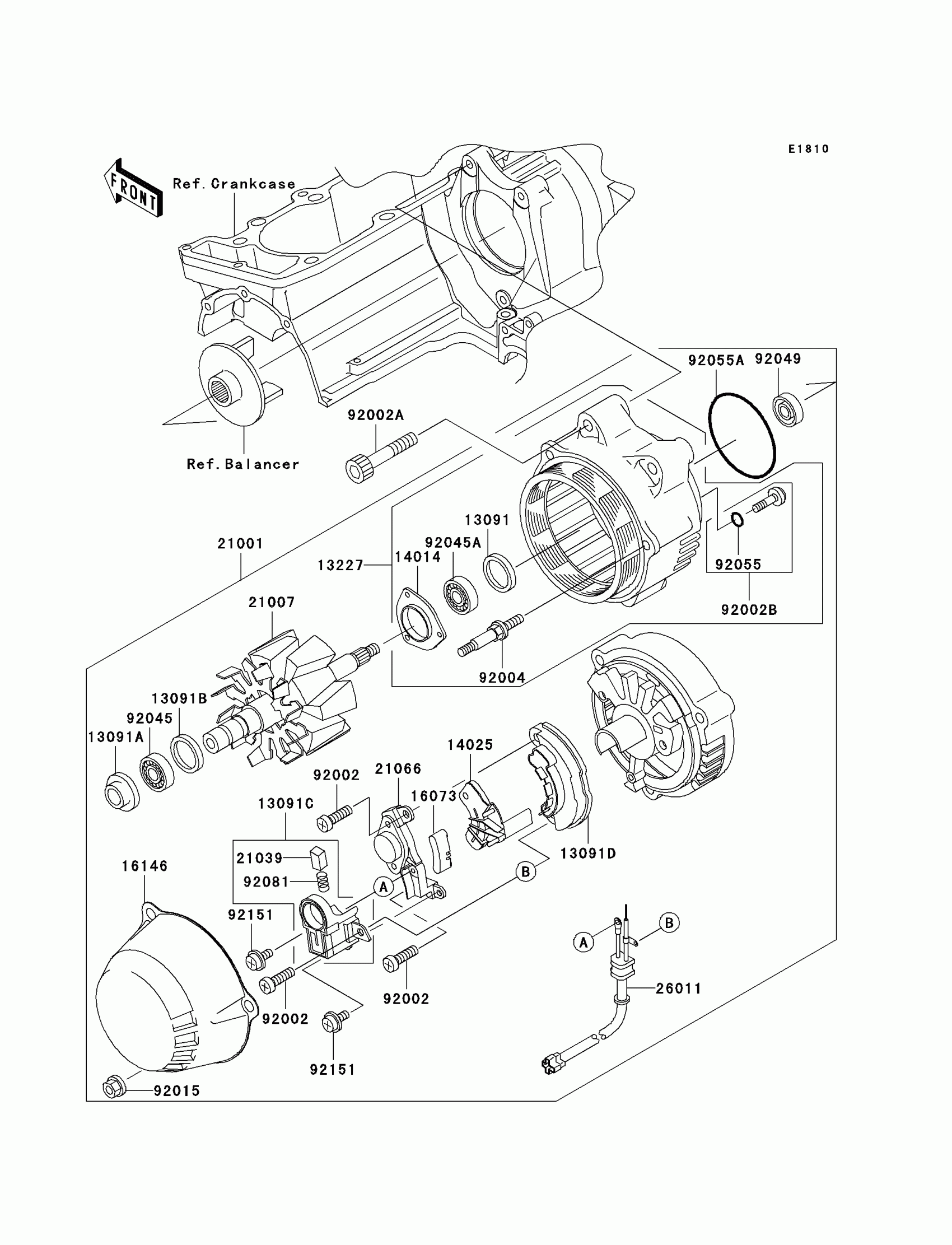

Kawasaki ZRX1200R Generator Diagram

#

Description
Price

13091

HOLDER,BEARING

13091-1326

$13.64

13091A

HOLDER,COVER

13091-1327

$18.17

13091B

HOLDER,BEARING

13091-1328

$12.90

13091C

HOLDER,BRUSH

13091-1465

$113.58

13091D

RECTIFIER

13091-1466

$522.25

13227

HOUSING,GENERATOR

13227-1127

$726.17

14014

PLATE-POSITION

14014-1065

$20.42

14025

COVER,RECTIFIER

14025-1942

$10.61

16073

INSULATOR

16073-1062

$20.58

16146

COVER-ASSY,GENERATOR

16146-1074

$212.78

21001

GENERATOR

21001-1150

$1,399.33

21007

ROTOR,GENERATOR

21007-1196

$567.72

21039

BRUSH,CARBON

21039-1052

$29.01

21066

REGULATOR-VOLTAGE

21066-1076

$424.45

26011

WIRE-LEAD,GENERATOR

26011-1671

$91.51

92002

SCREW,5X17.5

92002-1380

$4.46

92002A

BOLT,SOCKET,8X45

92002-1716

$7.76

92002B

SCREW

92002-1856

$14.49

92004

STUD

92004-1196

$23.20

92015

NUT

92015-1800

Unavailable

92045

BEARING-BALL,#6002NC

92045-1133

$54.40

92045A

BEARING-BALL,#6002

92045-1350

$51.60

92049

SEAL-OIL

92049-1467

$32.73

92055

RING-O,3.5MM

92055-1264

$3.08

92055A

RING-O,70.6X2.4

92055-1366

$29.82

92081

SPRING,BRUSH

92081-1759

$7.88

92151

SCREW,4X6

92151-1245

$2.19
