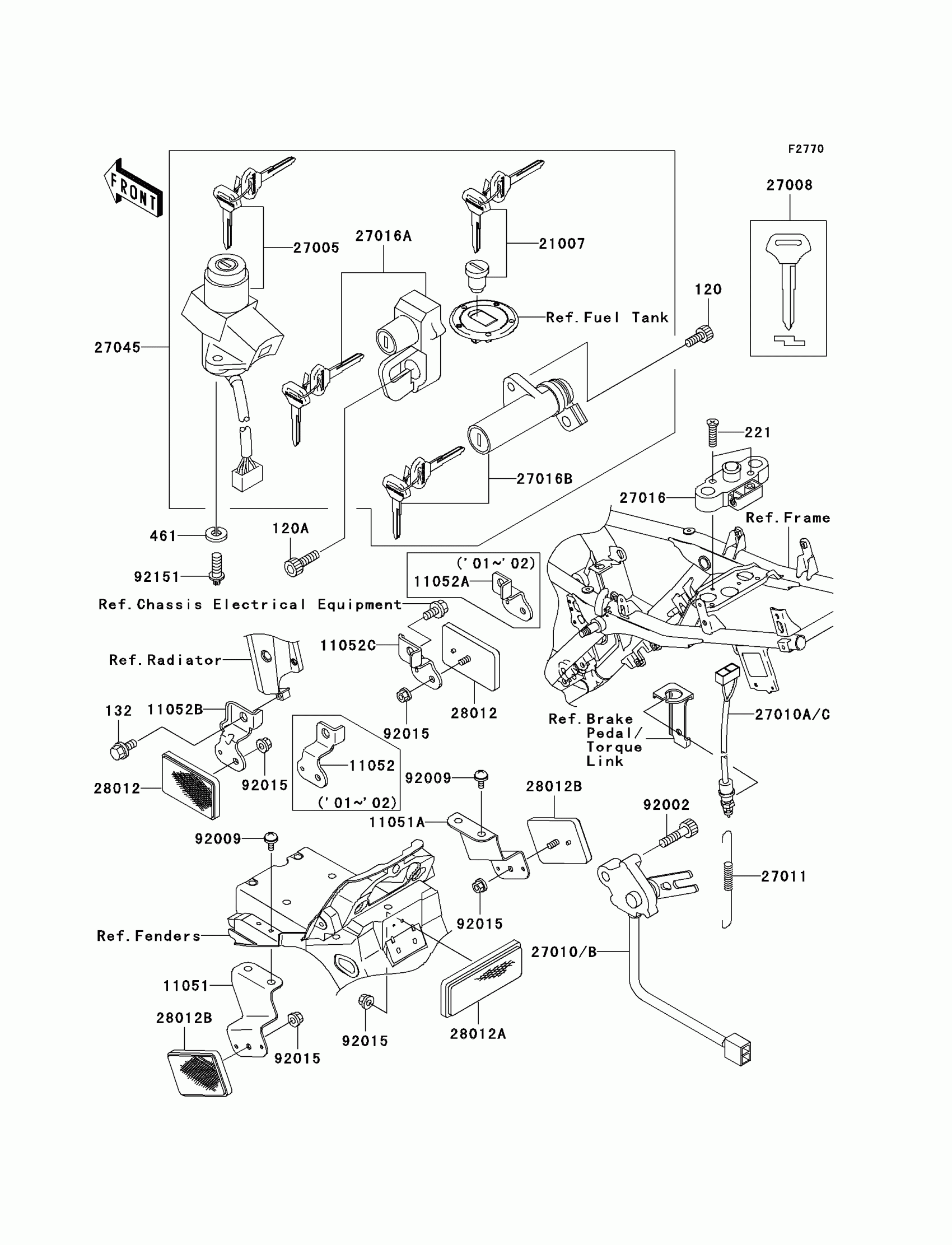

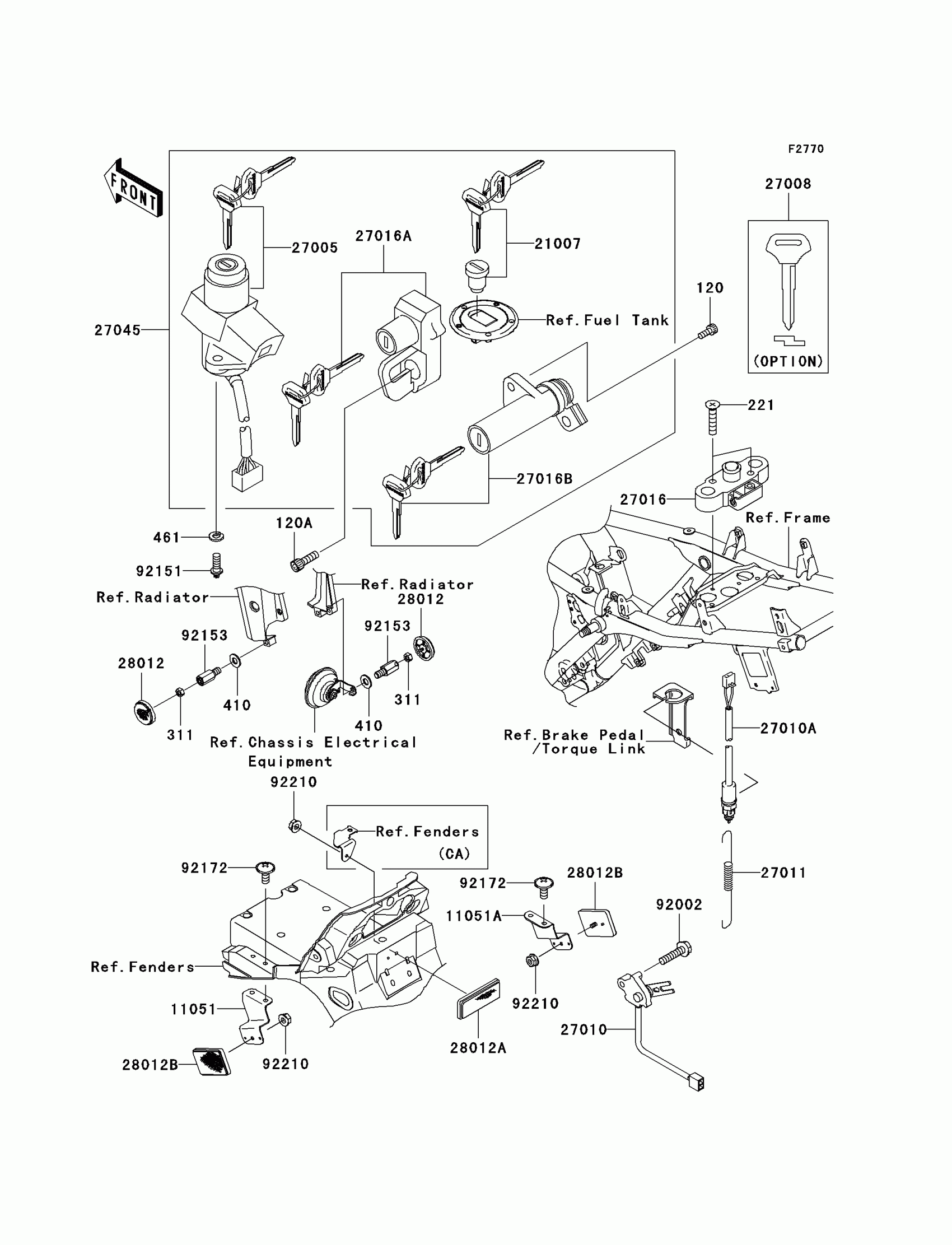

Kawasaki ZRX1200R Ignition Switch/Locks/Reflectors Diagram

Description

Price

120

BOLT-SOCKET,5X12

120S0512

Unavailable

120A

BOLT-SOCKET,6X20

120S0620

Unavailable

132

BOLT-FLANGED-SMALL,8X12

132J0812

Unavailable

221

SCREW-CSK-CROSS

221C0630

Unavailable

461

WASHER-SPRING

461L0600

$0.66

11051

BRACKET,REFLECTOR,RR,SIDE,LH

11051-1131

$16.00

11051A

BRACKET,REFLECTOR,RR,SIDE,RH

11051-1132

$16.00

11052B

BRACKET,REFLECTOR,FR,SIDE,LH

11052-1701

$8.00

11052C

BRACKET,REFLECTOR,FR,SIDE,RH

11052-1702

$8.00

21007

ROTOR,LOCK,TANK CAP

21007-5042

$94.15

27005

SWITCH-ASSY-IGNITION

27005-5120

$202.04

27008

KEY-LOCK,BLANK

27008-1189

$13.33

27010B

SWITCH,SIDE STAND

27010-1465

$59.97

27010C

SWITCH,REAR BRAKE

27010-1479

$26.58

27011

SPRING,BRAKE LAMP SWITCH

27011-017

$9.73

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

$86.38

27016A

LOCK-ASSY,HELMET

27016-5249

Unavailable

27016B

LOCK-ASSY,SEAT

27016-5250

$85.59

27045

SWITCH-ASSY

27045-5142

$456.87

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

28012B

REFLECTOR-REFLEX

28012-1088

$18.15

92002

BOLT,FLANGED,6X25

92002-1582

$4.17

92009

SCREW,6X14

92009-1288

$2.99

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92151

BOLT,TORX,6X16

92151-1911

$1.85
