2024 Kawasaki Z e-1 ABS Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

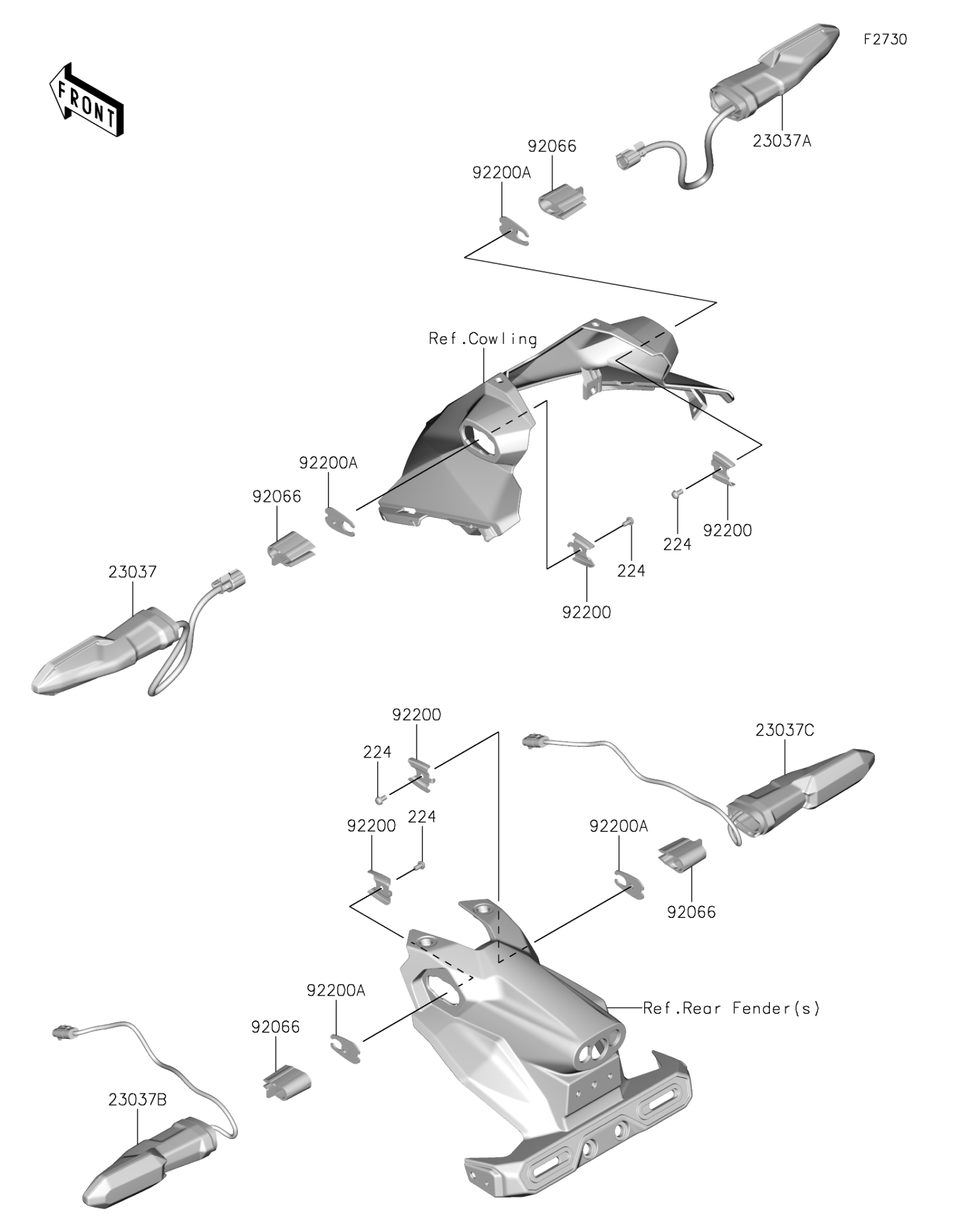

2024 Kawasaki Z e-1 ABS Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23037

1

$127.67

In stock

23037A

1

$127.67

In stock

23037B

1

$60.62

In stock

23037C

1

$60.62

In stock

92066

PLUG,SIGNAL LAMP

92066-0919

1

$8.66

In stock

92200

WASHER

92200-0855

1
Out of stock

92200A

WASHER

92200-2268

1

$4.71

In stock

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock
