2024 Kawasaki Z e-1 ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

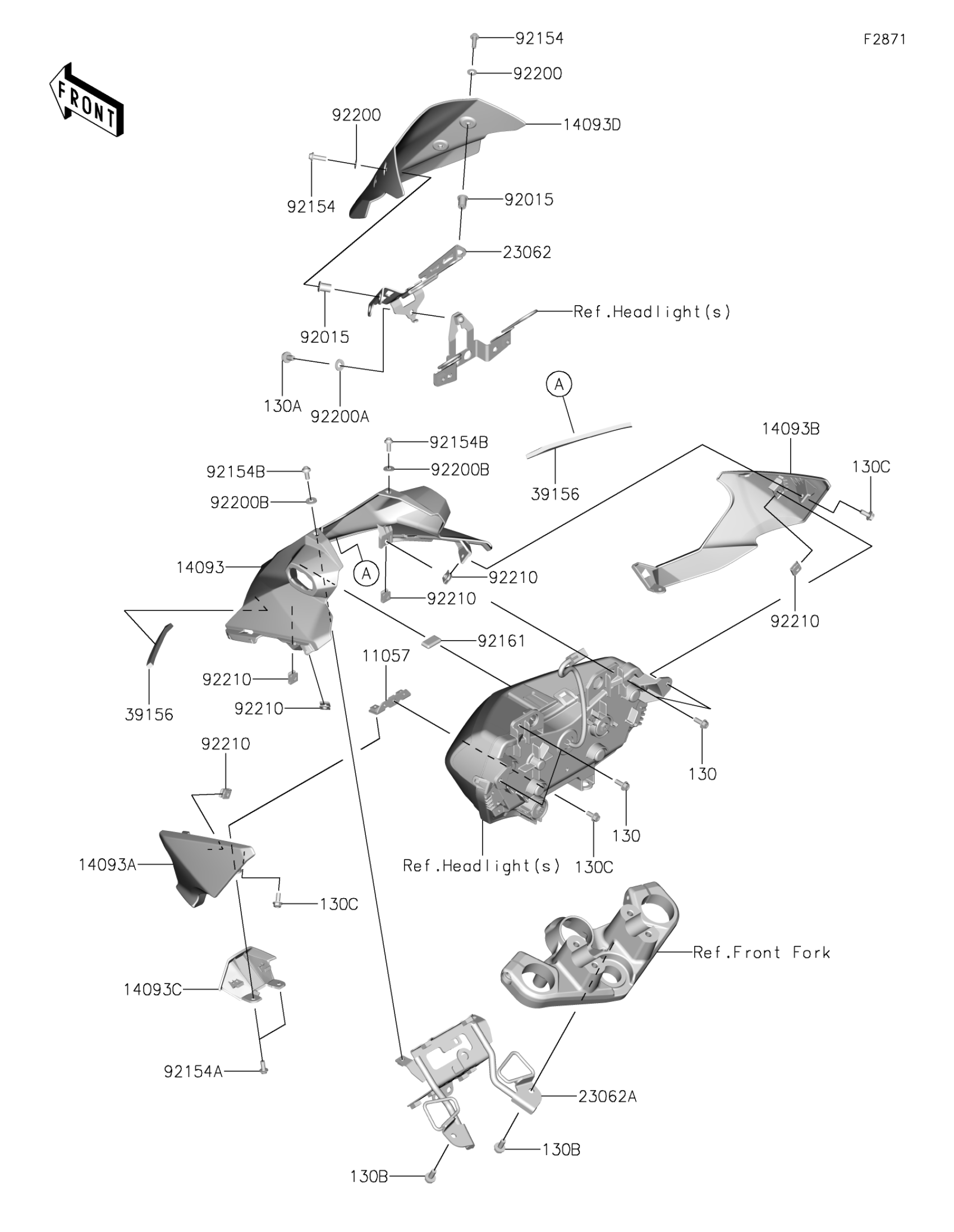

2024 Kawasaki Z e-1 ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$3.51

In stock

14093

COVER,HEAD LAMP,UPP

14093-0739

1

$93.13

In stock

14093A

1

$68.63

In stock

14093B

1

$68.63

In stock

14093C

COVER,HEAD LAMP,LWR

14093-0742

1

$17.85

In stock

14093D

COVER,METER

14093-0743

1

$105.43

In stock

23062

1

$23.14

In stock

23062A

BRACKET-COMP,METER

23062-1191

1

$61.14

In stock

39156

PAD,7X130X5

39156-2296

1

$1.17

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92154

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92154A

BOLT,SOCKET,5X12

92154-0917

1

$3.74

In stock

92154B

BOLT,SOCKET,5X12

92154-1421

1

$0.93

In stock

92161

DAMPER,12X23

92161-1367

1

$1.10

In stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,6.5X14X1.2

92200-0964

1
Out of stock

92200B

WASHER,5.3X13X1.2

92200-2211

1

$0.69

In stock

92210

NUT

92210-0571

1
Out of stock

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock

130A

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130B

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130C

BOLT-FLANGED,5X12

130BB0512

1

$1.64

In stock
