2024 Kawasaki Z e-1 ABS Harness Diagram

← All diagrams

Find the part on the Harness diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

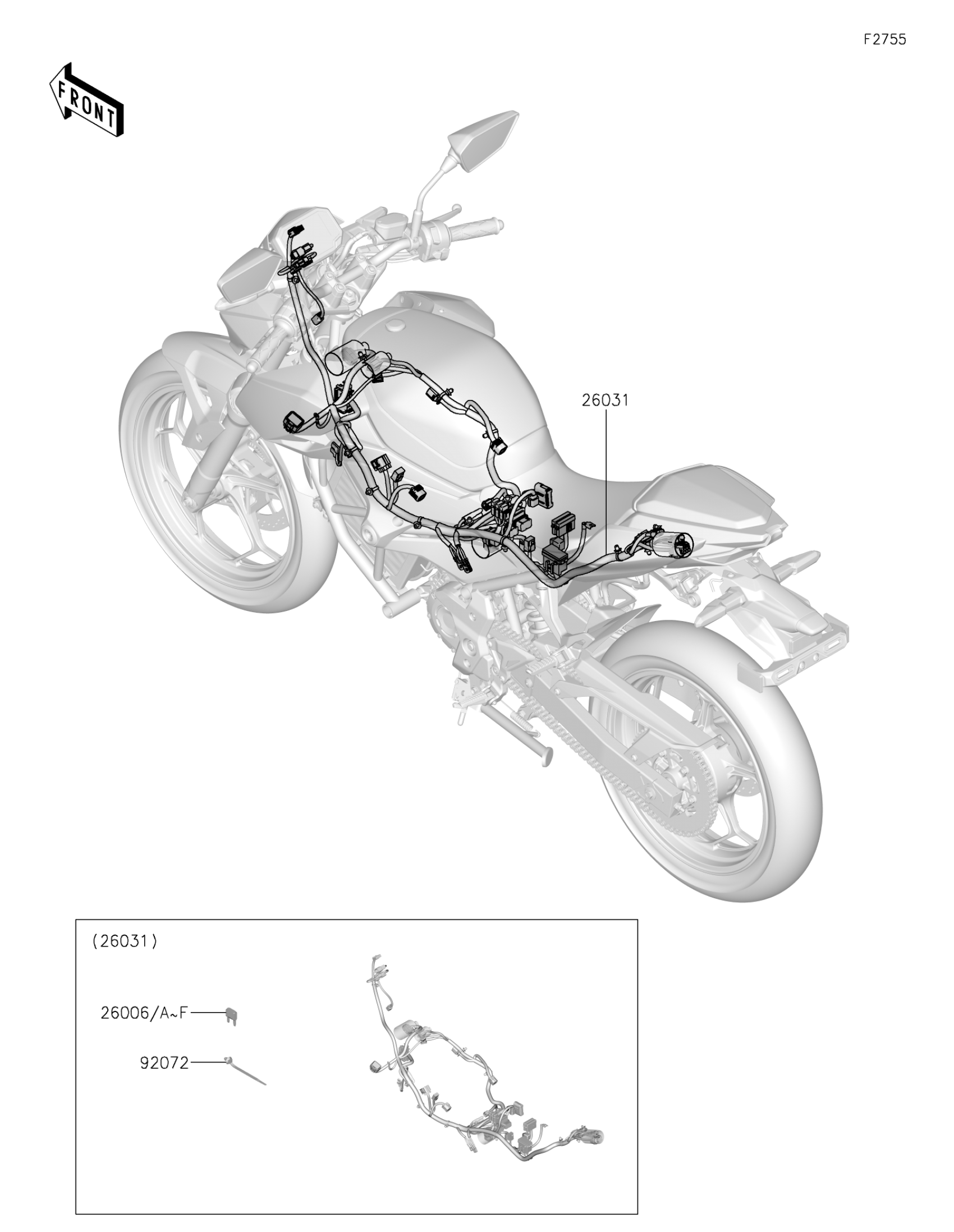

2024 Kawasaki Z e-1 ABS Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26006

1

$5.34

In stock

26006A

1

$4.17

In stock

26006B

1

$4.17

In stock

26006C

1

$4.17

In stock

26006D

1

$3.50

In stock

26006E

1

$3.87

In stock

26006F

1

$4.32

In stock

26031

HARNESS,MAIN

26031-4211

1

$1,093.04

In stock

92072

—

$2.97

In stock
