2024 Kawasaki Z e-1 ABS Chassis Electrical Equipment-3 Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment-3 diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

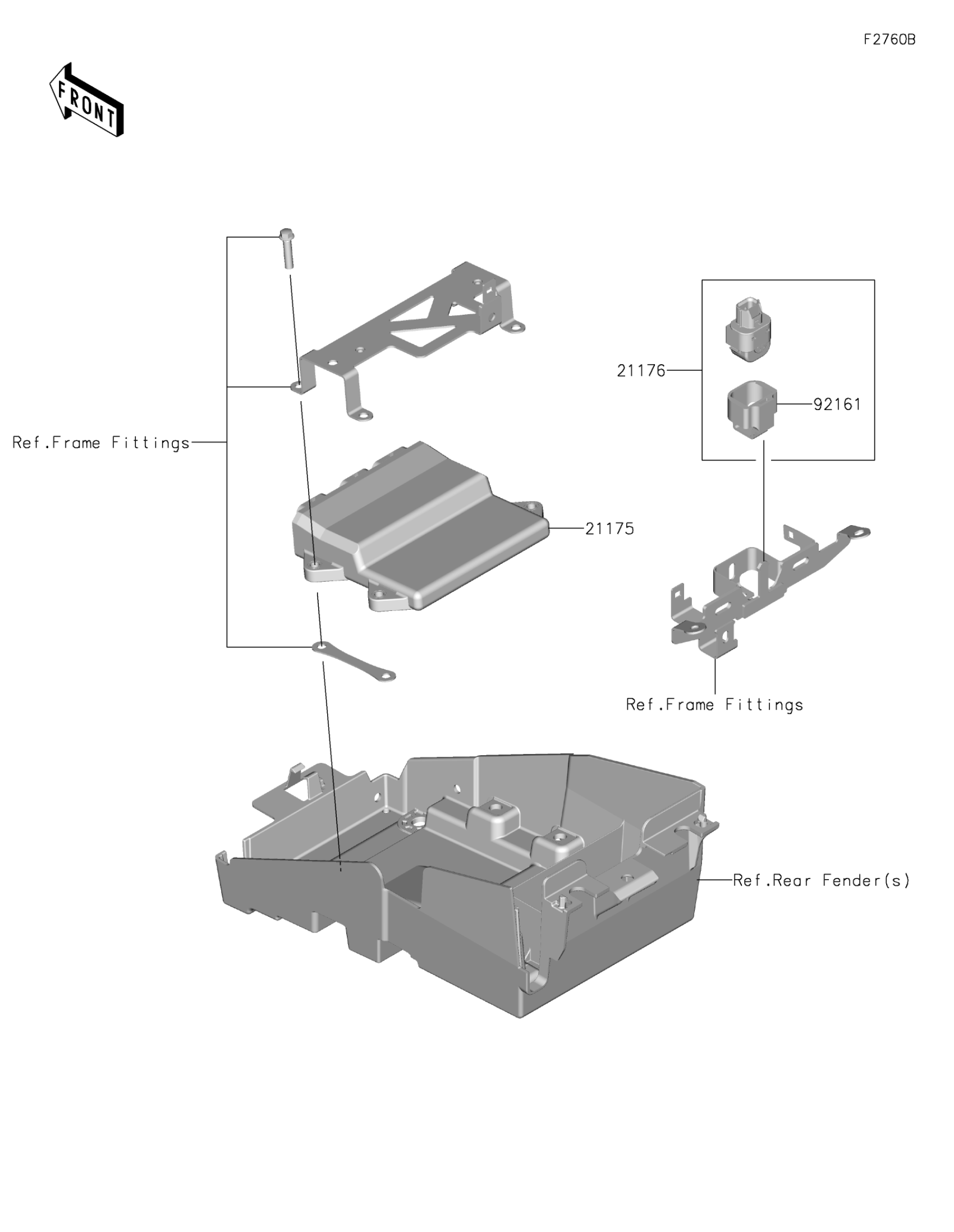

2024 Kawasaki Z e-1 ABS Chassis Electrical Equipment-3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

1

$1,148.53

In stock

21176

SENSOR,VEHICLE-DOWN

21176-0704

1

$84.36

In stock

92161

DAMPER

92161-0951

1

$14.14

In stock
← Chassis Electrical Equipment-2 Electric Motor →
