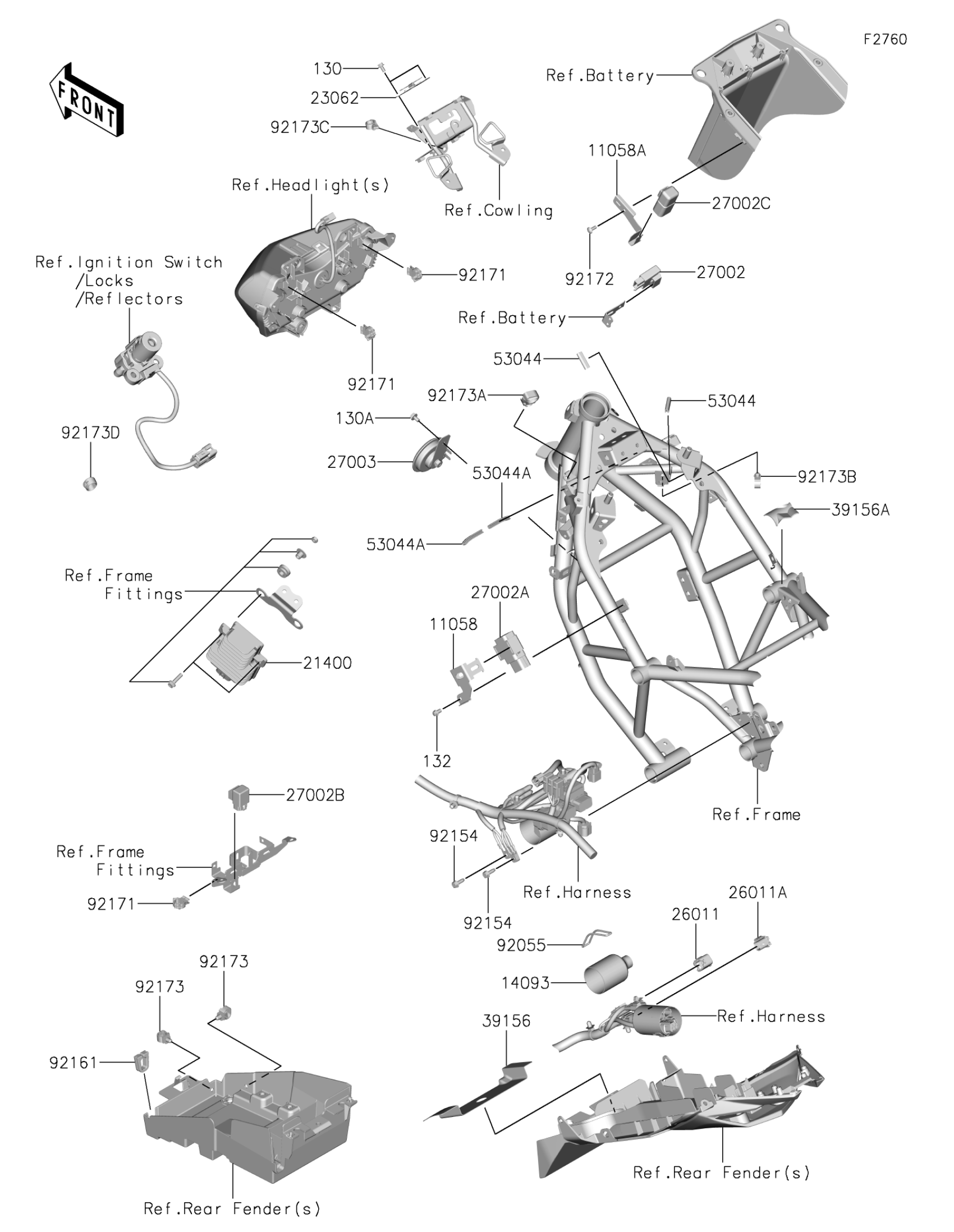

Find the part on the Chassis Electrical Equipment-1 diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z e-1 ABS Chassis Electrical Equipment-1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,RELAY

11058-0772

1

$5.39

In stock

11058A

BRACKET,RELAY

11058-0967

1

$8.24

In stock

14093

COVER,HARNESS

14093-0720

1

$4.07

In stock

21400

1

$354.88

In stock

23062

1

$2.71

In stock

26011

1

$13.42

In stock

26011A

1

$33.83

In stock

27002

1

$84.96

In stock

27002A

RELAY-ASSY

27002-0060

1

$93.67

In stock

27002B

RELAY-ASSY

27002-1062

1

$41.21

In stock

27002C

RELAY-ASSY

27002-1088

1

$38.14

In stock

27003

HORN

27003-0111

1

$69.50

In stock

39156

PAD,60X250X1

39156-2219

1

$10.20

In stock

39156A

PAD,50X50X2

39156-2235

1
Out of stock

53044

TRIM,9X6.5X30

53044-0632

1
Out of stock

53044A

TRIM,45MM

53044-0644

1

$4.92

In stock

92055

RING-O,50MM

92055-0954

1

$3.53

In stock

92154

BOLT,FLANGED,6X18

92154-4008

1

$1.22

In stock

92161

DAMPER,RR FENDER

92161-1984

1

$0.88

In stock

92171

CLAMP,EDGE CLIP

92171-1722

1

$7.90

In stock

92172

SCREW,TAPPING,5X14

92172-0265

1

$1.20

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92173A

CLAMP

92173-0861

1

$2.44

In stock

92173B

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92173C

CLAMP

92173-1951

1

$1.27

In stock

92173D

CLAMP

92173-2199

1

$1.32

In stock

130

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock

130A

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

132

1

$1.47

In stock
