2024 Kawasaki Z e-1 ABS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

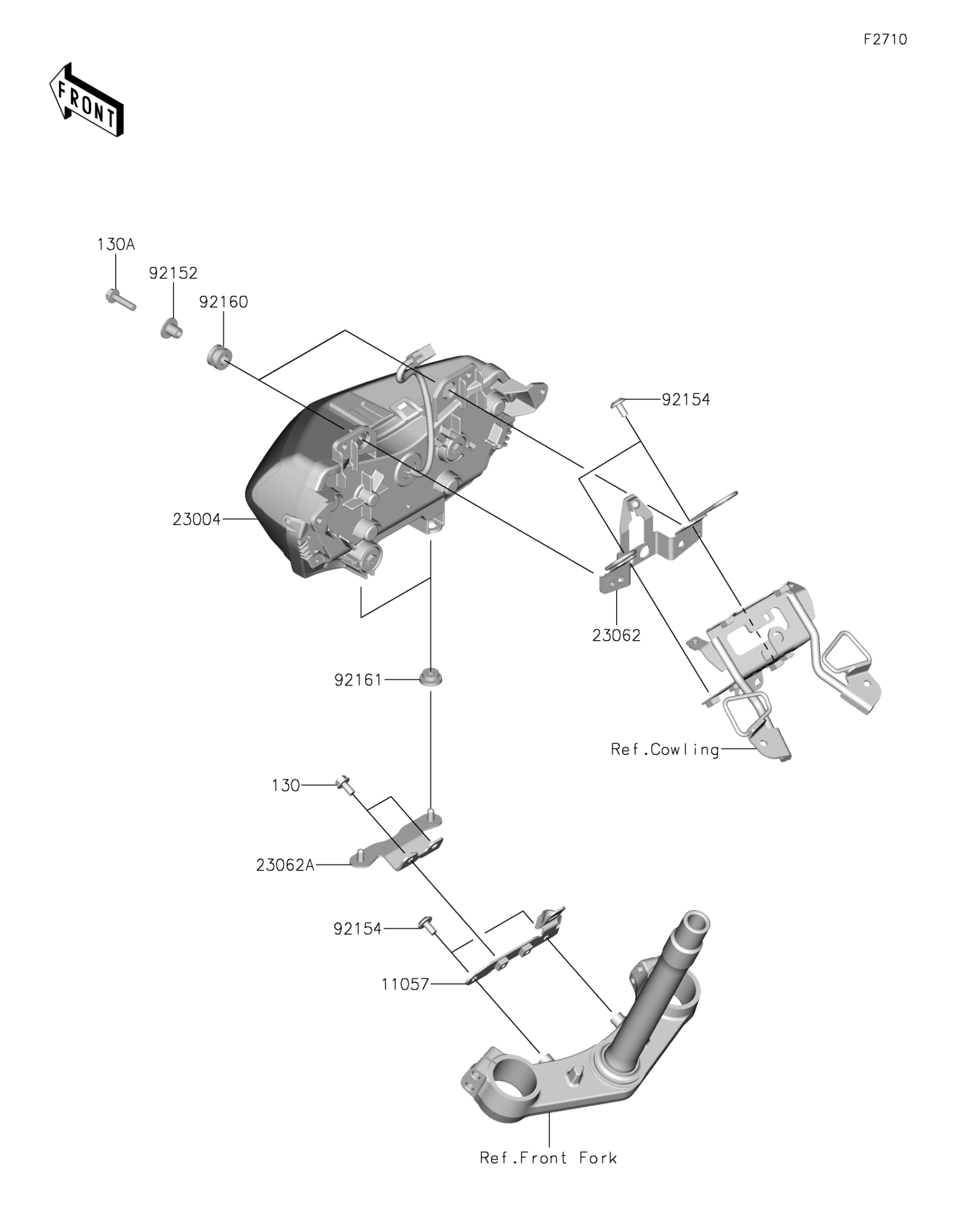

2024 Kawasaki Z e-1 ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HEAD LAMP

11057-1962

1

$7.78

In stock

23004

LAMP-HEAD,LED

23004-0414

1

$1,249.46

In stock

23062

1

$16.68

In stock

23062A

1

$10.64

In stock

92152

COLLAR,6.5X10X13.1

92152-0332

1

$4.95

In stock

92154

BOLT,SOCKET,6X12

92154-2355

1

$1.66

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-2252

1

$1.93

In stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

130A

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
