2024 Kawasaki Z e-1 ABS Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

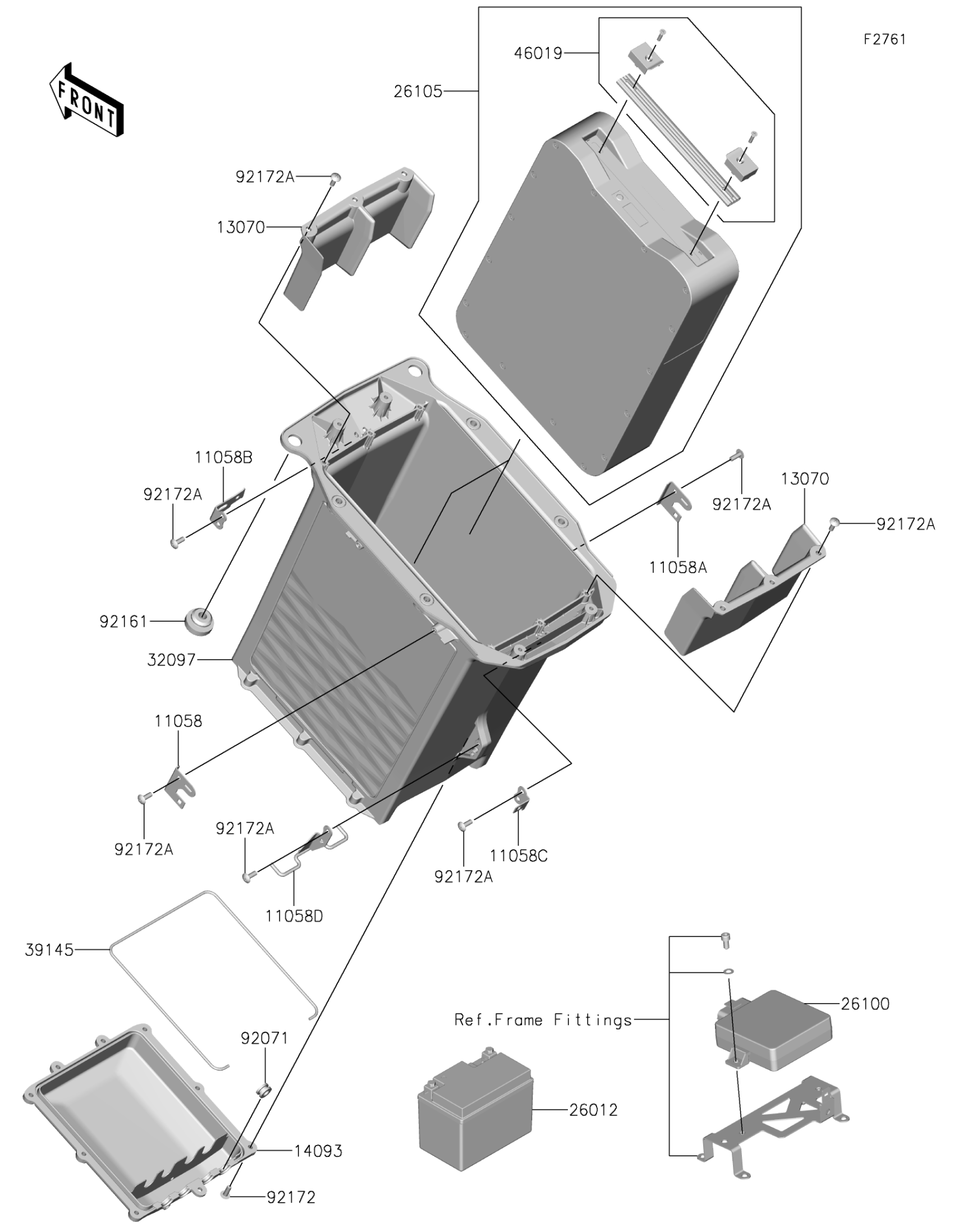

2024 Kawasaki Z e-1 ABS Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET

11058-0838

1

$4.31

In stock

11058A

BRACKET

11058-0839

1

$4.31

In stock

11058B

BRACKET

11058-0909

1

$4.31

In stock

11058C

BRACKET

11058-0910

1

$1.80

In stock

11058D

BRACKET

11058-0963

1

$5.02

In stock

13070

GUIDE,BATTERY CASE

13070-1437

1

$29.35

In stock

14093

COVER,BATTERY CASE

14093-1483

1

$43.69

In stock

26012

1

$135.10

In stock

26100

1

$645.27

In stock

26105

PACK-ASSY-BATTERY

26105-0009

1

$3,023.38

In stock

32097

CASE-BATTERY

32097-0570

1

$469.84

In stock

39145

1

$2.46

In stock

46019

GRIP-ASSY,BATTERY

46019-0131

1

$41.76

In stock

92071

GROMMET

92071-1128

1

$4.78

In stock

92161

DAMPER,10X32X17

92161-1980

1

$3.29

In stock

92172

SCREW,TAPPING,5X16

92172-0175

1

$1.53

In stock

92172A

SCREW,TAPPING,5X14

92172-0265

1

$1.20

In stock
