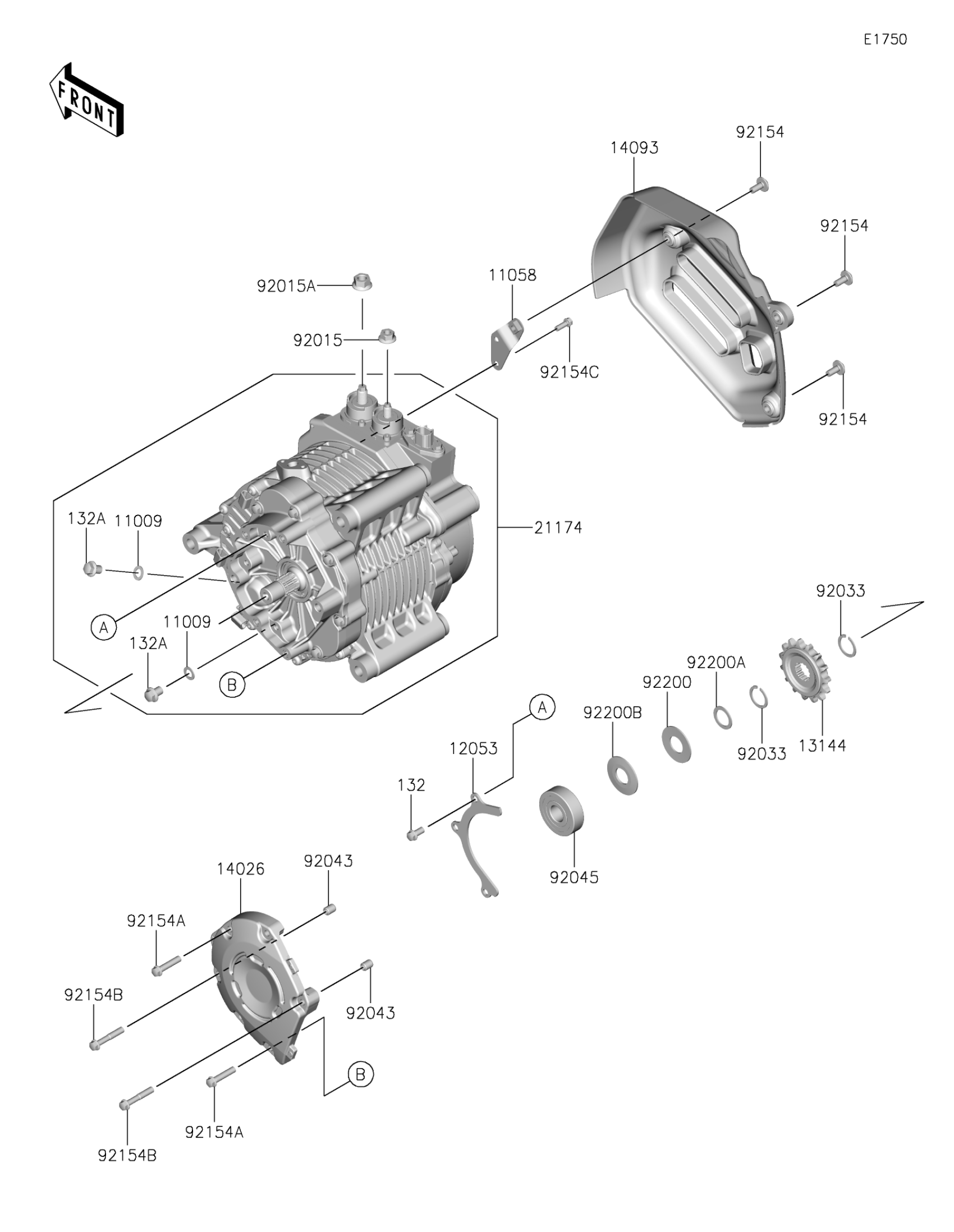

Find the part on the Electric Motor diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z e-1 ABS Electric Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,8.2X14X1.0

11009-1344

1

$2.44

In stock

11058

BRACKET,MOTOR RH

11058-0779

1

$3.24

In stock

12053

GUIDE-CHAIN

12053-0334

1

$5.51

In stock

13144

SPROCKET-OUTPUT,15T

13144-0583

1

$51.67

In stock

14026

COVER-CHAIN

14026-0160

1

$74.37

In stock

14093

COVER,MOTOR RH

14093-1485

1

$49.59

In stock

21174

MOTOR-ELECTRIC

21174-0028

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,10MM

92015-1021

1
Out of stock

92033

RING-SNAP,18MM

92033-029

1

$7.79

In stock

92043

PIN,DOWEL,8X10

92043-1302

1

$0.97

In stock

92045

1

$20.37

In stock

92154

BOLT,SOCKET,6X14

92154-2735

1

$1.47

In stock

92154A

BOLT-FLANGED,6X28

92154-7115

1

$1.68

In stock

92154B

BOLT-FLANGED,6X35

92154-7173

1

$1.85

In stock

92154C

BOLT-FLANGED,5X14

92154-7197

1

$0.85

In stock

92200

1

$4.29

In stock

92200A

1

$2.02

In stock

92200B

1

$7.95

In stock

132

1

$1.12

In stock

132A

1

$2.03

In stock
