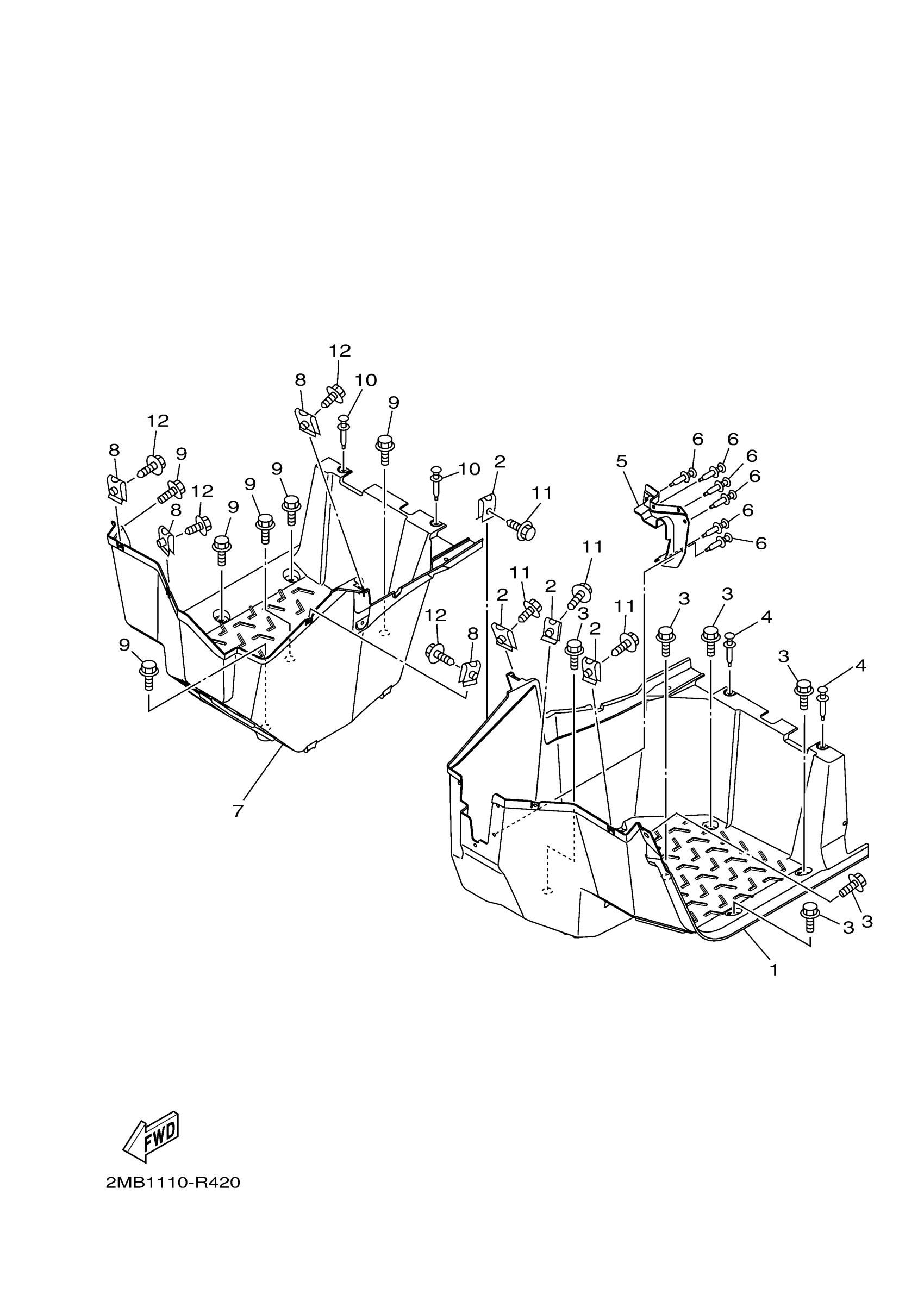

Yamaha YXE70WDBJD (WOLVERINE) B357 2018 STAND FOOTREST Diagram

#

Description

Price

1

FOOTREST 1

2MB-F7411-01-00

$167.11

2

NUT, SPRING

90183-060A6-00

$3.90

3

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

5

COVER, DUST

1XD-F7286-00-00

$7.23

6

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

7

FOOTREST 2

2MB-F7421-01-00

$167.11

8

NUT, SPRING

90183-060A6-00

$3.90

9

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

10

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

BOLT, WITH WASHER

90119-06226-00

$2.12
