2018 Yamaha Wolverine (YXE70WDBJD) Guard 2 Diagram

← All diagrams

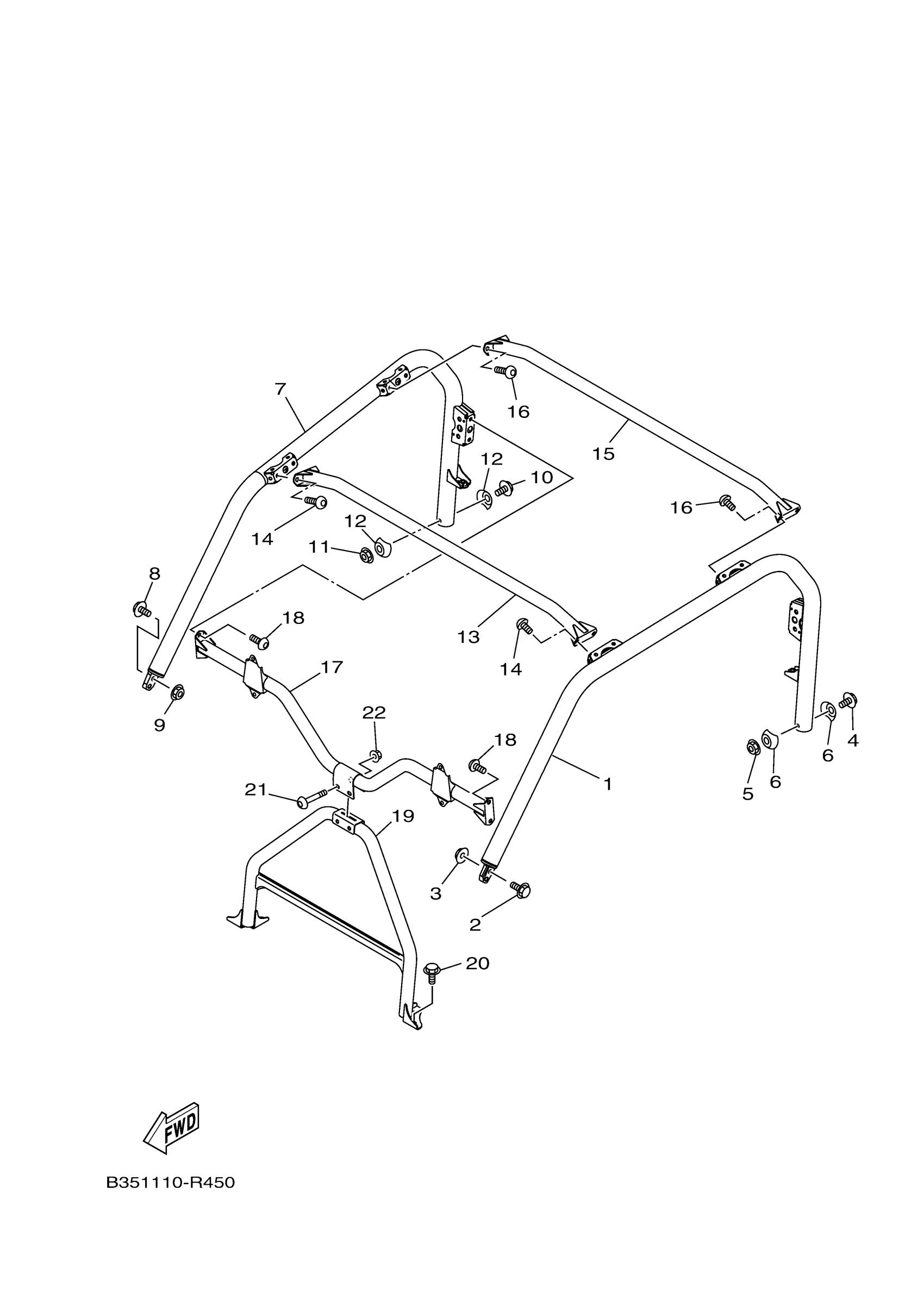

Find the part on the Guard 2 diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Wolverine (YXE70WDBJD) Guard 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SUPPORT, ROOF 3

1XD-K831A-00-00

1

$259.00

In stock

2

BOLT, FLANGE (8V9)

95812-10045-00

1

$3.54

In stock

3

NUT, SELF-LOCKING

90185-10011-00

1

$3.92

In stock

4

BOLT, BUTTON HEAD

92012-10070-00

1

$3.98

In stock

5

NUT, SELF-LOCKING

90185-10011-00

1

$3.92

In stock

6

WASHER 2

1XD-K7526-00-00

1

$4.20

In stock

7

SUPPORT, ROOF 4

1XD-K831E-00-00

1

$233.03

In stock

8

BOLT, FLANGE (8V9)

95812-10045-00

1

$3.54

In stock

9

NUT, SELF-LOCKING

90185-10011-00

1

$3.92

In stock

10

BOLT, BUTTON HEAD

92012-10070-00

1

$3.98

In stock

11

NUT, SELF-LOCKING

90185-10011-00

1

$3.92

In stock

12

WASHER 2

1XD-K7526-00-00

1

$4.20

In stock

13

MEMBER, ROOF FRAME

2MB-K8392-00-00

1
Out of stock

14

BOLT,HEX. SOCKET B

90111-10802-00

1

$2.32

In stock

15

MEMBER, ROOF FRAME

2MB-K8393-00-00

1

$71.25

In stock

16

BOLT,HEX. SOCKET B

90111-10802-00

1

$2.32

In stock

17

ROOF SUPPORT ASSY

B35-K830A-00-00

—

$61.59

In stock

18

BOLT,HEX. SOCKET B

90111-10802-00

1

$2.32

In stock

19

ROOF SUPPORT ASSY 2

2MB-K830B-00-00

1

$120.06

In stock

20

BOLT, FLANGE

95812-10016-00

—

$8.25

In stock

21

BOLT, BUTTON HEAD

92012-10060-00

—

$2.95

In stock

22

NUT, SELF-LOCKING

90185-10011-00

1

$3.92

In stock
