2018 Yamaha Wolverine (YXE70WDBJD) Carrier Diagram

← All diagrams

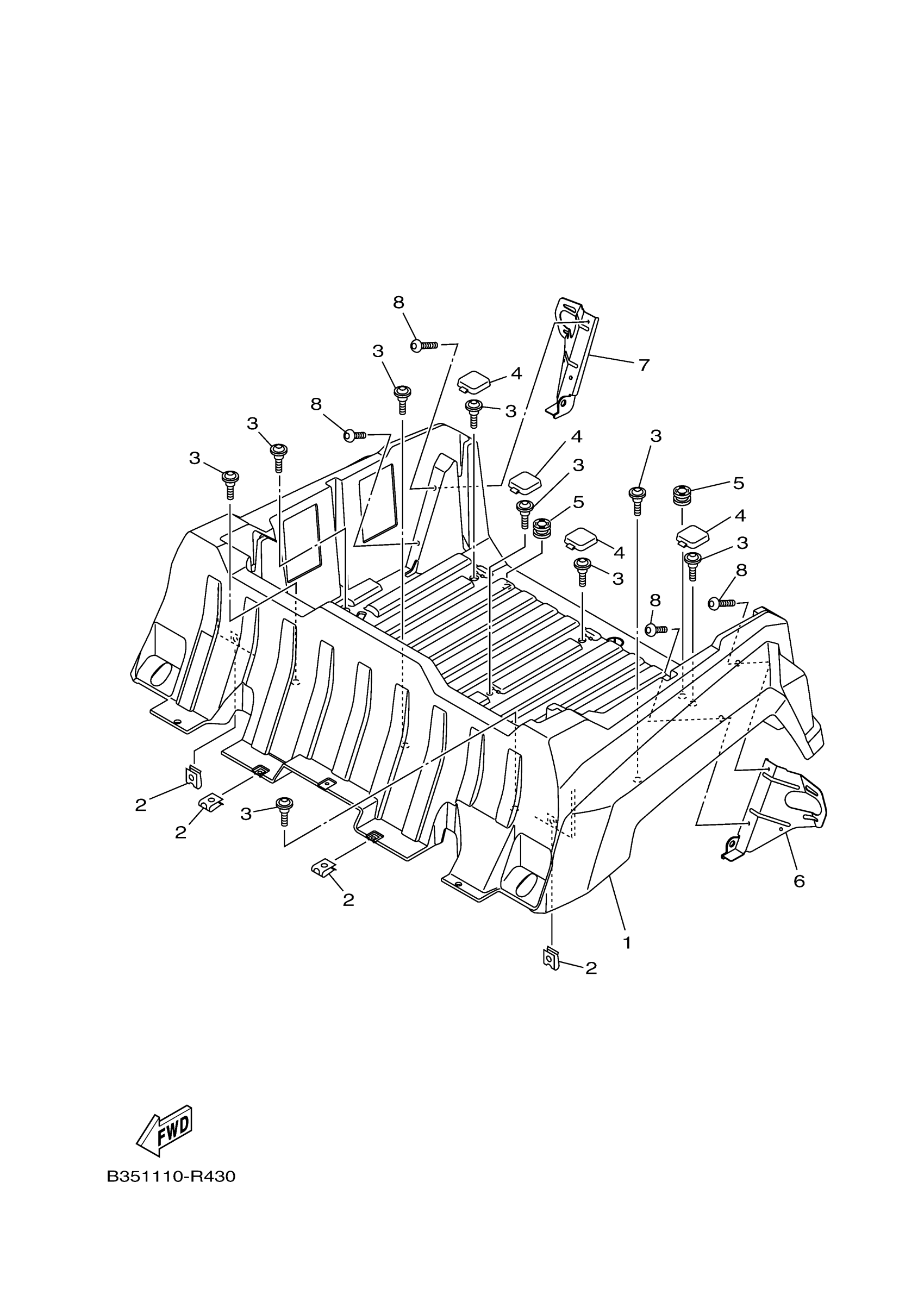

Find the part on the Carrier diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Wolverine (YXE70WDBJD) Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX

2MB-F1171-01-00

1

$883.99

In stock

2

NUT, SPRING

90183-060A6-00

1

$4.17

In stock

3

BOLT

90109-068A5-00

1

$6.08

In stock

4

CAP

2MB-F143A-00-00

1

$1.73

In stock

5

GROMMET

90480-13029-00

1

$4.54

In stock

6

BRACKET, TAIL COVE

2MB-F475U-00-00

1

$18.48

In stock

7

BRACKET, TAIL COVE

2MB-F475V-00-00

1

$13.77

In stock

8

BOLT,HEX. SOCKET BUTTON

90111-06123-00

1

$3.13

In stock
