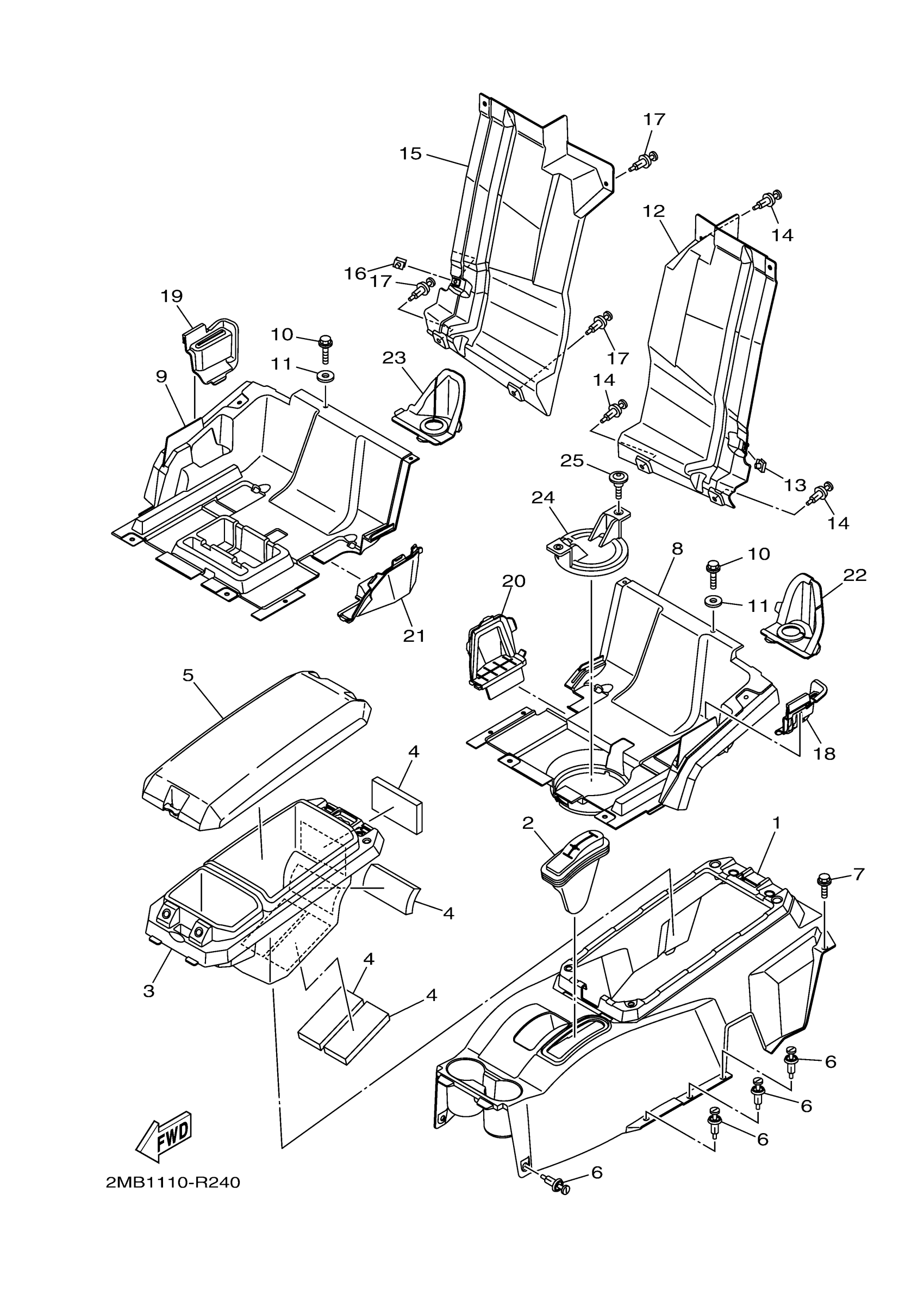

Find the part on the Side Cover 2 diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Wolverine (YXE70WDBJD) Side Cover 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER 1

2MB-F8219-00-00

1
Out of stock

2

COVER, HANDLE LEVE

1XD-F6372-00-00

1

$7.68

In stock

3

BOX

2MB-F1653-00-00

1

$27.03

In stock

4

PAD, BODY PROTECT 8

JR4-7826L-00-00

1

$4.20

In stock

5

LID 2

2MB-F177J-00-00

1

$13.26

In stock

6

RIVET,SPEC'L SHAPE

90269-07805-00

1

$1.15

In stock

7

BOLT, WITH WASHER

90119-06226-00

1

$2.15

In stock

8

PLATE, UNDER 1

2MB-F84A3-00-00

1
Out of stock

9

PLATE, UNDER 2

2MB-F84A4-00-00

1
Out of stock

10

BOLT, FLANGE

90105-06833-00

1

$1.77

In stock

11

WASHER, PLATE

90201-06036-00

1

$6.26

In stock

12

MUD GUARD 1

2MB-F2327-00-00

1

$82.89

In stock

13

NUT, SPRING

90183-060A6-00

1

$4.17

In stock

14

RIVET,SPEC'L SHAPE

90269-07805-00

1

$1.15

In stock

15

MUD GUARD 2

2MB-F2328-00-00

1

$22.25

In stock

16

NUT, SPRING

90183-060A6-00

1

$4.17

In stock

17

RIVET,SPEC'L SHAPE

90269-07805-00

1

$1.15

In stock

18

PLATE, RUBBER 1

2MB-F8483-00-00

1
Out of stock

19

PLATE, RUBBER 2

2MB-F8484-00-00

1

$8.40

In stock

20

PLATE, RUBBER 3

2MB-F8485-00-00

1

$9.94

In stock

21

PLATE, RUBBER 4

2MB-F8499-00-00

1

$14.11

In stock

22

PLATE, RUBBER 5

2MB-F845J-00-00

1
Out of stock

23

PLATE, RUBBER 6

2MB-F846J-00-00

1

$8.85

In stock

24

PLATE, RUBBER 7

2MB-F847J-00-00

—

$12.48

In stock

25

BOLT

90109-068A5-00

—

$6.08

In stock
