2018 Yamaha Wolverine (YXE70WDBJD) Emblem Label 1 Diagram

← All diagrams

Find the part on the Emblem Label 1 diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

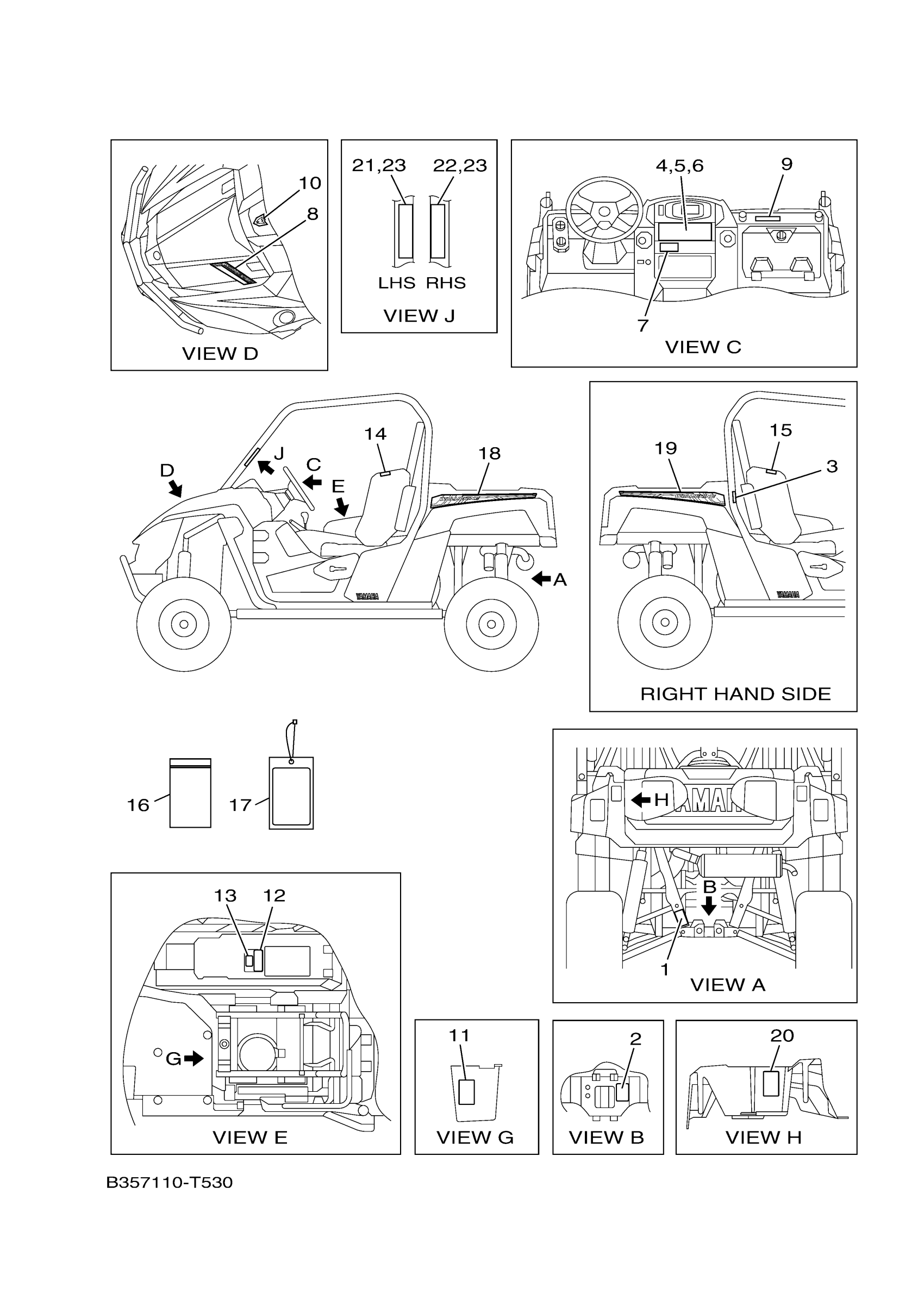

2018 Yamaha Wolverine (YXE70WDBJD) Emblem Label 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL 7

1XD-F151K-00-00

1
Out of stock

2

LABEL 6

5UG-F151J-00-00

1
Out of stock

3

EMBLEM 4

1XD-F4164-00-00

1
Out of stock

4

LABEL, WARNING

2MB-F1568-00-00

1
Out of stock

5

RIVET

BLT-F1539-00-00

1
Out of stock

6

WASHER,FENDER MOLD

4XE-F1549-00-00

1
Out of stock

7

LABEL, WARNING 2

1XD-F1558-00-00

1
Out of stock

8

EMBLEM 1

B35-F1781-20-00

1
Out of stock

9

LABEL, CAUTION

1XD-F8446-00-00

1
Out of stock

10

EMBLEM 3D

2MB-F6232-00-00

1
Out of stock

11

LABEL, CAUTION

2MB-F1696-00-00

1
Out of stock

12

LABEL 3

2MB-F151F-00-00

1
Out of stock

13

EMBLEM

2MB-F3819-00-00

1
Out of stock

14

LABEL WARNING

1XD-K8483-00-00

1
Out of stock

15

LABEL WARNING

1XD-K8483-00-00

1
Out of stock

16

POUCH

1P0-F8186-01-00

—
Out of stock

17

WOLVERINE ROHVA TAG

B3D-F819R-00-00

—
Out of stock

18

EMBLEM 1

B35-F163G-00-00

—
Out of stock

19

EMBLEM 2

B35-F163H-00-00

—
Out of stock

20

EMBLEM

2MB-F4897-00-00

1
Out of stock

21

LABEL, WARNING 1

1XD-K7761-00-00

—
Out of stock

22

LABEL, WARNING 2

1XD-K7762-00-00

—
Out of stock

23

RIVET

BLT-F1539-00-00

1
Out of stock
