2018 Yamaha Wolverine (YXE70WDBJD) Seat 2 Diagram

← All diagrams

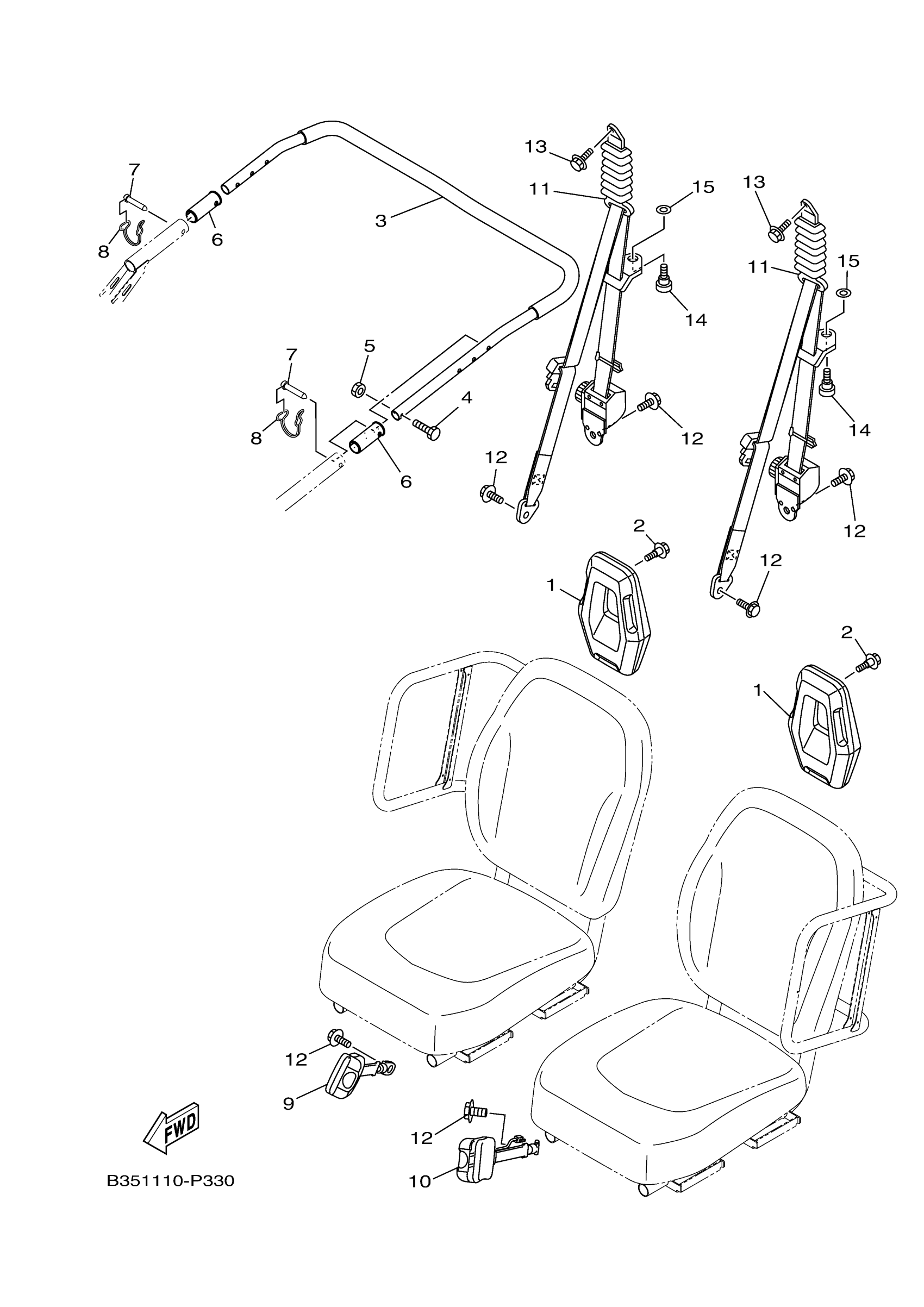

Find the part on the Seat 2 diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Wolverine (YXE70WDBJD) Seat 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD REST

2PG-F472L-00-00

—

$35.08

In stock

2

BOLT

90109-06079-00

1

$2.29

In stock

3

ASSIST GRIP ASSY.,

2MB-F470J-00-00

1

$85.20

In stock

4

BOLT

90101-06824-00

1

$1.22

In stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

BUSH, CAP

1XD-F467K-00-00

1

$2.37

In stock

7

PIN, LOCK

1XD-F5926-00-00

—

$2.48

In stock

8

SNAP, PIN

1XD-F311F-00-00

1

$6.72

In stock

9

FR. BELT RECEIVER

2PG-F470R-00-00

1

$39.25

In stock

10

FR. BELT RECEIVER

2PG-F470R-10-00

1

$89.94

In stock

11

FR. SEAT BELT ASSY

B85-F470L-00-00

1

$145.86

In stock

12

BOLT, FLANGE

95812-12020-00

1

$6.25

In stock

13

BOLT,HEX. SOCKET B

90111-12002-00

1

$3.29

In stock

14

BOLT, SPECIAL

16B-F3394-01-00

1

$2.49

In stock

15

WASHER, PLATE

90201-11801-00

1

$1.23

In stock
