1981 Yamaha XT250H Front Fork Diagram

← All diagrams

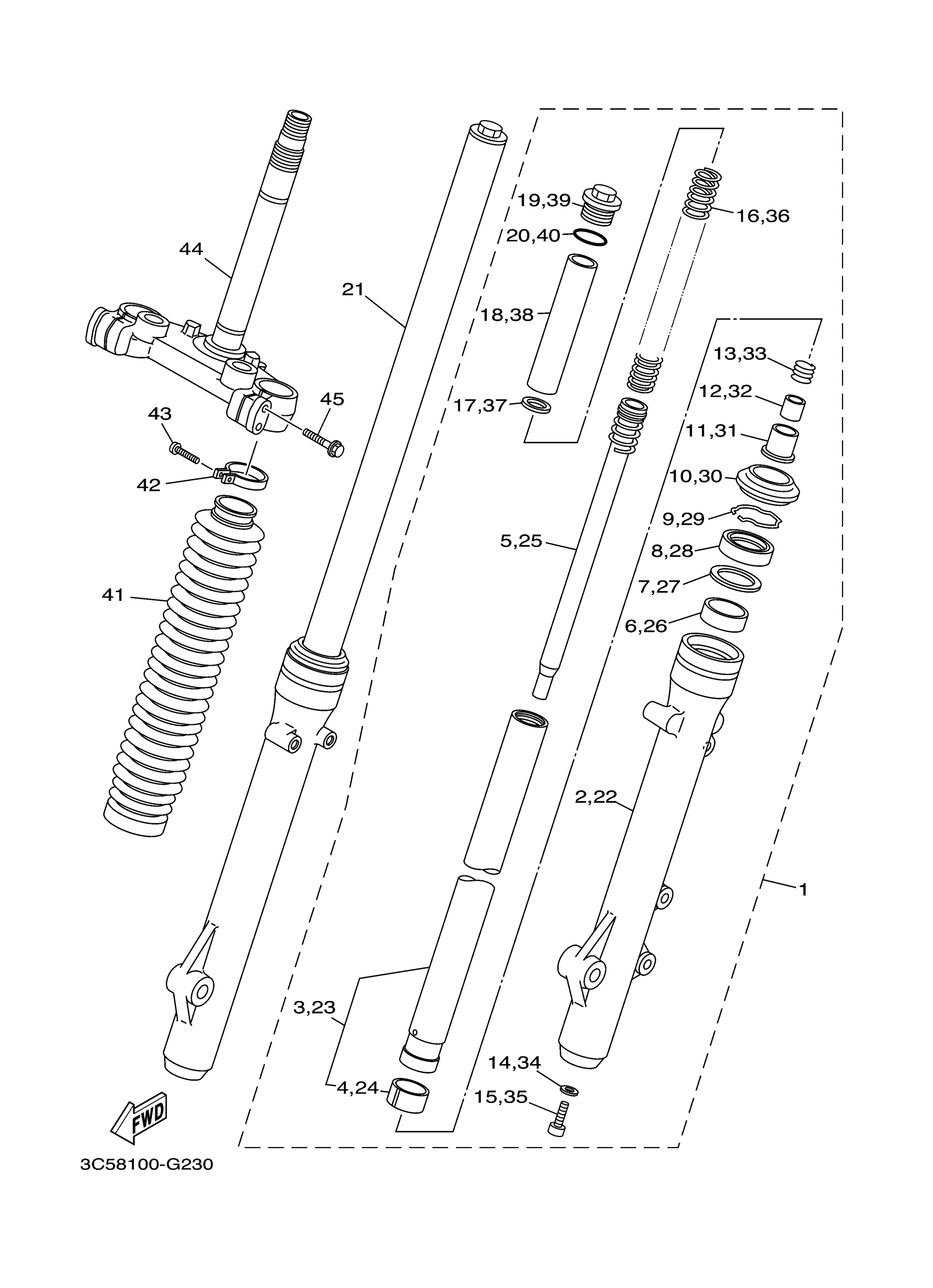

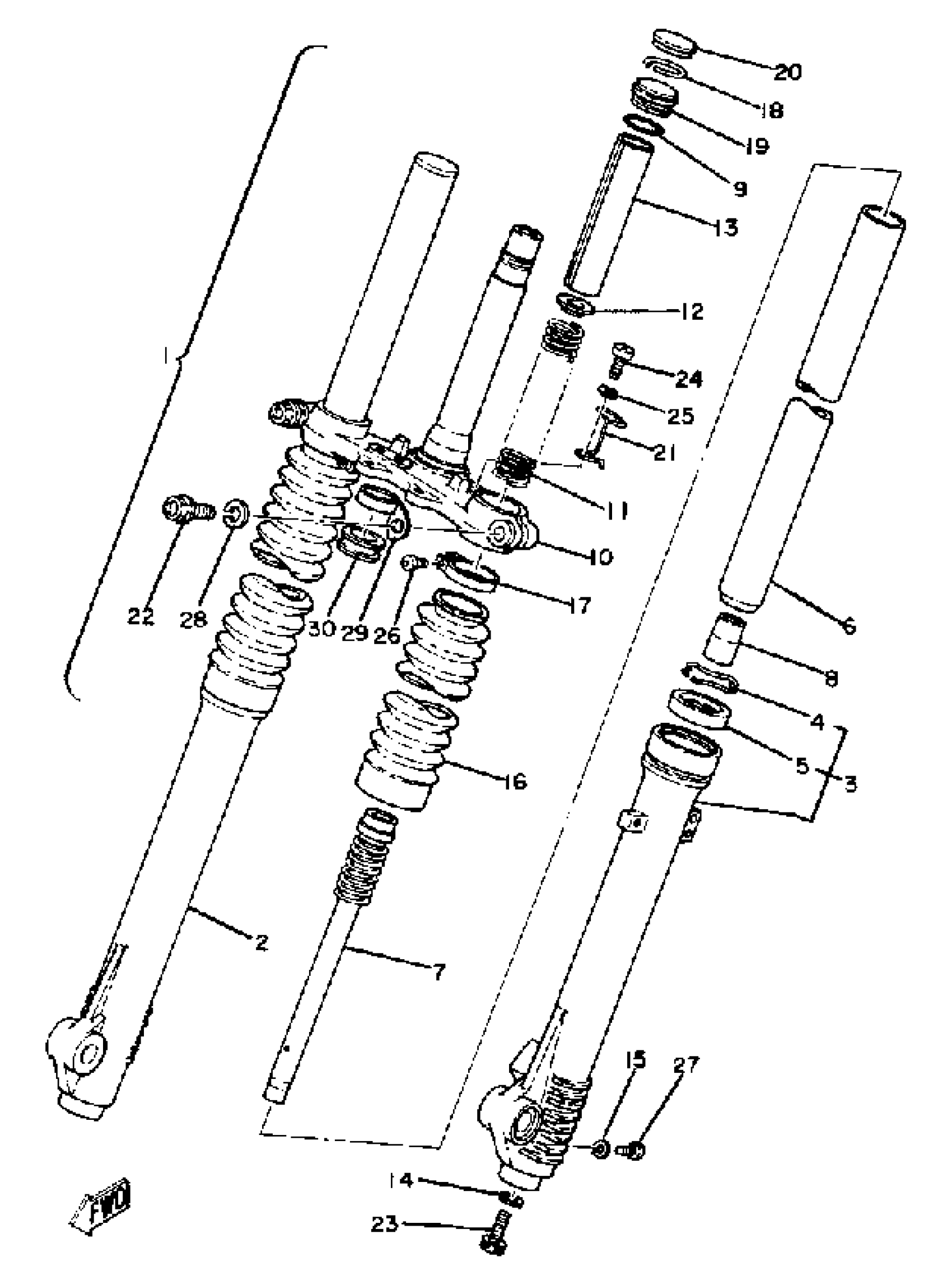

Find the part on the Front Fork diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(3Y1-23100-00-00)

1
Out of stock

2

. TUBE, OUTER 2

3Y1-23136-00-98

1
Out of stock

3

. TUBE, OUTER 1

3Y1-23126-00-98

1
Out of stock

4

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

5

OIL SEAL

1T3-23145-00-00

1

$14.25

In stock

6

. INNER TUBE 1

3Y1-23110-00-00

1
Out of stock

7

. CYLINDER, FRONT FORK

3Y1-23170-00-00

1
Out of stock

8

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

9

O-RING

3J2-23114-00-00

1

$7.51

In stock

10

. NO LONGER AVAILABLEK (3Y1-23340-00-33)

3Y3-23340-30-33

1
Out of stock

11

. SPRING, FRONT FORK

3Y1-23141-00-00

1
Out of stock

12

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

13

. SPACER

2W6-23118-00-00

1
Out of stock

14

GASKET

509-23158-L0-00

1

$14.34

In stock

15

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

16

. BOOT, FRONT FORK

3Y1-23191-00-00

1
Out of stock

17

BAND, BOOT

341-92090-60-00

—
Out of stock

18

RING, SNAP

3J2-23183-00-00

—

$4.20

In stock

19

. BOLT, CAP

3Y1-23111-00-00

1
Out of stock

20

. CAP, FRONT FORK

3Y1-23168-00-00

1
Out of stock

21

. GUIDE, CABLE

3Y1-2331E-00-00

1
Out of stock

22

BOLT 2

2NX-23356-00-00

—
Out of stock

23

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

24

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

SCREW

509-23194-L0-00

—

$4.12

In stock

27

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

28

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

29

. HOLDER, CABLE

3Y1-23317-00-00

1
Out of stock

30

GUIDE, WIRE

1W1-23389-00-00

—

$24.12

In stock
