1981 Yamaha XT250H Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

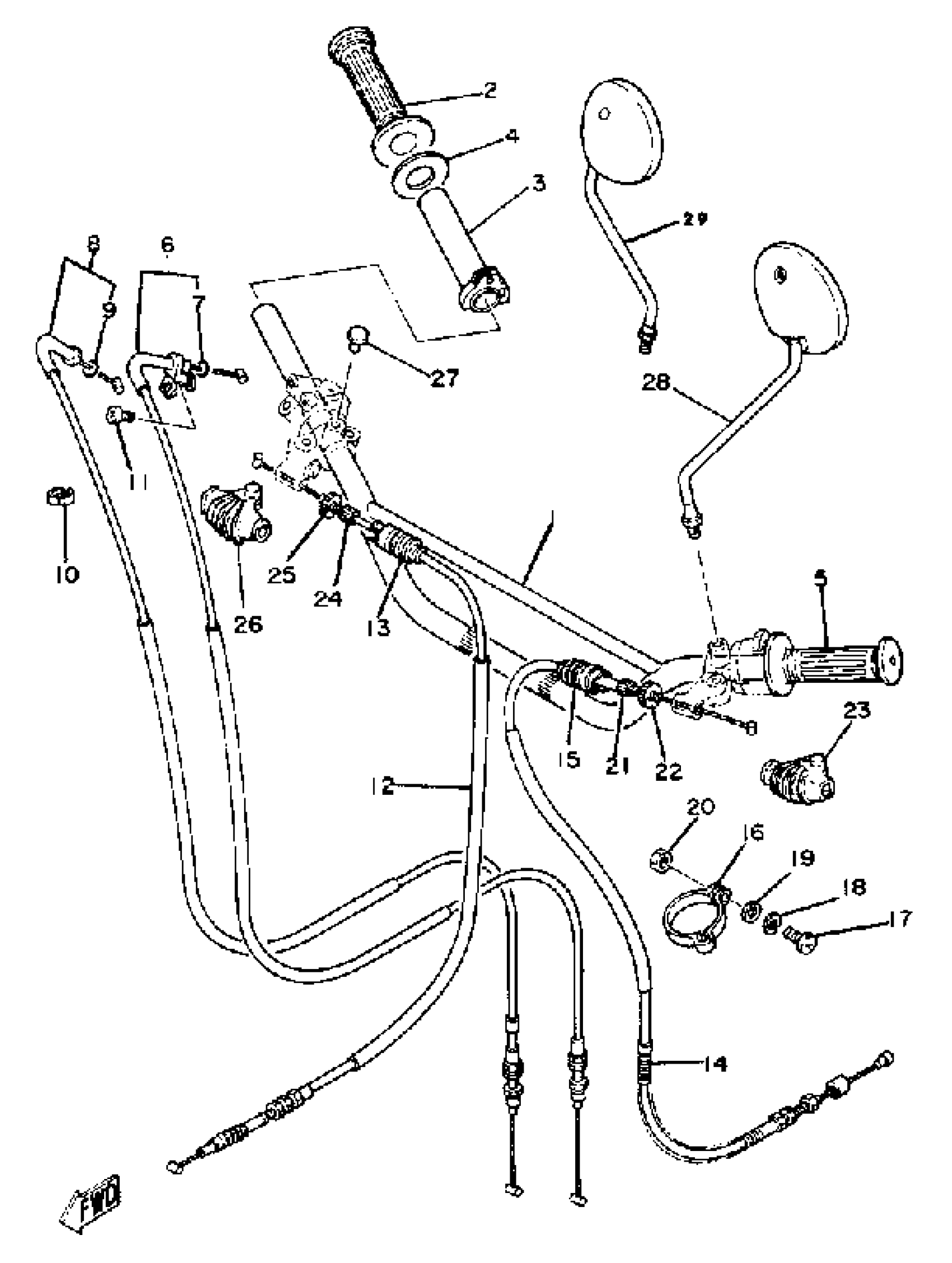

1981 Yamaha XT250H Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3Y1-26111-00-00

1
Out of stock

2

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

1
Out of stock

4

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

6

CABLE, THROTTLE 1

3Y1-26311-00-00

1

$38.01

In stock

7

. O-RING

93210-08408-00

1
Out of stock

8

CABLE, THROTTLE 2

53R-26312-00-00

1

$39.47

In stock

9

. O-RING

93210-08408-00

1
Out of stock

10

CLIP, WIRE 2072639100

90468-15009-00

—
Out of stock

11

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

12

CABLE, BRAKE

3Y1-26341-00-00

—
Out of stock

13

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

14

CABLE, CLUTCH

3Y0-26335-00-00

—

$48.42

In stock

15

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

16

BAND

3Y1-26397-00-00

1
Out of stock

17

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

20

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

21

BOLT

90123-08002-00

—

$8.93

In stock

22

NUT

90179-08030-00

—

$3.78

In stock

23

COVER, LEVER

1E6-26372-00-00

—

$19.91

In stock

24

BOLT

90123-08002-00

—

$8.93

In stock

25

NUT

90179-08030-00

—

$3.78

In stock

26

COVER, LEVER

1E6-26372-00-00

—

$19.91

In stock

27

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

28

MIRROR ASSY., 2

5Y1-26290-11-00

—
Out of stock

29

—

$45.60

In stock
