1981 Yamaha XT250H Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

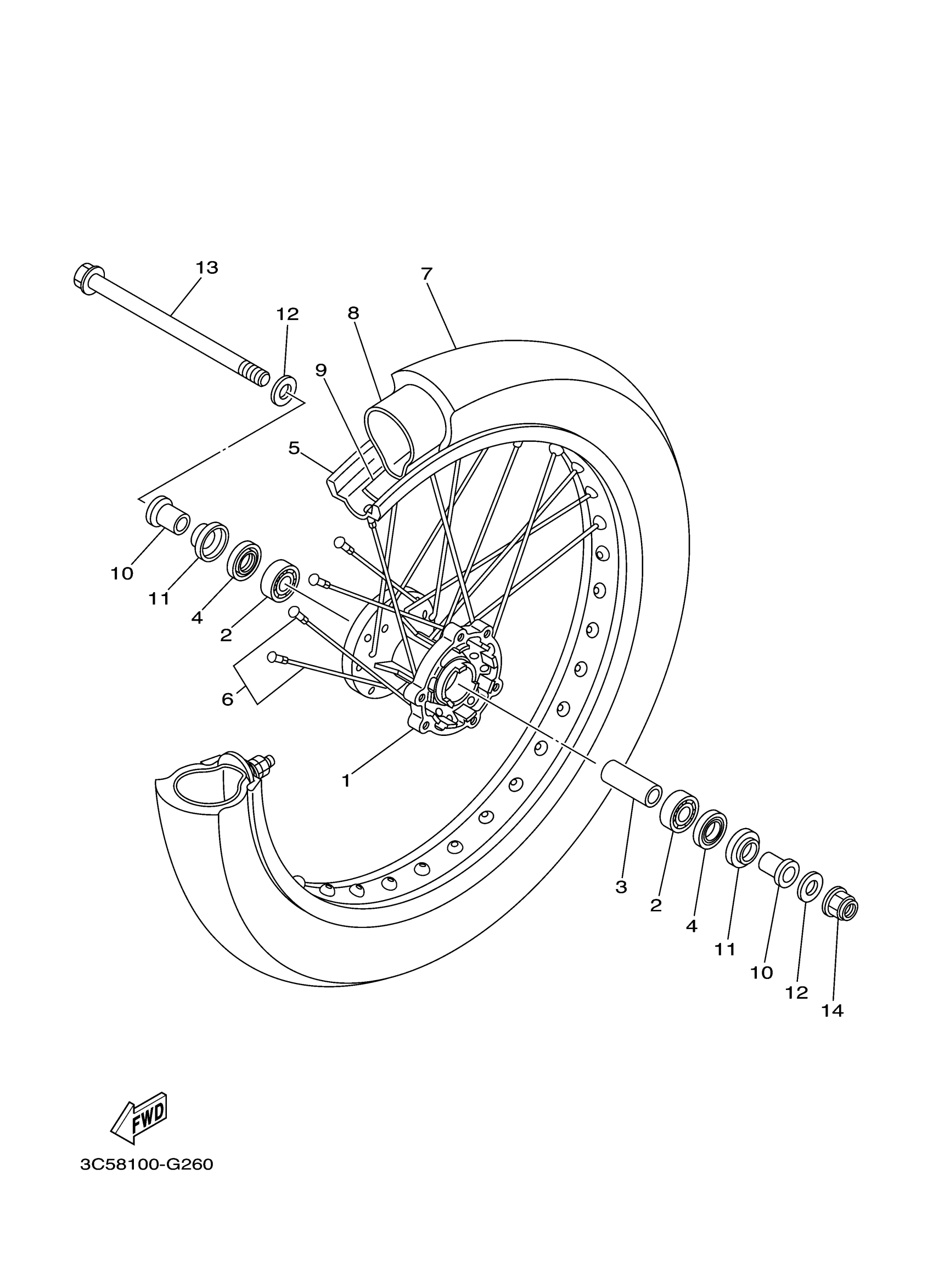

1981 Yamaha XT250H Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

34X-25111-02-35

—

$202.68

In stock

2

BEARING

93306-20205-00

1

$32.63

In stock

3

SPACER(1ET)

90560-15290-00

1

$17.32

In stock

4

OIL SEAL(38V)

93106-20021-00

1

$11.48

In stock

5

RIM (1.60-21)(2YY)

94416-21536-00

1

$452.52

In stock

6

SPOKE SET, FRONT

1KH-25104-00-00

1

$84.73

In stock

7

1

$72.85

In stock

8

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

9

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

10

COLLAR (1W1)

90387-15600-00

1

$15.34

In stock

11

COVER, HUB DUST

322-25118-00-00

1

$16.17

In stock

12

WASHER, PLATE (3X3)

90201-15797-00

1

$6.29

In stock

13

AXLE, WHEEL

5HH-25381-01-00

—

$33.98

In stock

14

NUT, U(4JT)

95617-14100-00

—

$9.00

In stock
