1981 Yamaha XT250H Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

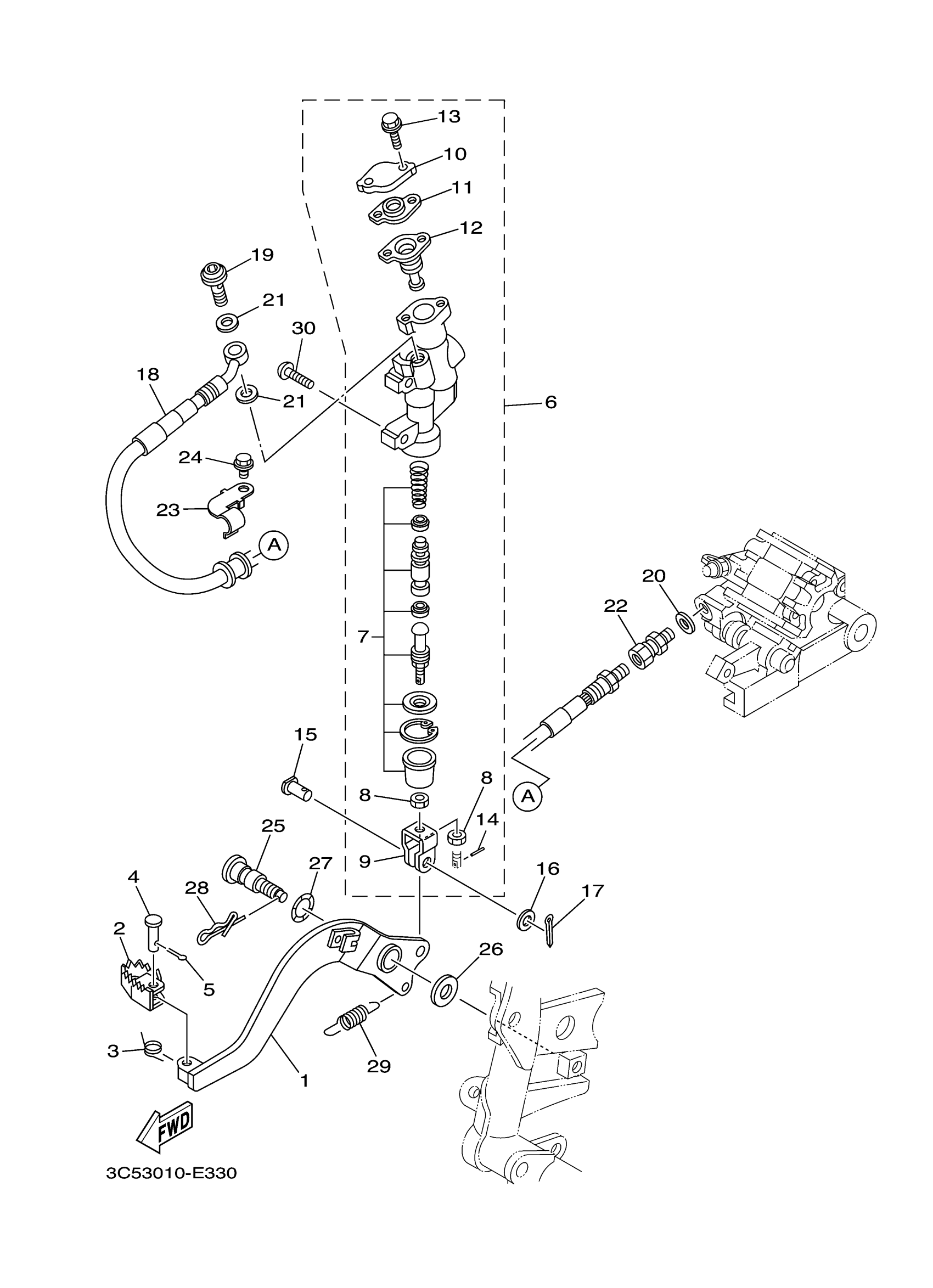

1981 Yamaha XT250H Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

3C5-27211-10-00

—

$49.25

In stock

2

PEDAL, BRAKE

55V-27242-00-00

1

$19.86

In stock

3

SPRING, TORSION (1W2)

90508-14352-00

1

$6.89

In stock

4

PIN, COTTER (1W2)

91701-06022-00

1

$1.83

In stock

5

PIN, COTTER (648)

91490-20015-00

1

$1.85

In stock

6

RR. MASTER CYLINDER ASSY.

5XT-2583V-10-00

—

$181.36

In stock

7

CYLINDER KIT, MASTER

5XT-W0042-50-00

—

$56.52

In stock

8

NUT, HEXAGON SMALL

95317-08700-00

1

$7.05

In stock

9

JOINT

2YK-27222-00-00

1
Out of stock

10

CAP, RESERVOIR

5UN-25852-50-00

1

$14.46

In stock

11

PLATE, DIAPHRAGM

5UN-2585B-00-00

1

$6.43

In stock

12

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

1

$12.27

In stock

13

BOLT

5UN-27217-00-00

1

$4.74

In stock

14

PIN, BRAKE ROD

3KW-27234-00-00

1

$6.43

In stock

15

PIN, CLEVIS

90240-08005-00

1
Out of stock

16

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

17

PIN, COTTER

91490-16020-00

1

$6.23

In stock

18

HOSE, BRAKE 2

3C5-25873-00-00

—

$57.69

In stock

19

BOLT, UNION

90401-10172-00

—

$3.72

In stock

20

WASHER, PLATE(481)

90201-10118-00

—

$2.91

In stock

21

GASKET

90430-10005-00

—

$7.06

In stock

22

JOINT

3LC-25885-00-00

—

$24.57

In stock

23

HOLDER, BRAKE HOSE

3C5-25887-00-00

—

$4.68

In stock

24

BOLT, FLANGE

95817-06008-00

—

$4.70

In stock

25

SHAFT

2YK-27261-00-00

—

$10.57

In stock

26

WASHER, PLATE(52H)

90201-105J4-00

—

$6.88

In stock

27

WASHER, WAVE

90206-14001-00

—

$7.35

In stock

28

CLIP(3YF)

90468-16191-00

—

$6.17

In stock

29

SPRING, TENSION

90506-23008-00

—

$5.89

In stock

30

SCREW(4DN)

90149-06302-00

—

$4.29

In stock
