Find the part on the Rear Suspension diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

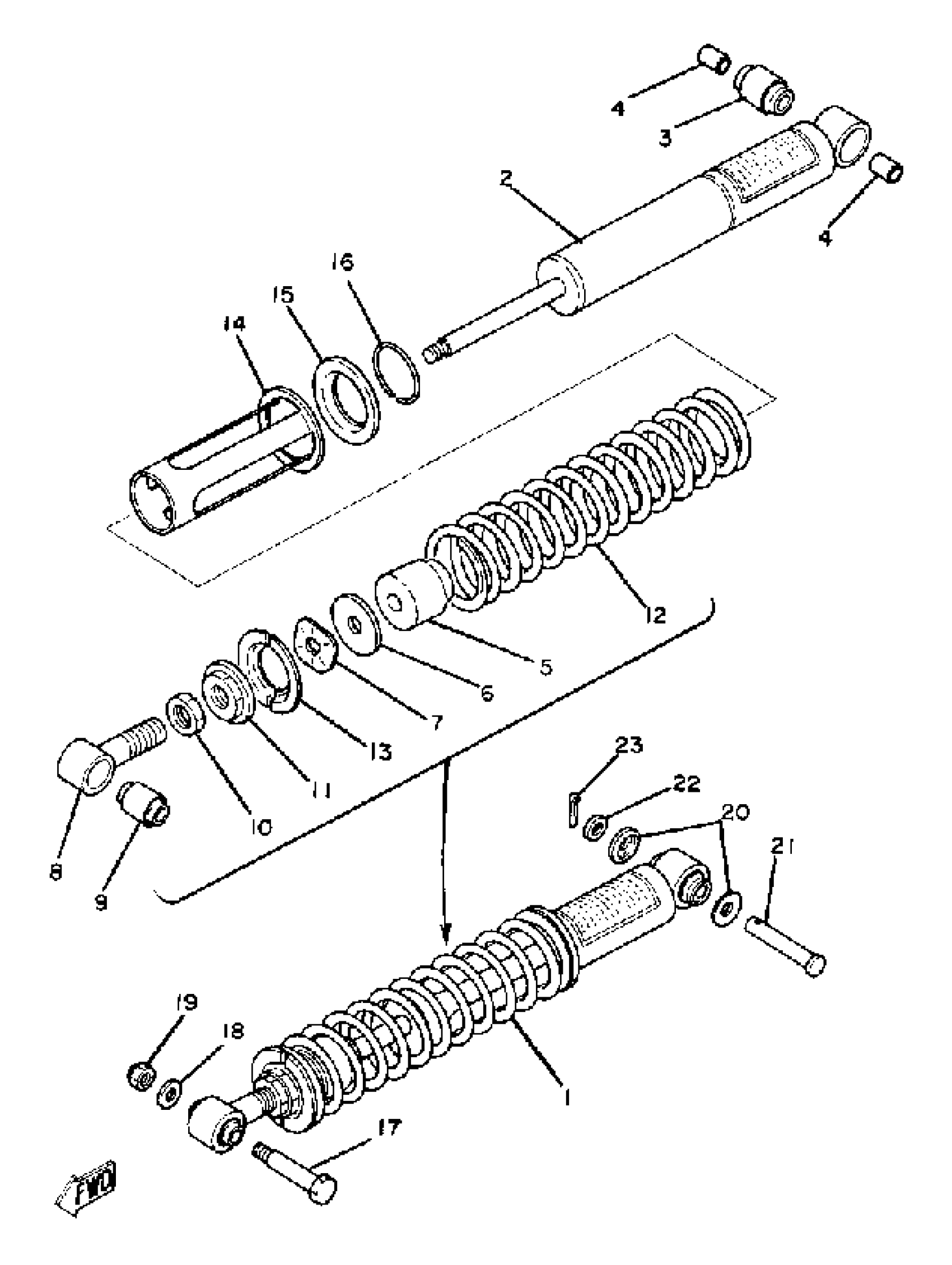

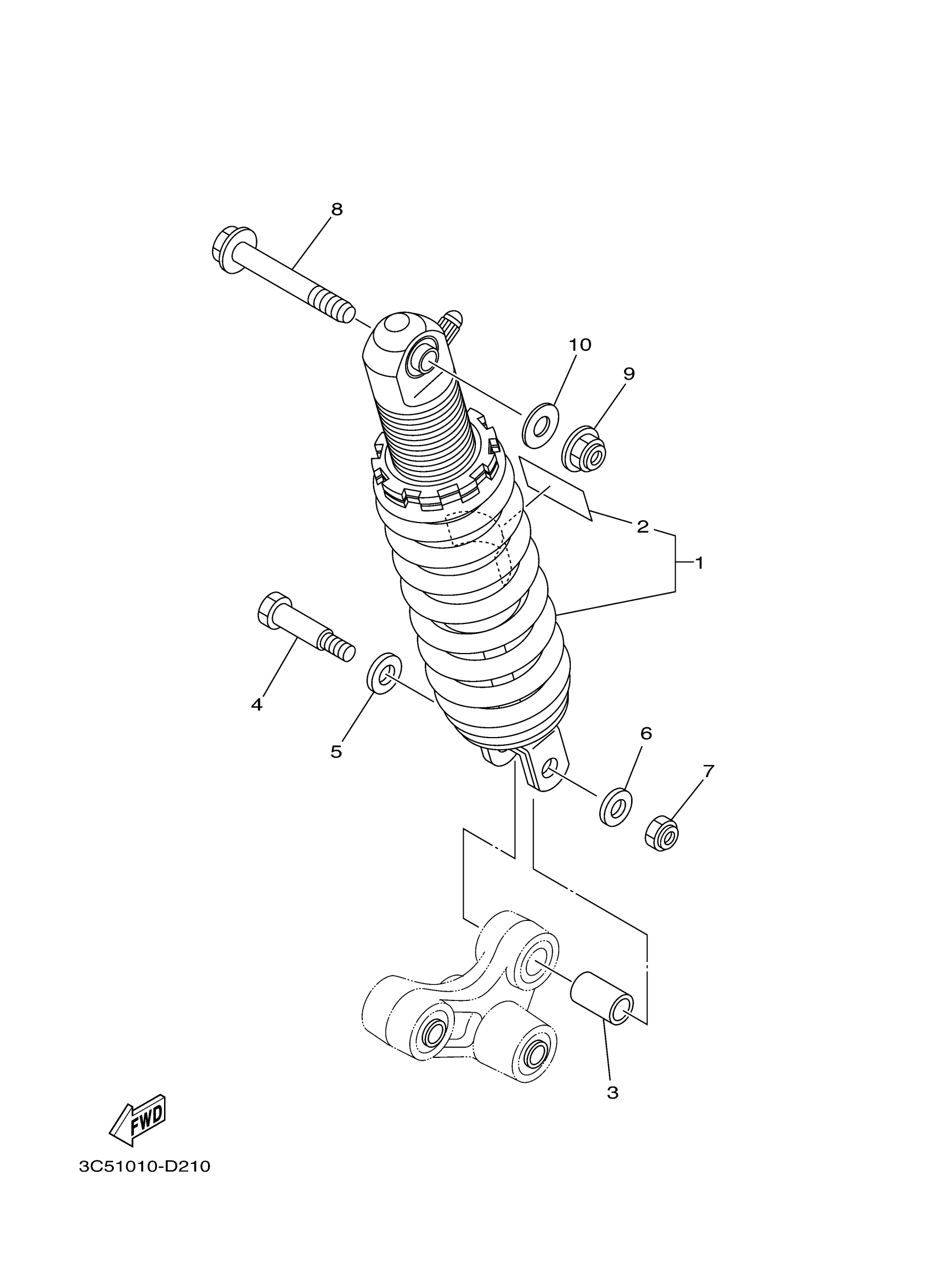

1981 Yamaha XT250H Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ABSORBER ASS

3C5-22210-21-00

—

$529.99

In stock

2

LABEL, WARNING

4AA-22259-80-00

1

$12.03

In stock

3

COLLAR(3TJ)

90387-127W0-00

1

$11.14

In stock

4

BOLT(1WG)

90101-10659-00

—

$8.57

In stock

5

WASHER, PLATE

90201-13013-00

1

$6.29

In stock

6

WASHER, PLATE

90201-10035-00

1

$3.56

In stock

7

NUT, U

95614-10100-00

1

$5.86

In stock

8

BOLT, WASHER BASED(3XW)

90105-12598-00

—

$15.82

In stock

9

NUT, SELF-LOCKING

95602-12200-00

1

$3.82

In stock

10

WASHER, PLATE

90201-12045-00

1

$5.14

In stock
