1981 Yamaha XT250H Rear ARM Diagram

← All diagrams

Find the part on the Rear ARM diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

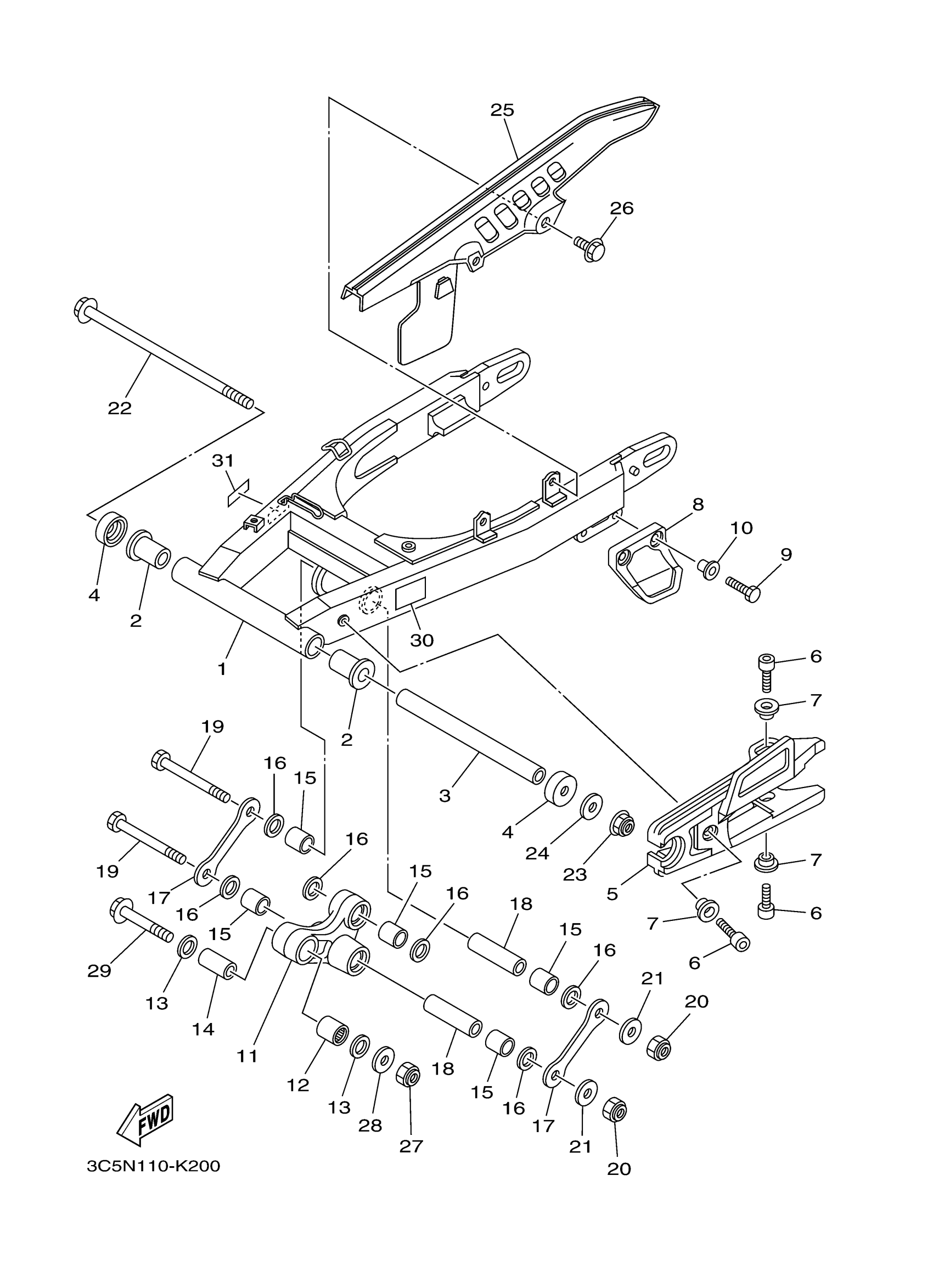

1981 Yamaha XT250H Rear ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

3C5-22110-00-00

—

$507.78

In stock

2

BUSH

90386-18099-00

1

$13.45

In stock

3

BUSH

5XT-22184-00-00

1

$42.78

In stock

4

COVER, THRUST 1

401-22128-01-00

1

$25.49

In stock

5

SEAL, GUARD

3C5-22151-00-00

—

$34.23

In stock

6

BOLT

91312-05014-00

1

$2.74

In stock

7

WASHER, PLATE

5JG-22156-00-00

1

$6.98

In stock

8

SUPPORT, CHAIN

5BT-22199-00-00

1

$19.60

In stock

9

BOLT, WITH WASHER

90119-06242-00

1

$5.86

In stock

10

COLLAR (3L6)

90387-06737-00

1

$6.60

In stock

11

ARM, RELAY

5XT-2217A-00-00

—

$102.63

In stock

12

BEARING, CYLINDRICAL(4PT)

93315-31750-00

1

$31.54

In stock

13

OIL SEAL

93109-17071-00

1

$6.72

In stock

14

COLLAR(3YL)

90387-126X9-00

—

$32.48

In stock

15

BUSH, FORMED

90383-17001-00

1

$9.38

In stock

16

OIL SEAL

93109-17071-00

1

$6.72

In stock

17

ROD, CONNECTING 1

3C5-2217F-01-00

—

$16.08

In stock

18

COLLAR(3FV)

90387-123V9-00

—

$19.28

In stock

19

BOLT

90101-12015-00

—

$4.48

In stock

20

NUT, U (4PM)

95617-12100-00

—

$3.69

In stock

21

WASHER (2T4)

90201-12699-00

—
Out of stock

22

SHAFT, PIVOT

5JV-22141-00-00

—

$12.43

In stock

23

NUT, SELF-LOCKING(3JF)

95604-12200-00

—

$4.65

In stock

24

WASHER, PLATE

90201-12045-00

—

$5.14

In stock

25

CASE, CHAIN

34X-22311-01-00

—

$28.45

In stock

26

BOLT, WITH WASHER (10V)

90119-05062-00

—

$5.45

In stock

27

NUT, U

95612-12100-00

—

$4.09

In stock

28

WASHER (2T4)

90201-12699-00

—
Out of stock

29

BOLT, WASHER BASED(1YW)

90105-12425-00

—
Out of stock

30

LABEL, TIRE

3C5-21668-00-00

1
Out of stock

31

LABEL, BRAKE FLUID

3C5-25839-10-00

—

$6.52

In stock
