1972 Yamaha XS2 (XS2) Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

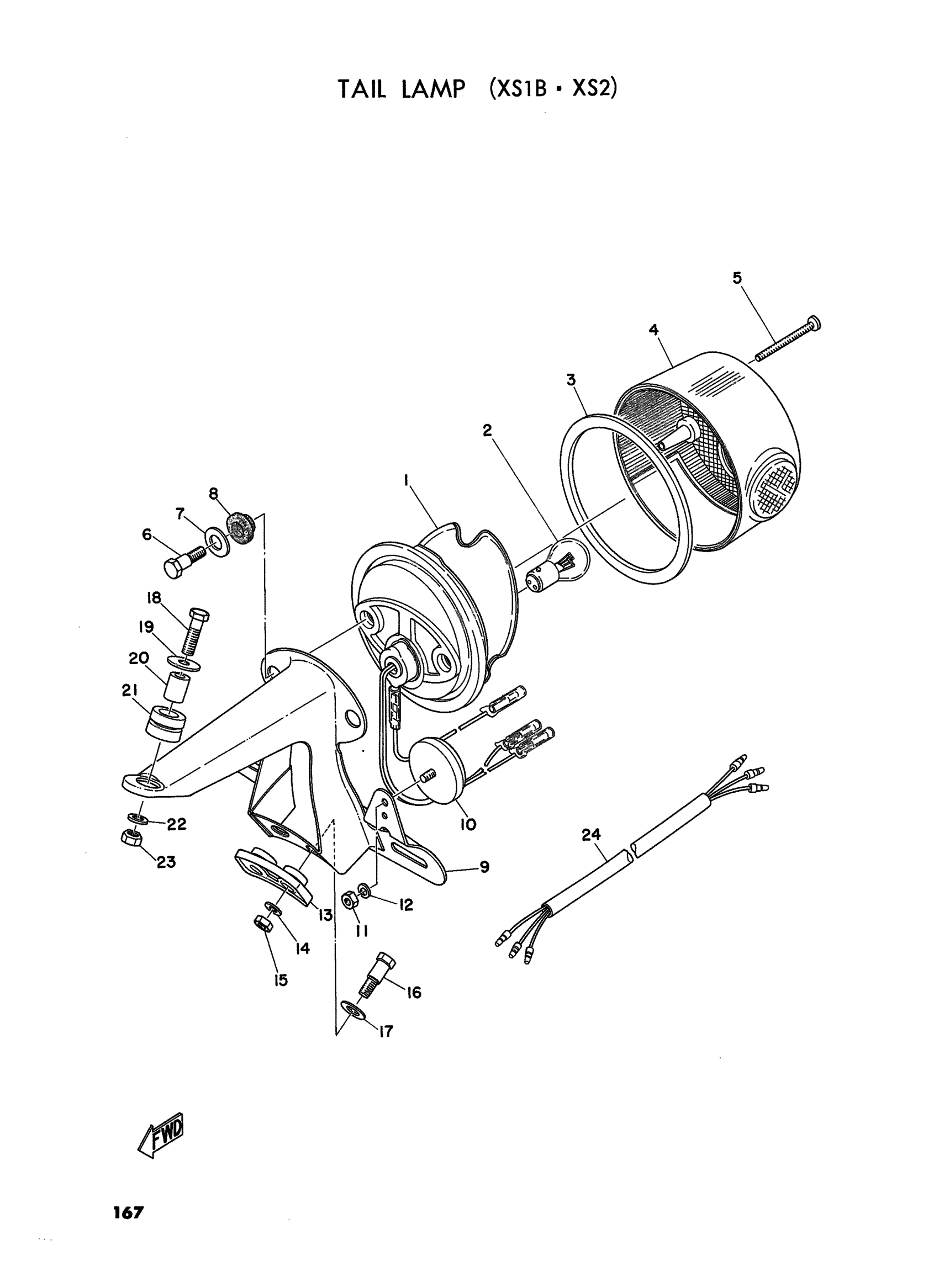

1972 Yamaha XS2 (XS2) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

256-84710-61-00

1
Out of stock

1

BASE, TAILLIGHT

(275-84511-61-00)

1
Out of stock

1

TAILLIGHT UNIT ASSEMBLY

(306-84710-60-00)

1
Out of stock

1

BASE,TAILLIGHT

306-84711-61-00

1
Out of stock

1

TAILLIGHT UNIT ASSEMBLY

(366-84710-61-00)

1
Out of stock

1

. UNAVAILABLE IN PRICE BOOK (366-84711-60)

366-84711-61-00

1
Out of stock

2

1

$10.02

In stock

3

. GASKET, LENS

275-84523-60-00

1
Out of stock

4

LENS, TAILLIGHT

(275-84521-60-00)

1
Out of stock

4

. LENS, TAIL LIGHT

341-84721-60-00

1
Out of stock

5

SCREW, PAN HEAD

98507-04050-00

1

$2.12

In stock

5

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

6

SCREW

(479-84526-00-00)

1
Out of stock

7

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

8

. DAMPER

275-84527-60-00

1
Out of stock

9

. BRACKET, LICENSE

341-84751-61-93

1
Out of stock

9

. BRACKET, LICENSE

341-84751-61-93

1
Out of stock

10

REFLECTOR, FRONT 1

(278-85111-00-00)

1
Out of stock

10

REFLECTOR, REAR 1

449-85131-02-00

—

$25.74

In stock

11

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

13

DAMPER

214-84553-01-00

—

$6.72

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

BOLT 168217380000

90109-06017-00

—
Out of stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

WASHER

90209-06012-00

—

$4.71

In stock

20

COLLAR (J10)

90387-06026-00

—

$6.91

In stock

21

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

24

CORD, TAILLIGHT

251-84517-60-00

1
Out of stock

25

. WASHER

341-84722-60-00

1
Out of stock
