1972 Yamaha XS2 (XS2) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

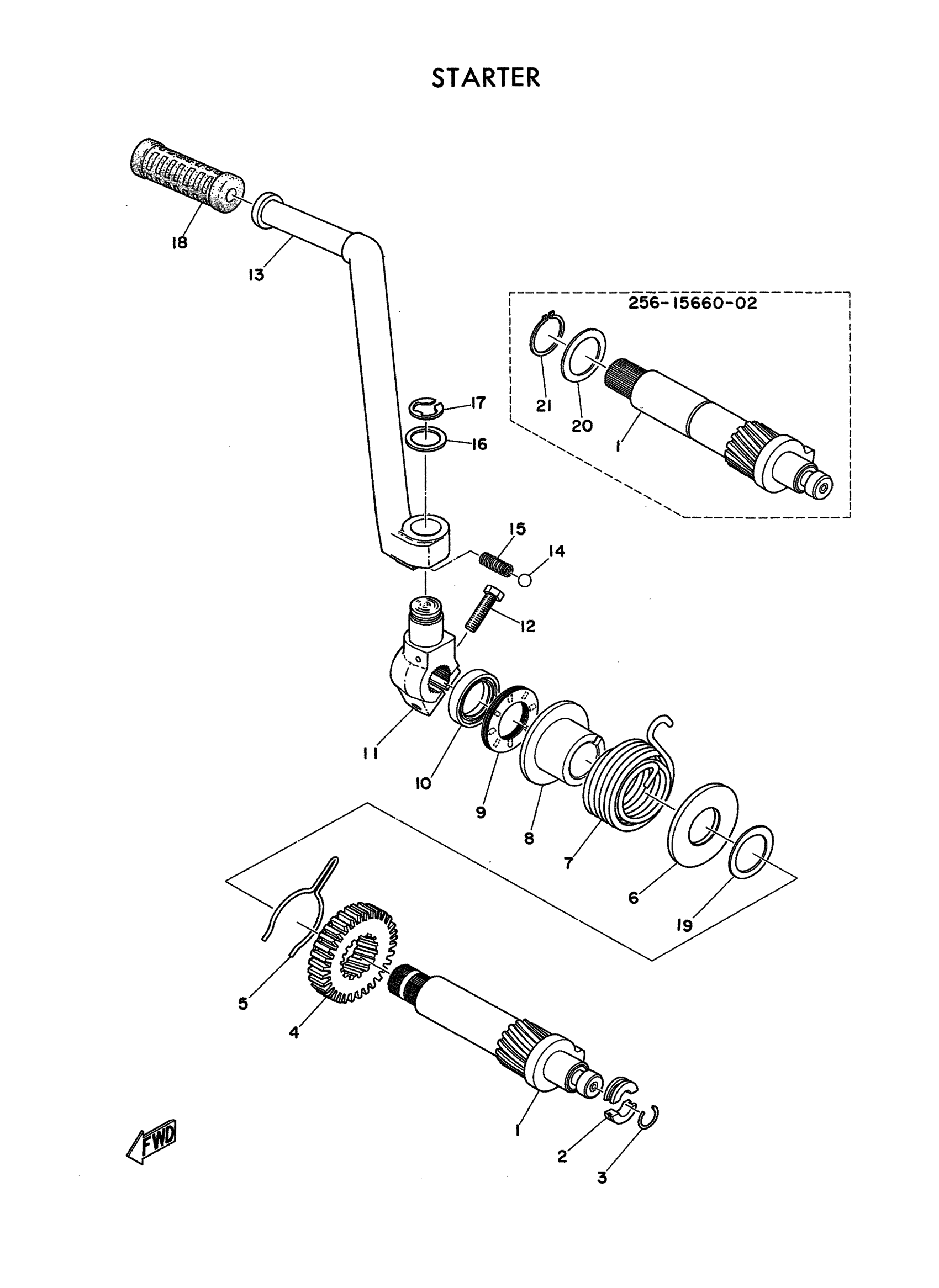

1972 Yamaha XS2 (XS2) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

(256-15660-02-00)

1
Out of stock

2

HOLDER, KICK GEAR

(256-15654-00-00)

1
Out of stock

3

CLIP

(256-15673-00-00)

1
Out of stock

4

GEAR, KICK

(256-15641-01-00)

1
Out of stock

4

GEAR, KICK

306-15641-01-00

1
Out of stock

5

CLIP

90468-26045-00

1
Out of stock

6

SPACER (856-23858-00)

90560-25048-00

1
Out of stock

7

SPRING, TORSION

90508-32062-00

1
Out of stock

8

GUIDE, SPRING

256-15664-01-00

1
Out of stock

9

BEARING

93342-22518-00

—
Out of stock

10

OIL SEAL (25X35X7-256)

93102-25064-00

1
Out of stock

11

BOSS, KICK CRANK (256-15621-00)

341-15621-00-00

1
Out of stock

11

BOSS, KICK CRANK (256-15621-00)

341-15621-00-00

1
Out of stock

12

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

13

KICK CRANK ASSY

1JN-15610-00-00

—

$233.95

In stock

13

KICK CRANK ASSY

1JN-15610-00-00

—

$233.95

In stock

14

BALL

93505-16006-00

—

$2.22

In stock

15

SPRING, COMPRESSION

(90501-15091-00)

1
Out of stock

16

WASHER

90201-17256-00

1
Out of stock

17

CIRCLIP (E-12)

93430-12022-00

1
Out of stock

18

COVER, KICK LEVER

214-15618-00-00

—

$6.72

In stock

19

SHIM (0.5MM)

611-45567-00-05

1
Out of stock

20

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

21

CIRCLIP (256)

93410-25017-00

—
Out of stock
