1972 Yamaha XS2 (XS2) Head Lamp Diagram

← All diagrams

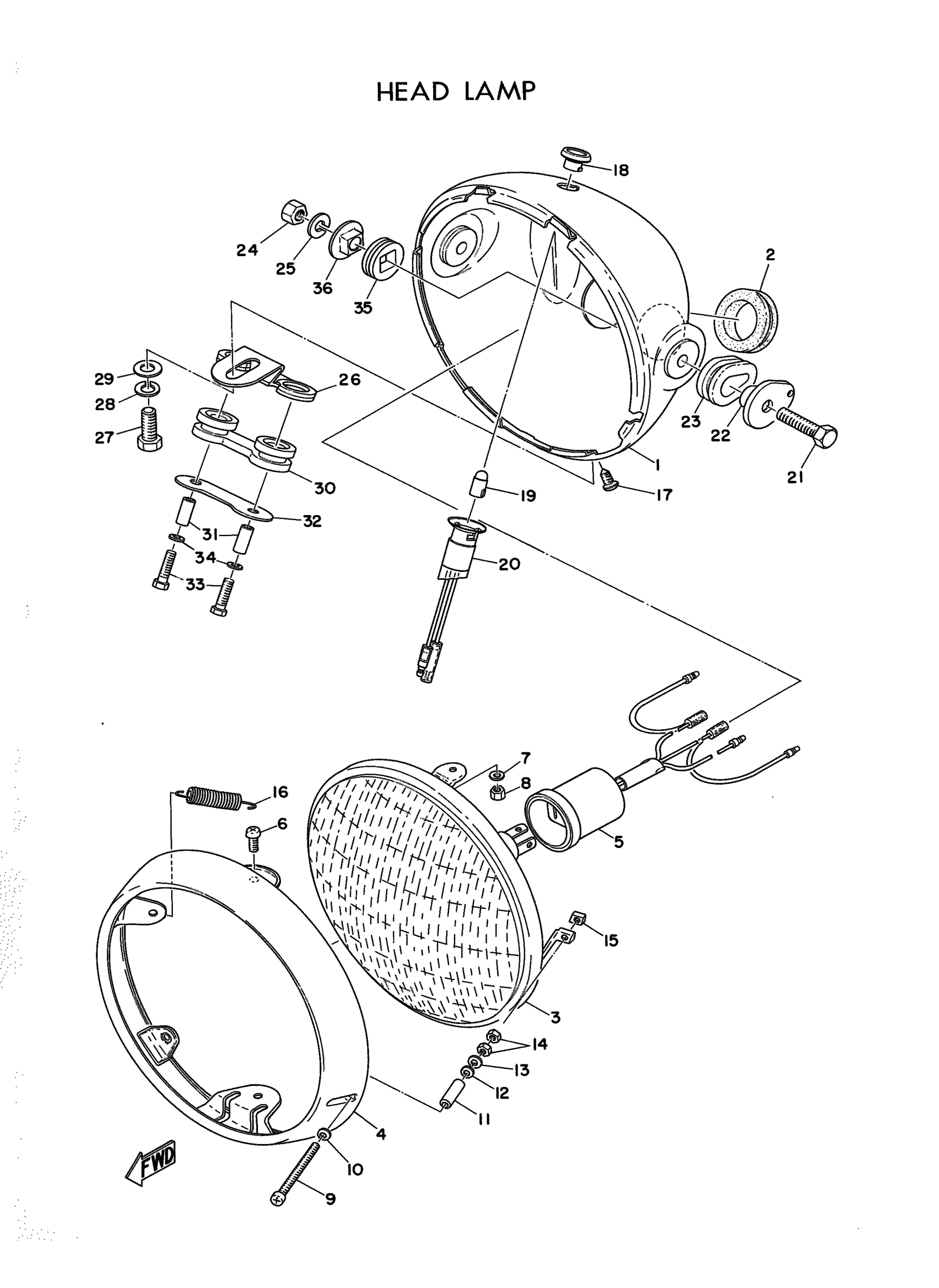

Find the part on the Head Lamp diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(256-84330-60-52)

1
Out of stock

1

BODY ASSEMBLY

(256-84330-60-63)

1
Out of stock

1

BODY ASSEMBLY

(256-84330-60-F5)

1
Out of stock

1

BODY ASSEMBLY

(256-84330-60-K9)

1
Out of stock

1

BODY ASSEMBLY

(256-84330-60-K9)

1
Out of stock

2

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

2

. GROMMET

256-84353-60-00

1
Out of stock

3

LENS ASSEMBLY

256-84320-60-00

1
Out of stock

4

RIM, HEADLIGHT

256-84315-60-00

1
Out of stock

5

SOCKET

246-84312-60-00

1
Out of stock

6

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

9

SCREW, PAN HEAD

98507-04050-00

1

$2.12

In stock

10

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

11

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

13

. SPACER

132-84328-60-00

1
Out of stock

14

NUT(6L4)

95380-04700-00

—

$5.62

In stock

15

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

16

SPRING

(168-84335-60-00)

1
Out of stock

17

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

18

BODY, PILOT LIGHT

256-84357-61-00

1
Out of stock

19

BULB

256-84347-00-00

1
Out of stock

20

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

21

UNAVAILABLE IN PRICE BOOK (97103-08035)

97323-08305-00

1
Out of stock

22

COLLAR, FLASHER 1

256-83316-00-00

1
Out of stock

23

DAMPER, FLASHER 1

256-83321-00-00

1
Out of stock

24

NUT(6L2)

95333-08600-00

—

$3.20

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

STAY, HEADLIGHT 1

256-84318-01-00

1
Out of stock

27

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

30

DAMPER, HEADLIGHT

(256-84336-00-00)

1
Out of stock

31

COLLAR (1T2)

90387-07598-00

—

$4.83

In stock

32

WASHER, PLAIN

(256-84344-00-00)

1
Out of stock

32

WASHER, PLATE

90201-06086-00

—
Out of stock

33

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

DAMPER, HEADLIGHT

256-84345-60-00

1
Out of stock

36

COLLAR, BODY FTNG

214-84145-60-00

1
Out of stock
