1972 Yamaha XS2 (XS2) Handle - Wire Diagram

← All diagrams

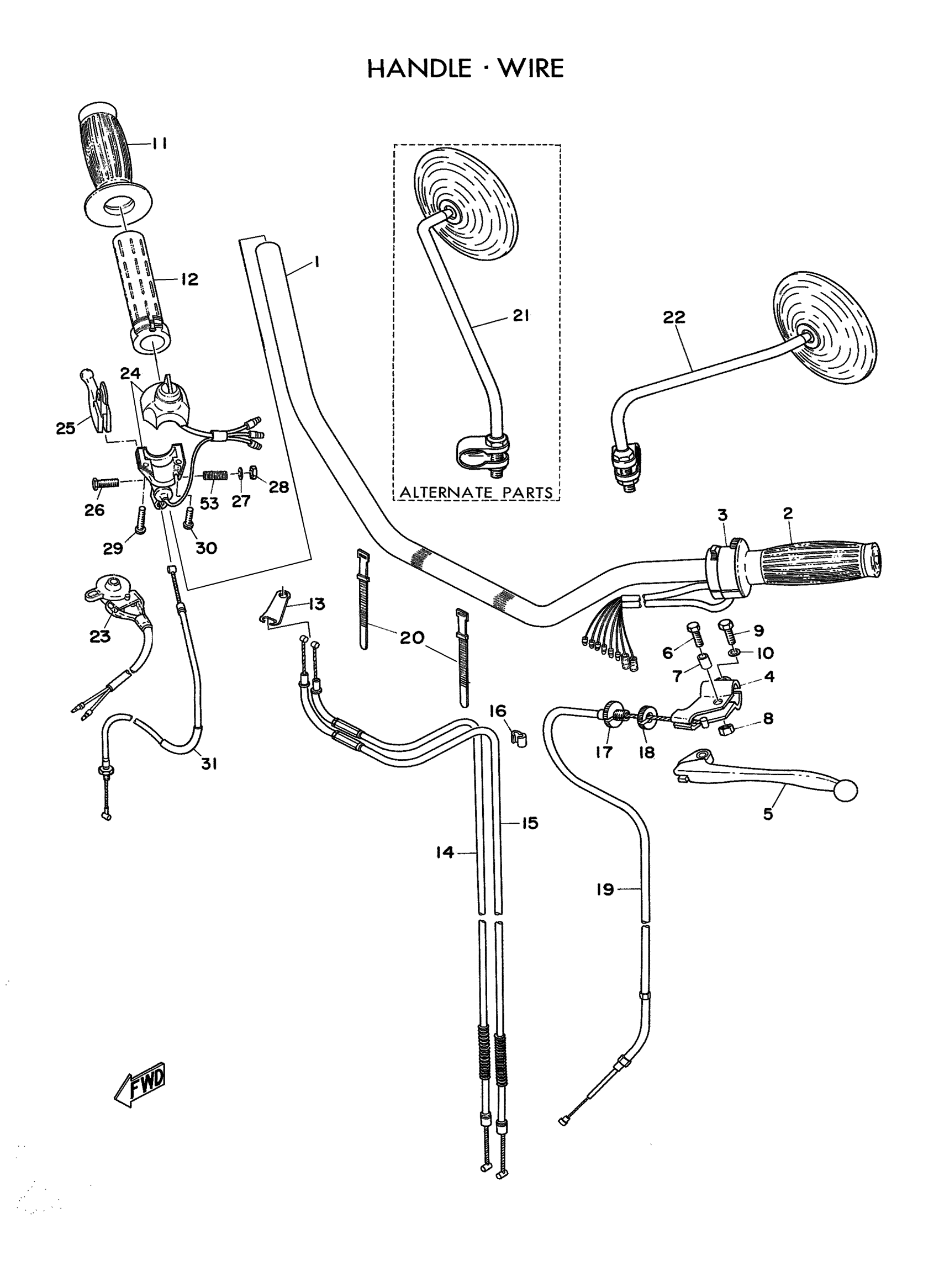

Find the part on the Handle - Wire diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

256-26111-00-00

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 4

306-83972-00-98

1
Out of stock

4

. HOLDER, LEVER 1

306-829111-00-98

1
Out of stock

5

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

6

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

8

NUT(650)

95380-06700-00

1

$6.17

In stock

9

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

GRIP RH

(306-26242-00-00)

1
Out of stock

12

TUBE, THRTL GUIDE

256-26243-00-00

1
Out of stock

13

HOLDER

306-26393-00-00

1
Out of stock

14

CABLE, THROTTLE 1

256-26311-01-00

1
Out of stock

15

CABLE, THROTTLE 2

256-26312-00-00

1
Out of stock

16

CLIP, WIRE 2072639100

90468-15009-00

—
Out of stock

17

BOLT

90123-08002-00

—

$8.93

In stock

18

NUT

90179-08030-00

—

$3.78

In stock

19

CABLE, CLUTCH (256-26335-02)

447-26335-01-00

1
Out of stock

20

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

21

MIRROR ASSEMBLY RH

256-26290-00-00

1
Out of stock

22

MIRROR ASSEMBLY LH

256-26290-10-00

1
Out of stock

23

STOP SWITCH ASSEMBLY

(306-83980-30-00)

1
Out of stock

24

SWITCH, HANDLE 2

(306-83975-00-00)

1
Out of stock

25

. LEVER, DCOMP

306-83981-00-00

1
Out of stock

26

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

NUT(650)

95380-06700-00

1

$6.17

In stock

29

SCREW, PAN

98507-05035-00

—

$6.69

In stock

30

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

31

WIRE, DECOMPRESSION

306-26371-00-00

1
Out of stock
