1972 Yamaha XS2 (XS2) Front Fender Diagram

← All diagrams

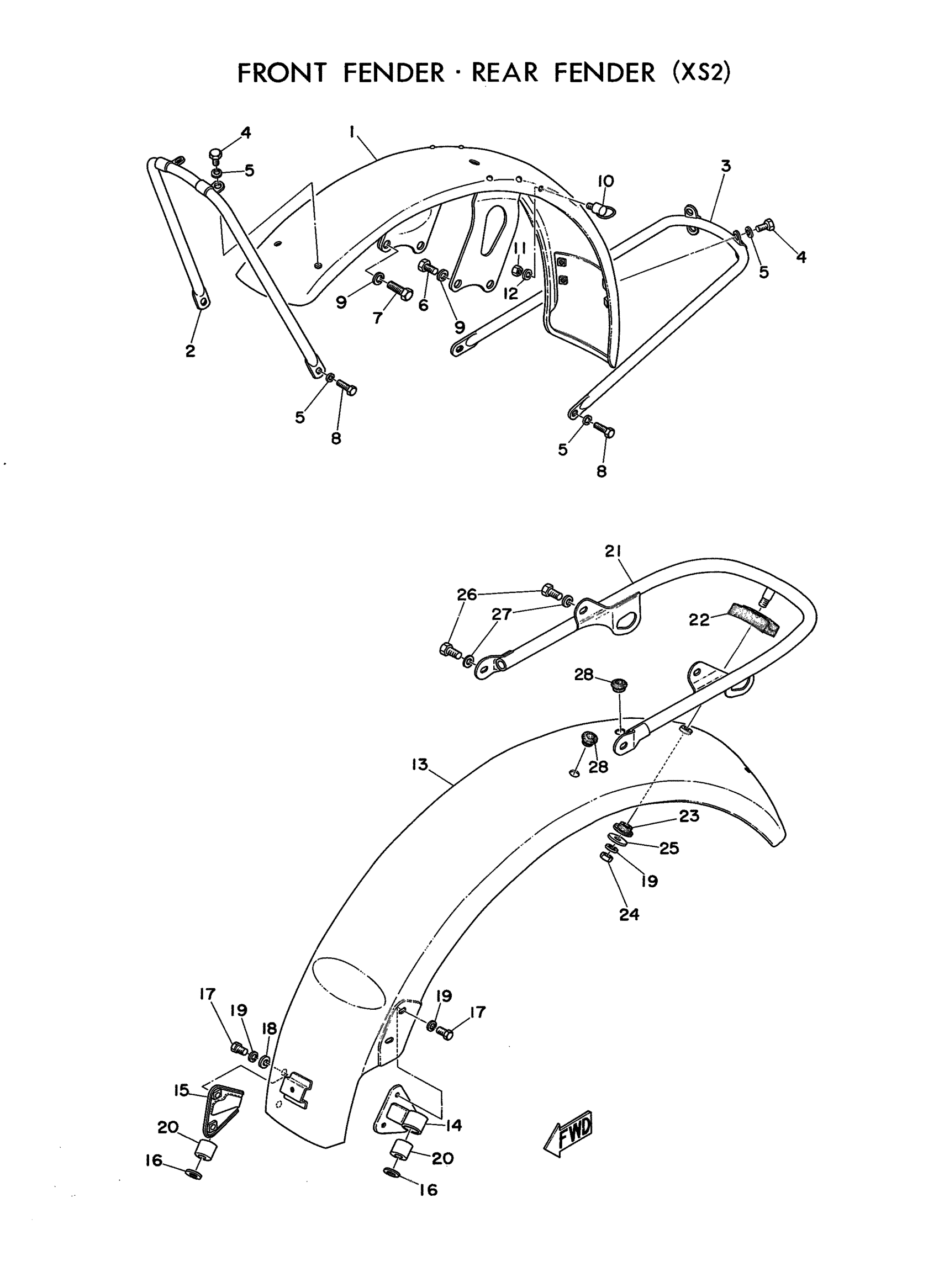

Find the part on the Front Fender diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

(306-21511-00-93)

1
Out of stock

1

FENDER FRNT (366)

(99999-01107-00)

1
Out of stock

2

STAY, FENDER 1

(306-21513-00-00)

1
Out of stock

2

STAY, FENDER 1

(366-21513-00-00)

1
Out of stock

3

STAY, FENDER 2

(306-21514-00-00)

1
Out of stock

3

STAY, FENDER 2

(366-21514-00-00)

1
Out of stock

4

BOLT (661)

97013-06012-00

1

$4.71

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

7

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

HOLDER, CABLE

(174-21518-00-00)

1
Out of stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

FENDER, REAR

(306-21611-00-93)

1
Out of stock

14

STAY, FENDER 1

256-21613-00-00

1
Out of stock

15

STAY, FENDER 2

256-21614-00-00

1
Out of stock

16

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

17

BOLT (661)

97013-06012-00

1

$4.71

In stock

18

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

DAMPER 1

256-21638-00-00

1
Out of stock

21

STAY, REAR

(256-21645-01-00)

1
Out of stock

22

DAMPER 2

256-21639-00-00

1
Out of stock

23

DAMPER

256-21649-00-00

1
Out of stock

24

NUT(650)

95380-06700-00

—

$6.17

In stock

25

WASHER PLATE 137241870000

90201-06072-00

—
Out of stock

26

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

28

GROMMET 152845180000

90480-12013-00

—
Out of stock
