1972 Yamaha XS2 (XS2) Tachometer Gear Diagram

← All diagrams

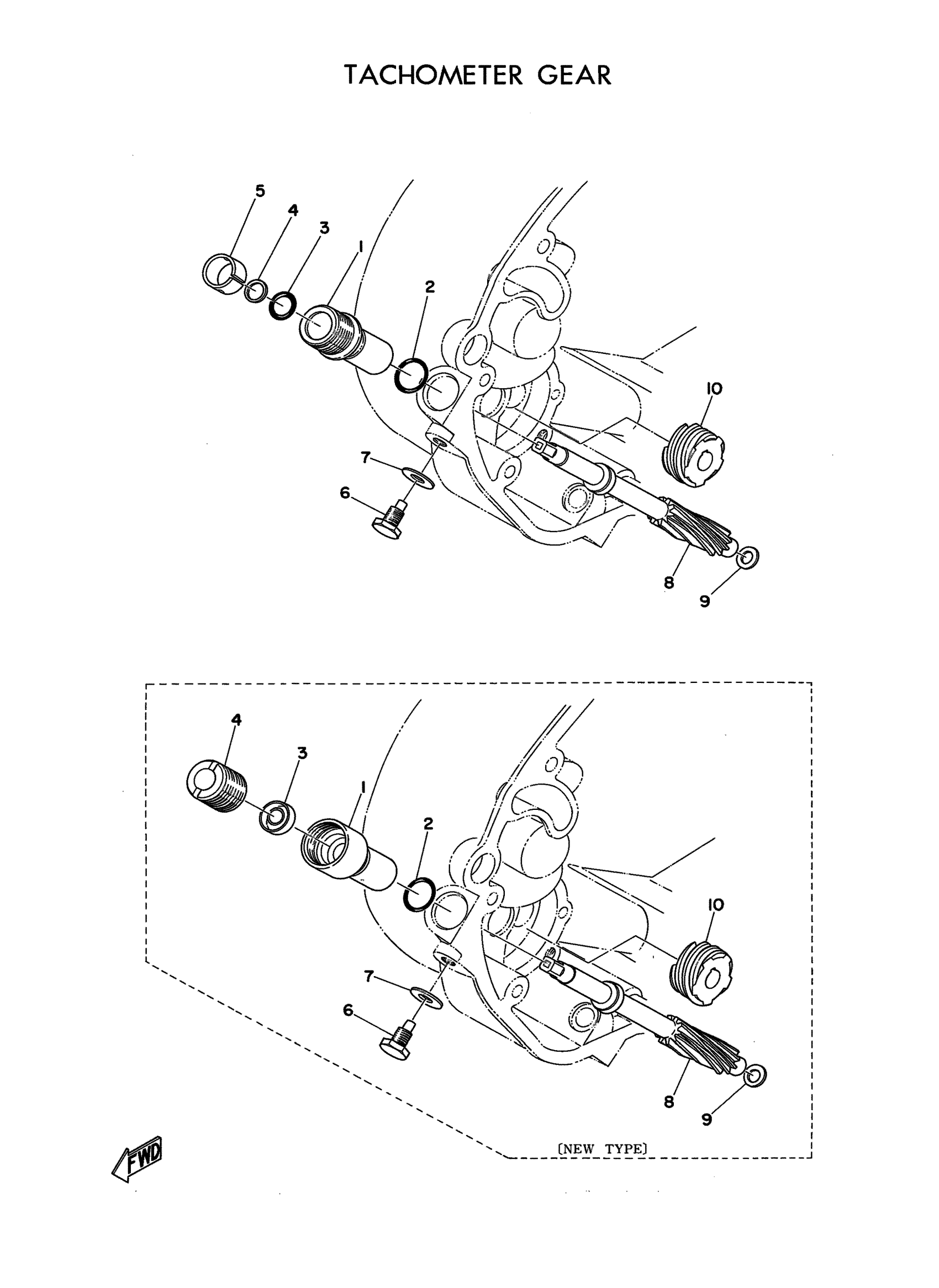

Find the part on the Tachometer Gear diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Tachometer Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, TACH GEAR

256-17811-01-00

1
Out of stock

1

HOUSING, TACH GEAR

256-17811-01-00

1
Out of stock

1

GEAR, DRIVEN

256-17841-01-00

1
Out of stock

1

ADAPTER

256-17848-00-00

1
Out of stock

1

OIL SEAL (7X13X4-256)

93104-07036-00

—
Out of stock

1

HOUSING, TACH GEAR

(99999-00908-00)

1
Out of stock

2

O-RING (1J7)

93210-11313-00

1

$6.80

In stock

3

OIL SEAL (7X13X4-256)

93104-07036-00

—
Out of stock

3

O-RING

93210-07438-00

1

$6.17

In stock

4

SHIM (7.5-10.8-0.4)

214-17847-00-00

1
Out of stock

4

ADAPTER

256-17848-00-00

1
Out of stock

5

BUSH, FORMED (214-17815-00) 001

90383-10005-00

1
Out of stock

6

BOLT

90109-06076-00

1
Out of stock

7

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

8

GEAR, DRIVEN

256-17841-01-00

1
Out of stock

8

HOUSING, TACH GEAR

(99999-00908-00)

1
Out of stock

9

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

10

GEAR, DRIVE

256-17831-00-00

1
Out of stock
