1972 Yamaha XS2 (XS2) Speedometer - Tachometer Diagram

← All diagrams

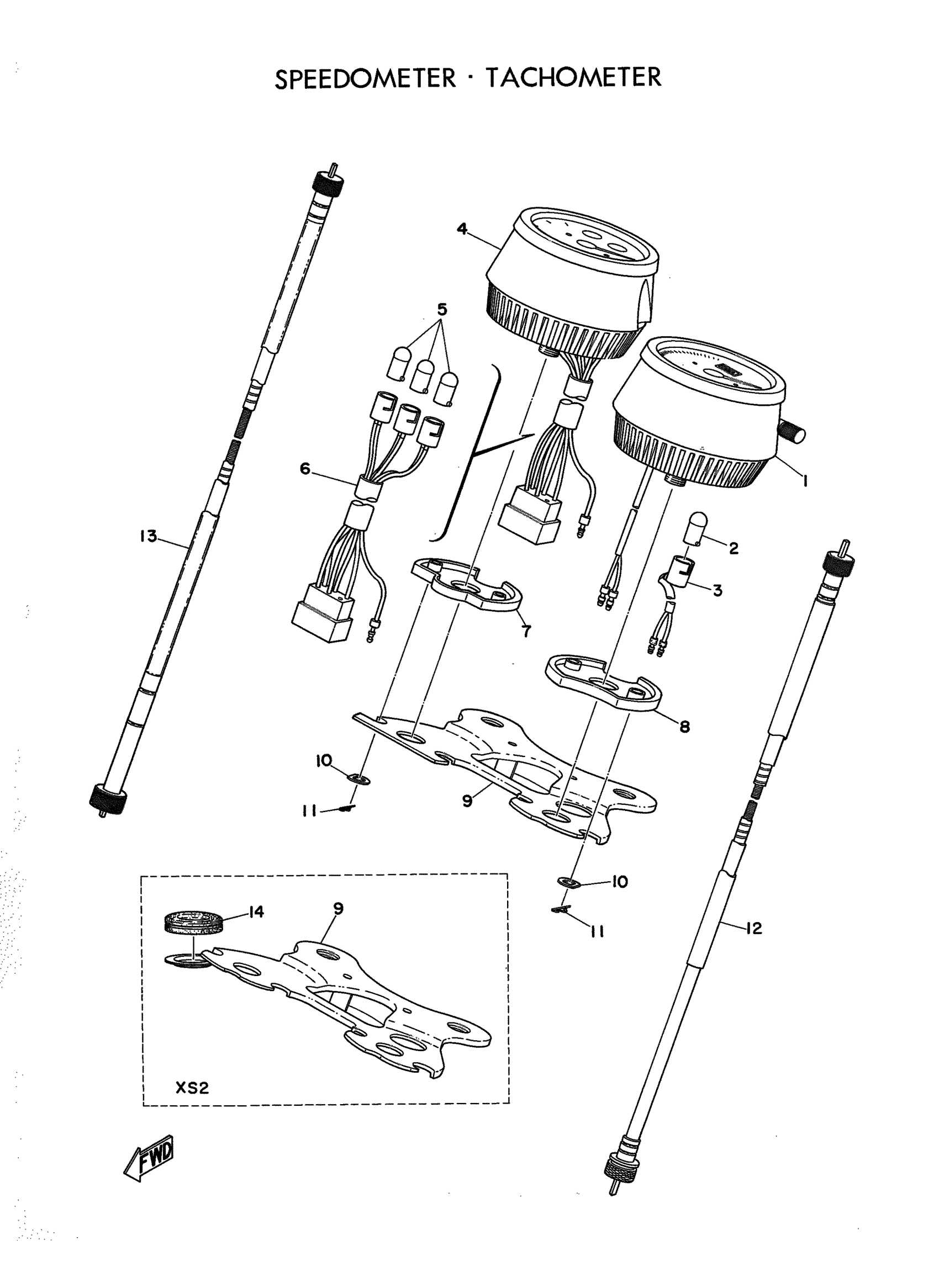

Find the part on the Speedometer - Tachometer diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

306-83570-40-00

1
Out of stock

1

SPEEDOMETER ASSEMBLY

306-83570-40-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

. SOCKET, METER

(256-83536-20-00)

1
Out of stock

4

TACHOMETER ASSEMBLY

(306-83540-00-00)

1
Out of stock

5

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

6

. SOCKET CORD ASSEMBLY

(256-83520-00-00)

1
Out of stock

7

DAMPER

237-83523-00-00

1

$8.70

In stock

8

DAMPER

237-83523-00-00

1

$8.70

In stock

8

DAMPER

(256-83523-00-00)

1
Out of stock

9

BRACKET, METER

(256-83519-00-00)

1
Out of stock

9

BRACKET, METER 000

(256-83519-01-33)

1
Out of stock

9

BRACKET, METER

(306-83519-00-00)

1
Out of stock

10

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

11

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

12

SPEEDOMETER CABLE ASSY

3VP-83550-02-00

—

$40.63

In stock

12

SPEEDOMETER CABLE (256-83550-00)

237-83550-01-00

1
Out of stock

12

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

13

TACHOMETER CABLE ASSY

3T2-83560-00-00

—

$40.22

In stock

14

GROMMET (306-26289-00)

90480-22040-00

1
Out of stock
