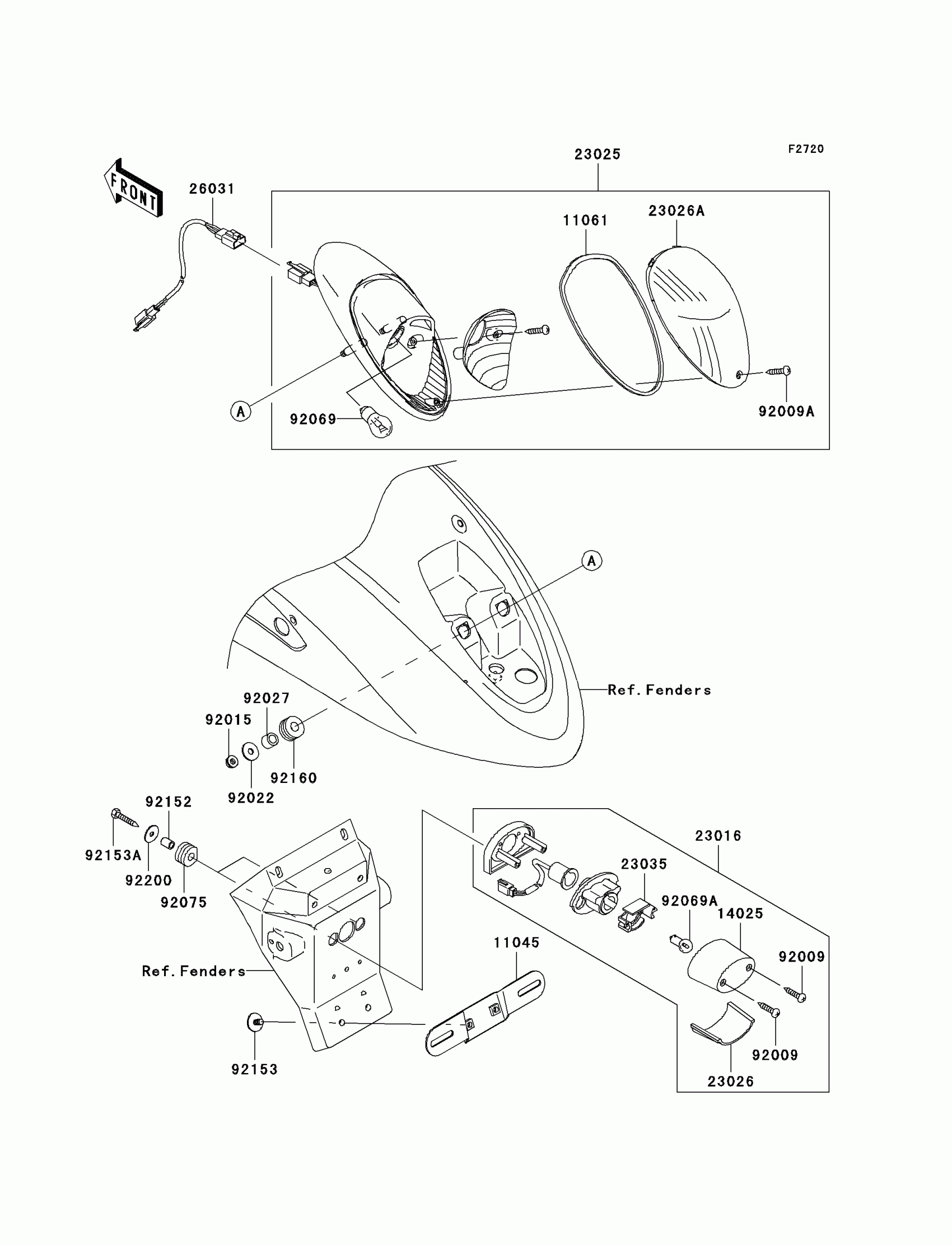

Find the part on the Taillight diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

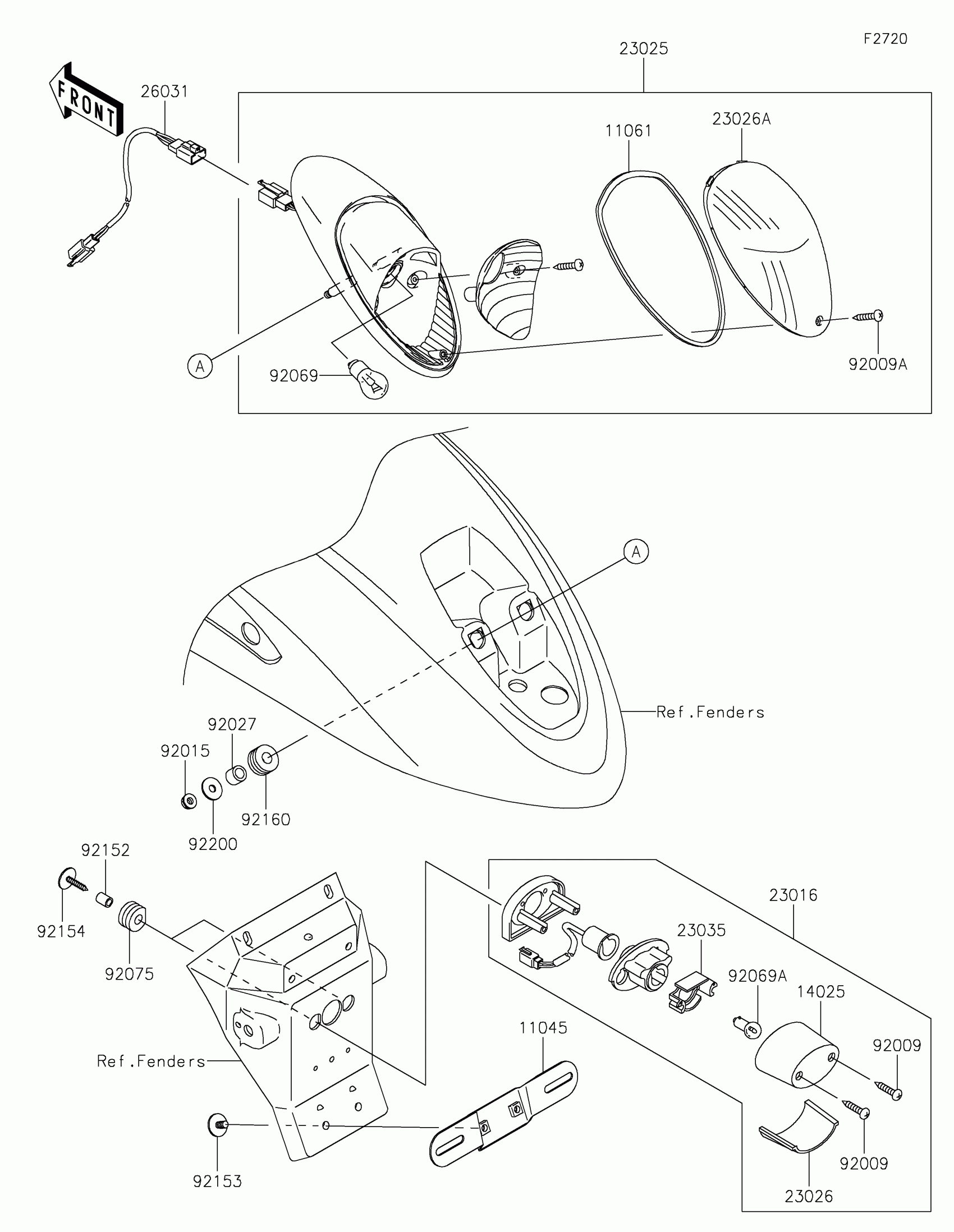

2009 Kawasaki Vulcan® 900 Custom Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,LICENSE

11045-1387

1

$13.20

In stock

11061

1

$7.76

In stock

14025

COVER,LICENSE LAMP

14025-1725

1
Out of stock

23016

LAMP-ASSY,LICENSE

23016-0010

1

$85.42

In stock

23025

LAMP-TAIL

23025-0032

1

$161.03

In stock

23026

LENS,LICENSE LAMP

23026-1064

1

$24.51

In stock

23026A

LENS,TAIL LAMP

23026-1246

1

$72.70

In stock

23035

1

$17.92

In stock

26031

HARNESS,TAIL LAMP

26031-0501

1

$38.57

In stock

92009

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92009A

SCREW,TAPPING,4X16

92009-1966

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92022

WASHER,6.5X20X1.6

92022-1557

1

$1.25

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 21/5W

92069-063

1

$7.39

In stock

92069A

BULB,12V 5W

92069-1055

1

$4.12

In stock

92075

DAMPER

92075-1870

1

$4.42

In stock

92152

COLLAR,6X9X11.5

92152-0372

1

$2.15

In stock

92153

BOLT,6X16

92153-0684

1
Out of stock

92153A

BOLT,TAPPING,5X25

92153-1424

1
Out of stock

92160

DAMPER

92160-1162

1

$3.97

In stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock
