2009 Kawasaki Vulcan® 900 Custom Ignition Switch/locks/reflectors Diagram

← All diagrams

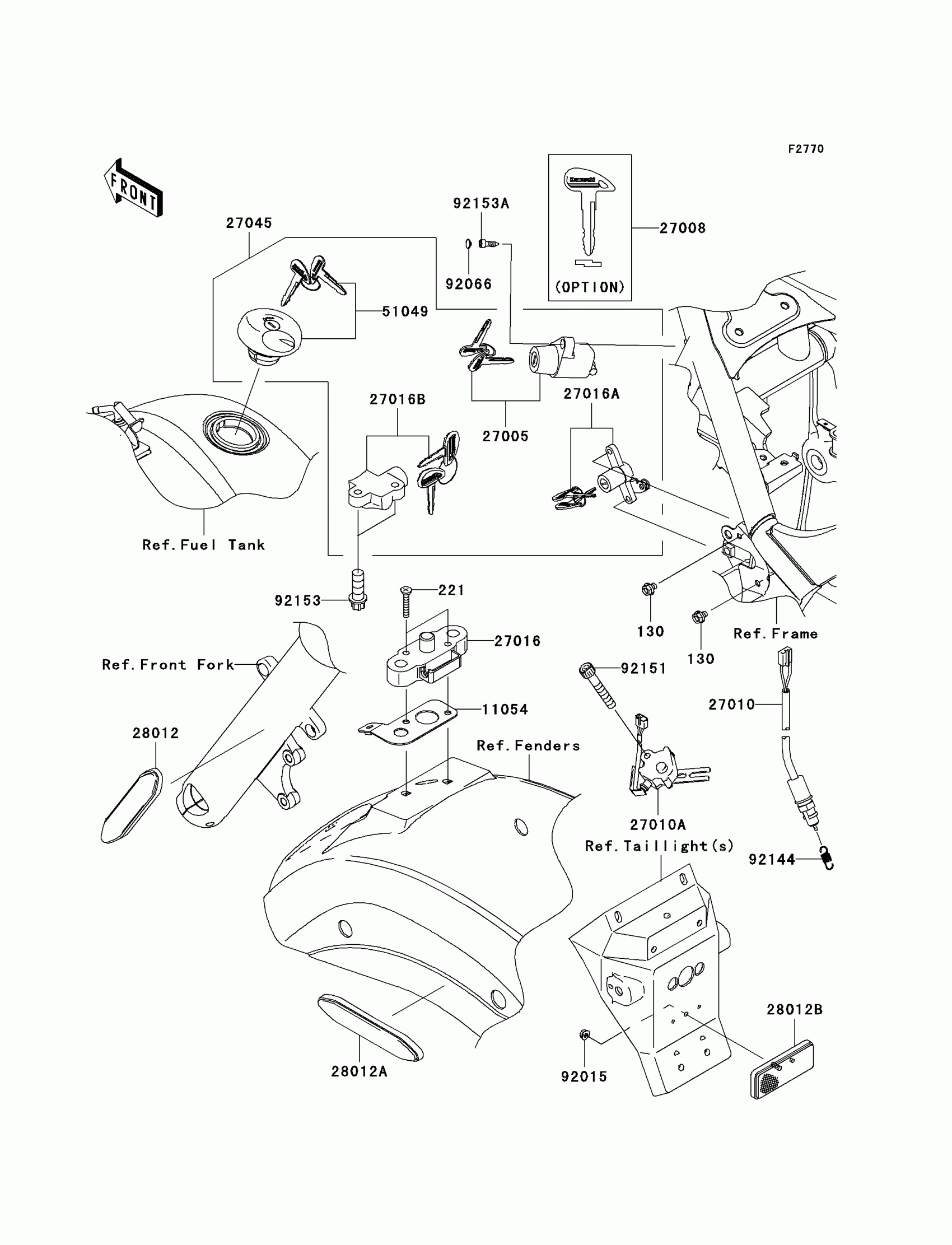

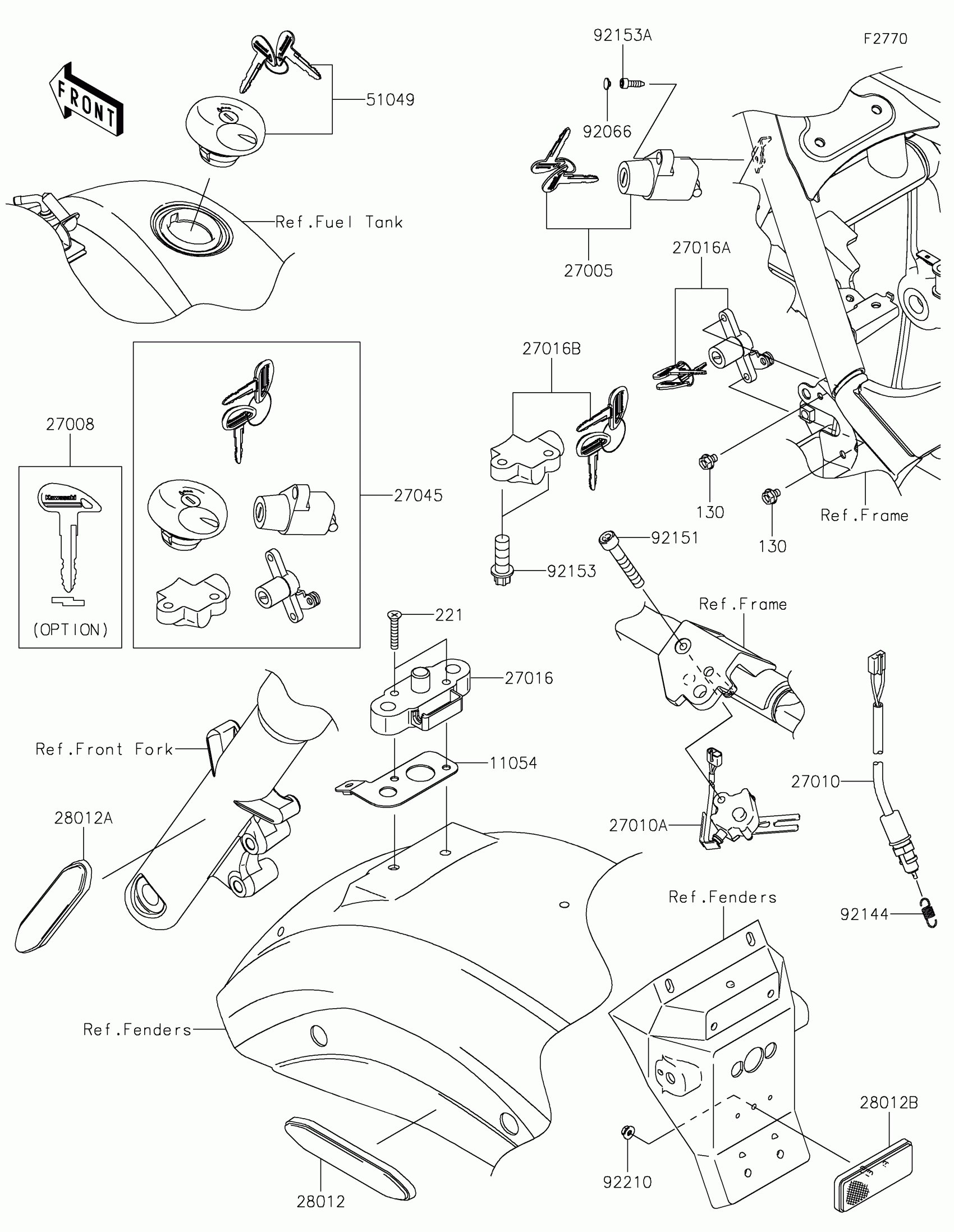

Find the part on the Ignition Switch/locks/reflectors diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X8

130BB0608

1

$5.31

In stock

221

1

$1.17

In stock

11054

BRACKET,SEAT LOCK

11054-0492

1

$8.46

In stock

27005

1

$166.80

In stock

27008

KEY-LOCK,BLANK

27008-0042

1

$26.15

In stock

27010

SWITCH,REAR BRAKE

27010-0050

1

$36.67

In stock

27010A

SWITCH,SIDE STAND

27010-1470

1

$71.61

In stock

27016

1

$86.38

In stock

27016A

LOCK-ASSY,SEAT

27016-5341

1

$69.10

In stock

27016B

LOCK-ASSY,STEERING

27016-5342

1

$113.62

In stock

27045

SWITCH-ASSY

27045-5323

1

$548.13

In stock

28012

REFLECTOR-REFLEX

28012-0009

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-0010

1

$25.24

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

51049

CAP-TANK,FUEL

51049-5001

1

$115.43

In stock

92015

NUT,FLANGED,5MM

92015-1656

1

$2.59

In stock

92066

PLUG

92066-1543

1

$2.17

In stock

92144

1

$4.34

In stock

92151

BOLT,SOCKET,6X35

92151-1390

1

$2.03

In stock

92153

BOLT,TORX,8X22

92153-1273

1
Out of stock

92153A

BOLT,SOCKET,5X16

92153-1685

1

$2.71

In stock
