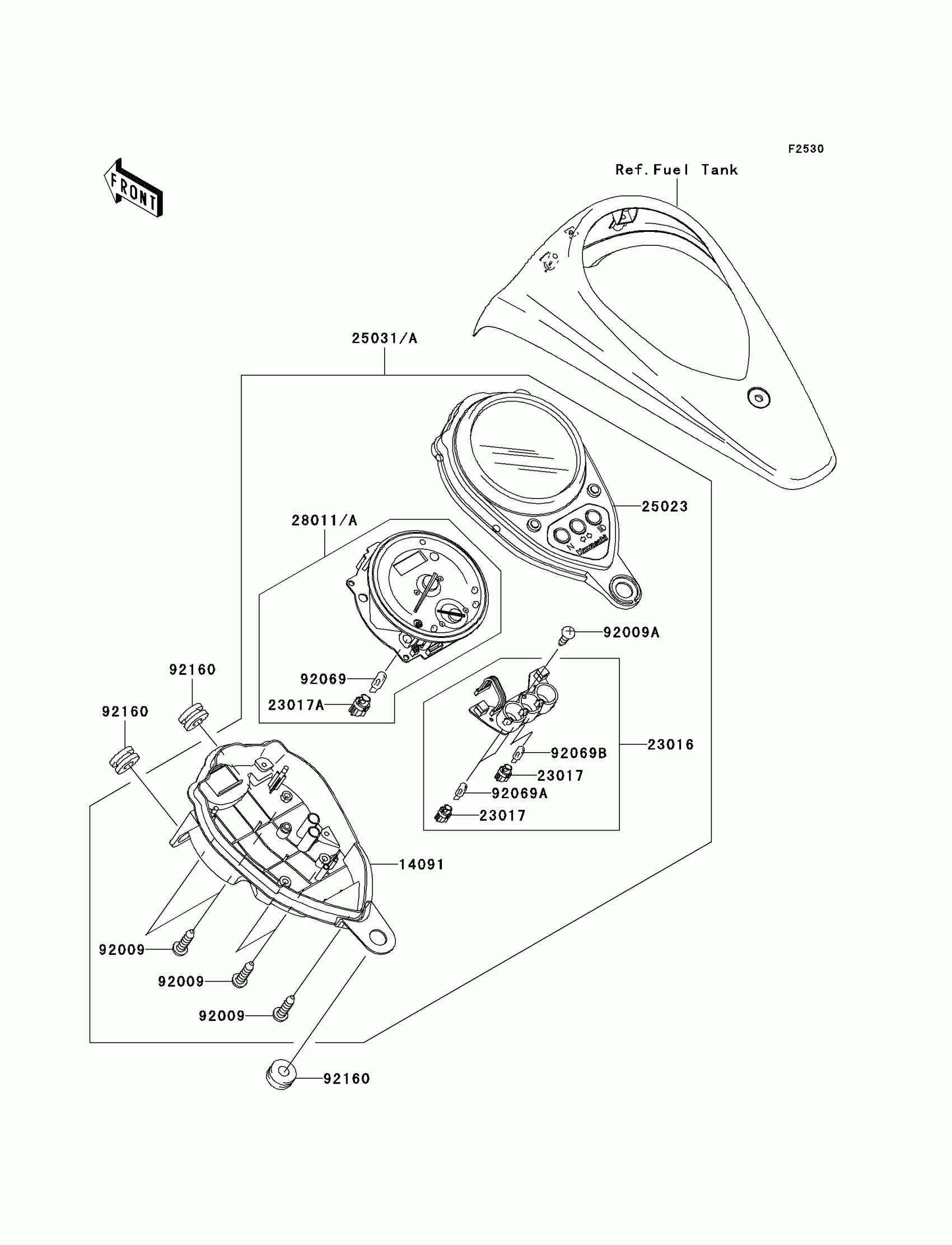

Kawasaki Vulcan® 900 Custom Meter(s) Diagram

Description

Price

14091

COVER,METER,LWR

14091-1215

$66.82

23016

LAMP-ASSY

23016-1186

$79.60

23017

SOCKET,WEDGE BASE,T-5

23017-1063

$3.71

23017A

SOCKET

23017-1064

$5.19

25023

COVER-METER CASE,UPP

25023-0017

$187.54

92009

SCREW,TAPPING,4X16

92009-1163

$3.13

92009A

SCREW,TAPPING,4X14

92009-1503

$3.20

92069

BULB,14V 3W,T6.5

92069-1068

$3.81

92069A

BULB,12V 2W,T5

92069-1105

$4.07

92069B

BULB,12V 1.4W,T5

92069-1117

$3.95

92160

DAMPER

92160-1162

$3.81

25031

METER-ASSY,MPH

25031-0103

Unavailable

25031A

METER-ASSY,KPH

25031-0104

Unavailable

28011

METER,SPEED&FUEL,MPH

28011-0048

Unavailable

28011A

METER,SPEED&FUEL,KPH

28011-0049

Unavailable
