2009 Kawasaki Vulcan® 900 Custom Ignition System Diagram

← All diagrams

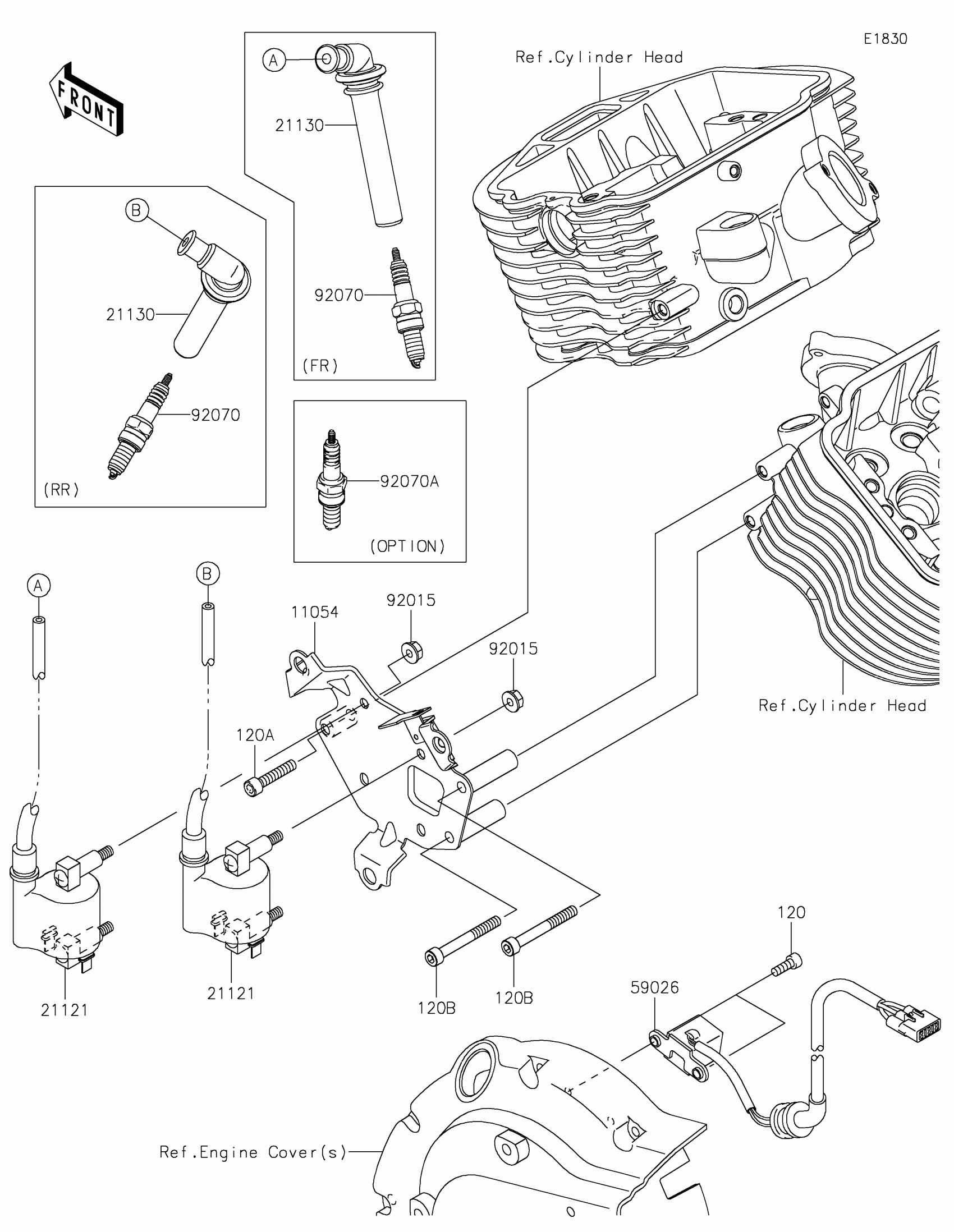

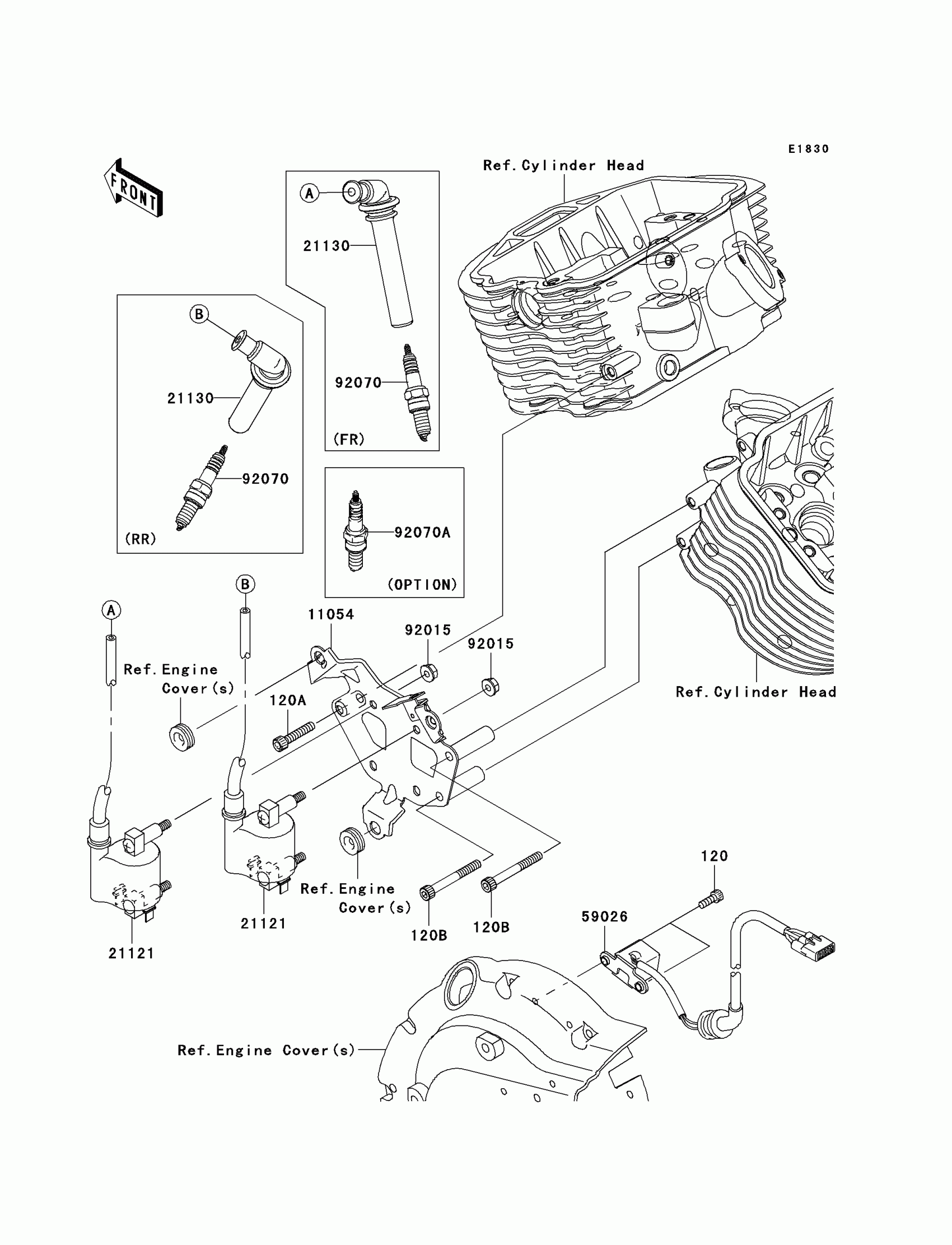

Find the part on the Ignition System diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X14

120CA0514

1

$4.44

In stock

120A

BOLT-SOCKET,6X35

120CB0635

1

$1.71

In stock

120B

BOLT-SOCKET,6X55

120CB0655

1

$2.68

In stock

11054

BRACKET,IGNITION COIL

11054-0766

1
Out of stock

21121

COIL-IGNITION

21121-0027

1

$92.99

In stock

21130

CAP-SPARK PLUG

21130-1075

1

$51.24

In stock

59026

COIL-PULSING

59026-0017

1

$104.78

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92070

—

$7.68

In stock

92070A

—

$7.68

In stock
