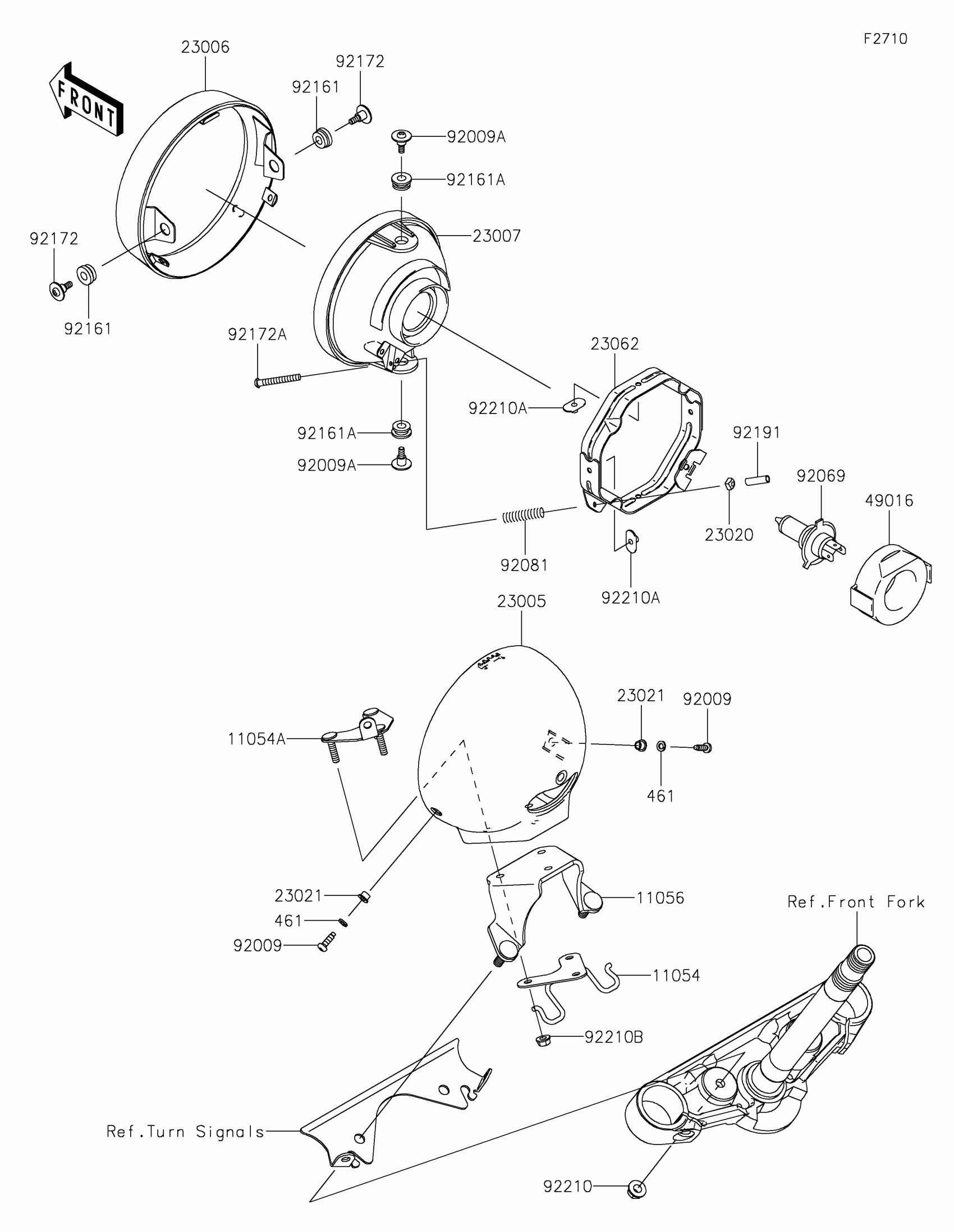

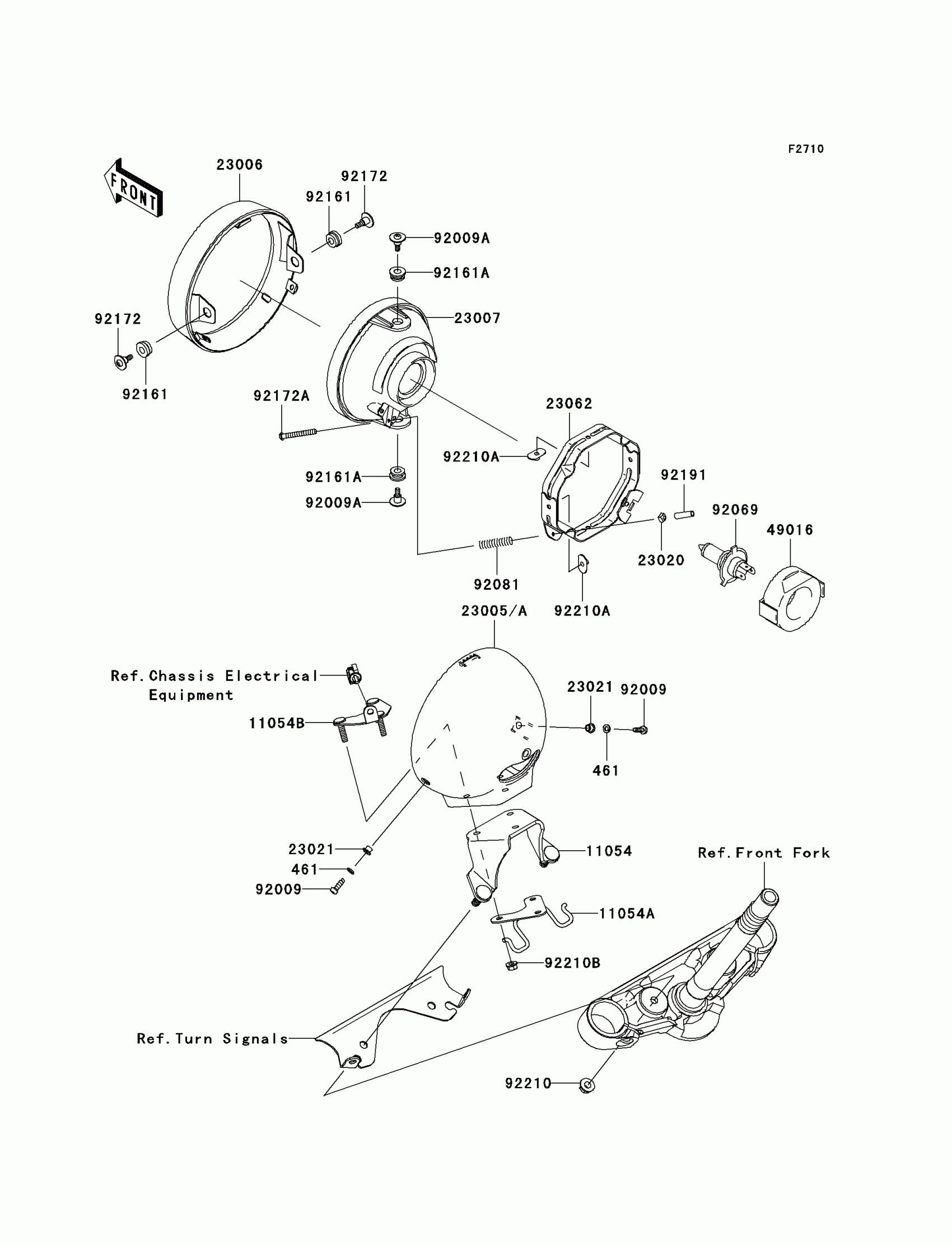

Find the part on the Headlight diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

461

1

$0.54

In stock

11054

BRACKET,HEAD LAMP

11054-0747

1

$72.45

In stock

11054A

1

$14.39

In stock

11054B

BRACKET,HEAD LAMP

11054-1391

1

$14.39

In stock

23005

BODY-COMP-HEAD LAMP

23005-0021

1

$166.06

In stock

23006

RIM-LAMP

23006-0013

1

$88.95

In stock

23007

LENS-COMP,HEAD LAMP

23007-0081

1

$159.22

In stock

23020

1

$3.69

In stock

23021

WASHER

23021-010

1

$3.43

In stock

23062

1

$53.81

In stock

49016

1

$11.80

In stock

92009

SCREW,5MM

92009-1947

1
Out of stock

92009A

SCREW,5MM

92009-1956

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92081

1

$4.10

In stock

92161

DAMPER

92161-1187

1

$2.25

In stock

92161A

DAMPER

92161-1188

1

$2.25

In stock

92172

SCREW

92172-0293

1

$2.15

In stock

92172A

1

$3.51

In stock

92191

TUBE,3.5X5.5X19

92191-1217

1

$2.02

In stock

92210

NUT,FLANGED,8MM

92210-0004

1
Out of stock

92210A

NUT,5MM

92210-0364

1
Out of stock

92210B

NUT,FLANGED,6MM

92210-0368

1
Out of stock
