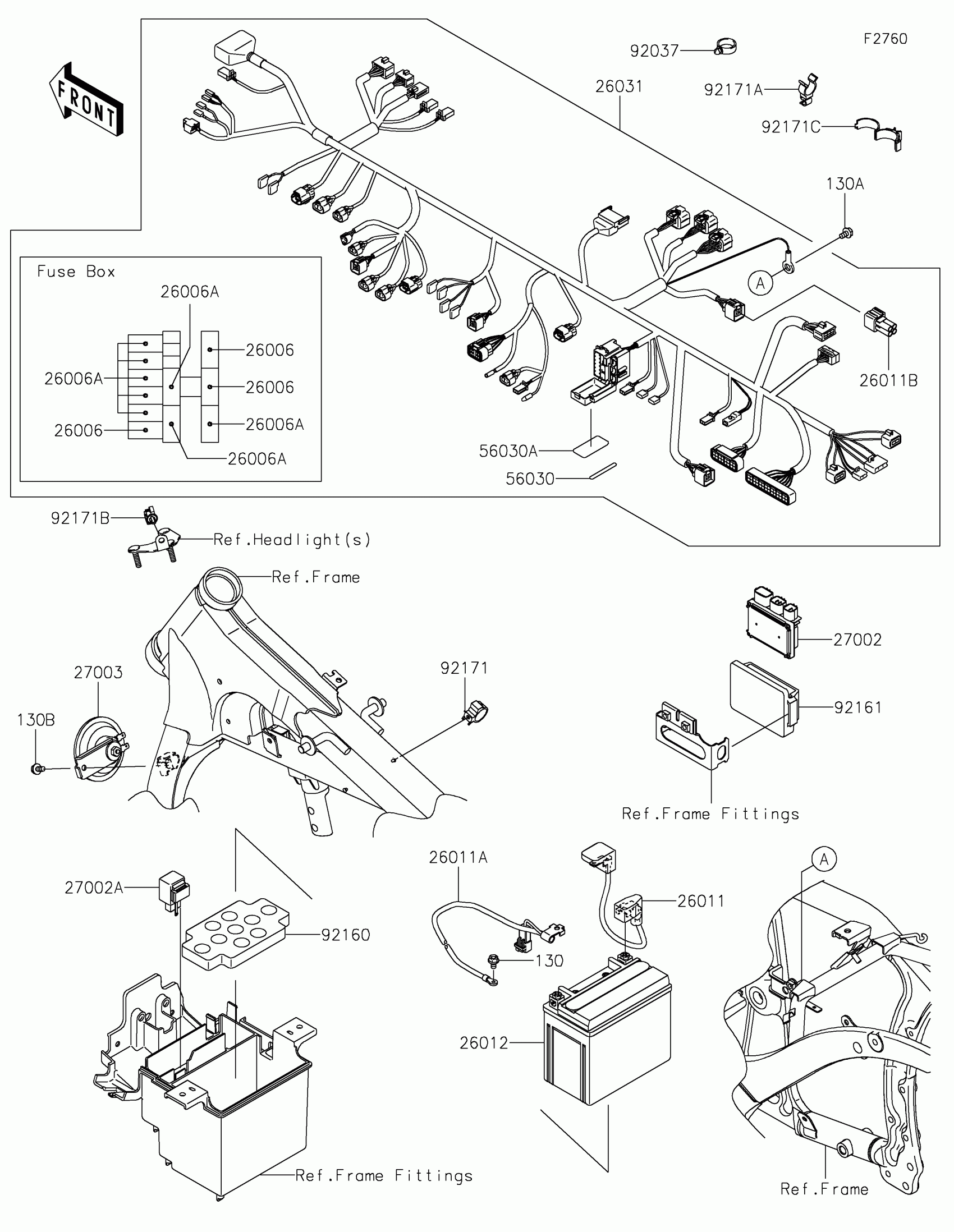

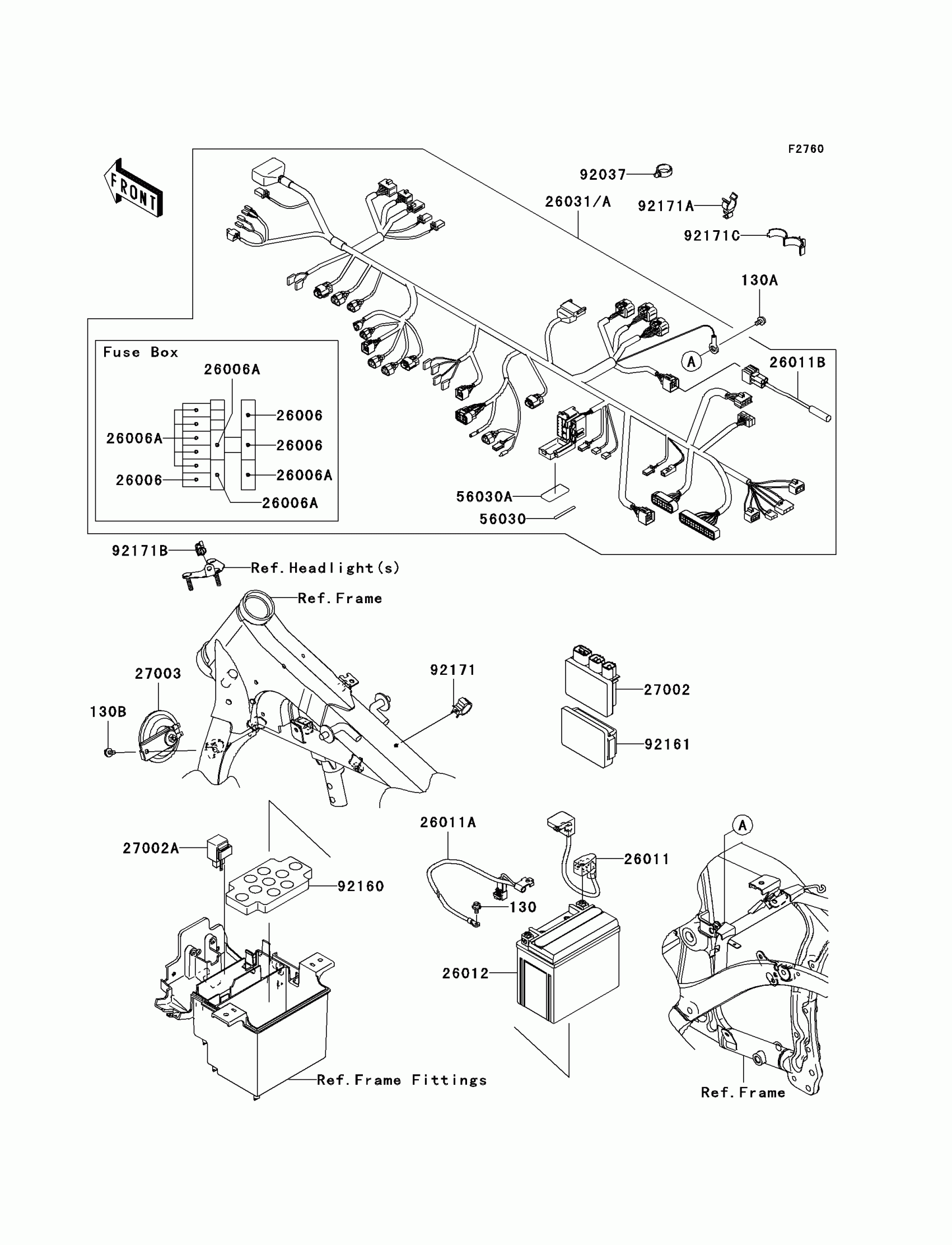

Find the part on the Chassis Electrical Equipment diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

130B

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0089

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-0090

1
Out of stock

26011B

WIRE-LEAD,DIAGNOSIS

26011-1774

1
Out of stock

26012

BATTERY,YTX12-BS,12V 10AH

26012-0094

1
Out of stock

26031A

HARNESS,MAIN

26031-0731

1
Out of stock

27002

RELAY-ASSY

27002-0007

1
Out of stock

27002A

RELAY-ASSY,TURN SIGNAL

27002-1101

1
Out of stock

27003

HORN

27003-0048

1
Out of stock

56030

LABEL,FUSE BOX

56030-0016

1
Out of stock

56030A

LABEL,FUSE BOX

56030-0046

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92160

DAMPER,BATTERY

92160-1635

1
Out of stock

92161

DAMPER,RELAY BOX

92161-0203

1
Out of stock

92171

CLAMP,20MM DIA.

92171-0081

1
Out of stock

92171A

CLAMP,CABLE

92171-0347

1
Out of stock

92171B

CLAMP,13MM DIA.

92171-1415

1
Out of stock

92171C

CLAMP,10MM DIA.

92171-1423

1
Out of stock
