1989 Kawasaki Vulcan 750 Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

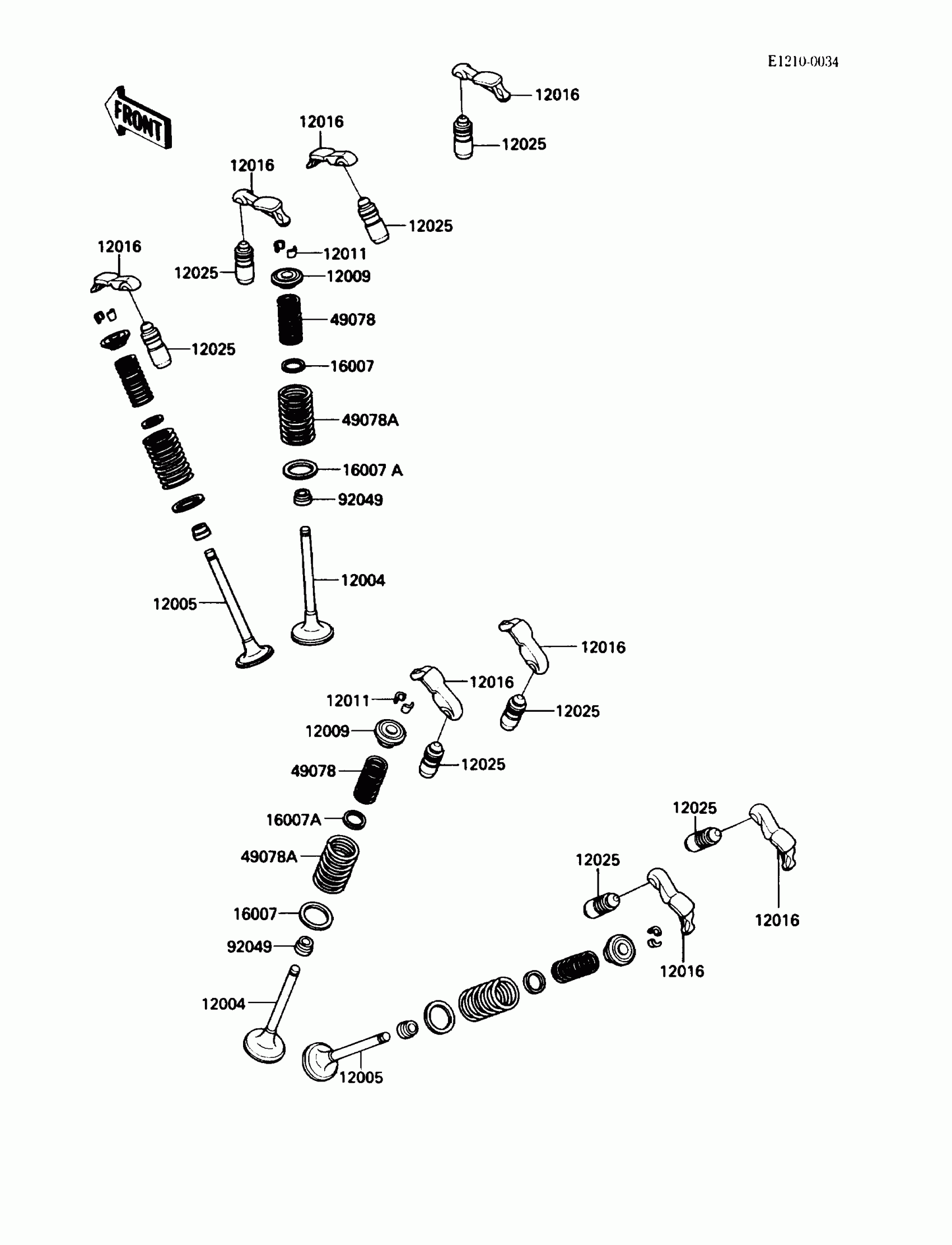

1989 Kawasaki Vulcan 750 Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1061

1
Out of stock

12005

VALVE-EXHAUST

12005-1064

1
Out of stock

12009

1

$8.61

In stock

12011

COLLET

12011-1003

1

$3.69

In stock

12016

ARM-ROCKER

12016-1053

1

$94.14

In stock

12025

ADJUSTER-LASH

12025-1052

1

$111.08

In stock

16007

1

$4.88

In stock

16007A

1

$4.85

In stock

49078

1

$15.64

In stock

49078A

1

$15.64

In stock

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

1
Out of stock
