1989 Kawasaki Vulcan 750 Crankcase Diagram

← All diagrams

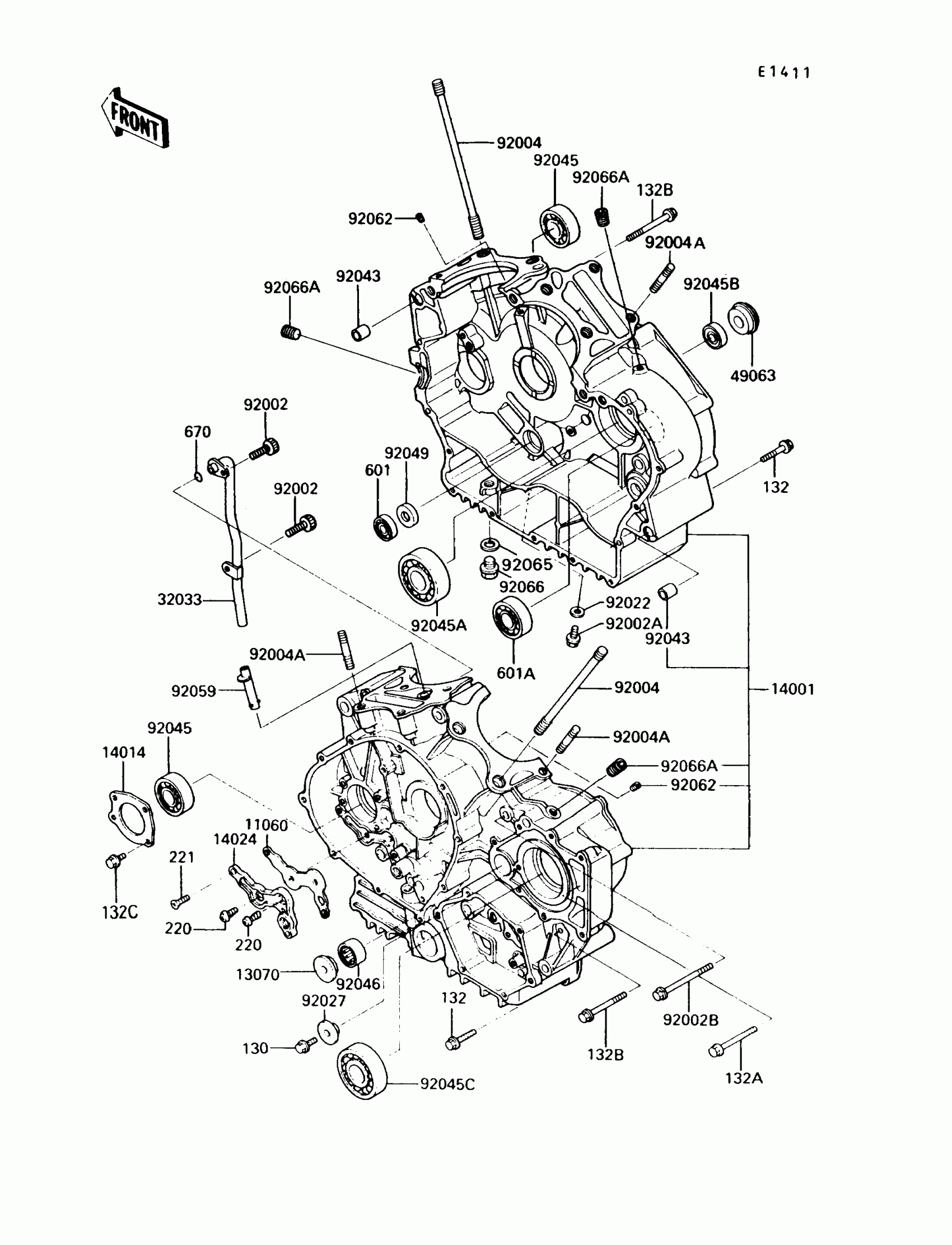

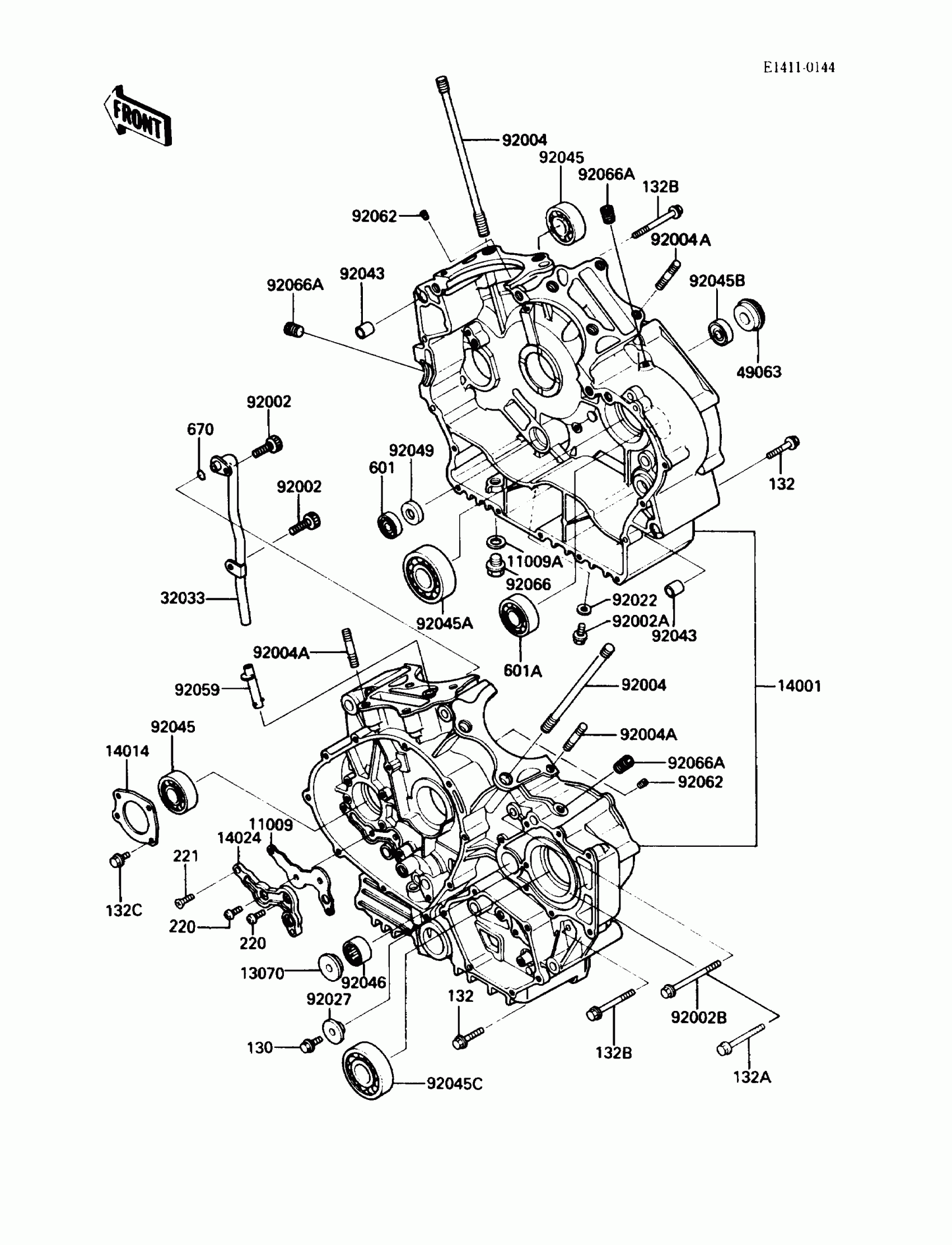

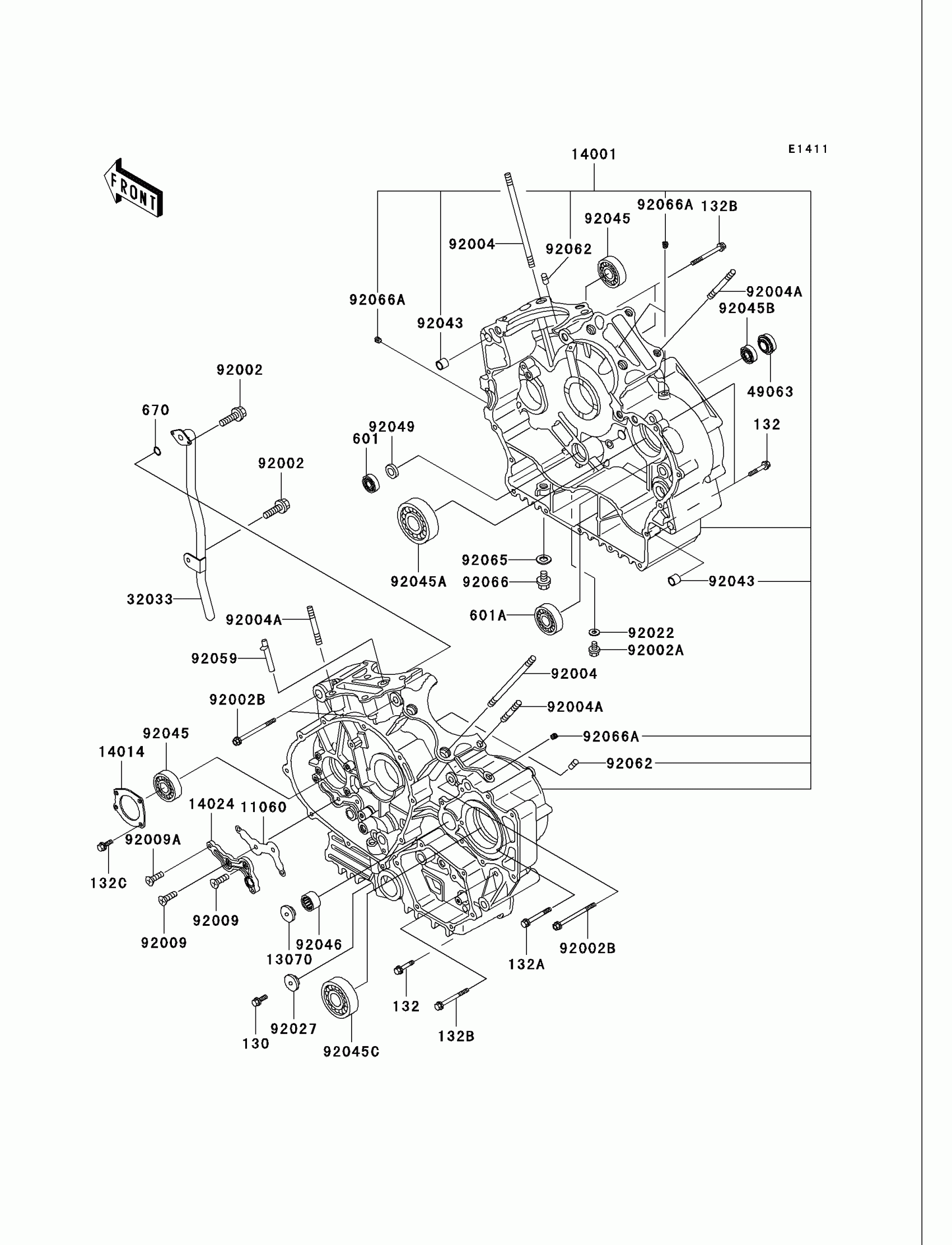

Find the part on the Crankcase diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,OIL LINE COVER

11009-1471

1
Out of stock

11009A

GASKET,12X22X2

92065-097

1

$0.76

In stock

13070

GUIDE

13070-1127

1

$21.85

In stock

14001

SET-CRANKCASE

14001-5205

1
Out of stock

14014

PLATE-POSITION

14014-1068

1
Out of stock

14024

COVER,OIL LINE

14024-1074

1
Out of stock

32033

PIPE,BREATHER

32033-1649

1

$46.87

In stock

49063

SEAL-MECHANICAL

49063-1052

1

$44.44

In stock

92002

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92002A

BOLT,6X10

92002-1628

1
Out of stock

92002B

BOLT,10X80

92002-1629

1
Out of stock

92004

STUD,10X163

92004-1140

1
Out of stock

92004A

STUD,8X28.5

92004-1142

1
Out of stock

92022

1

$3.13

In stock

92027

COLLAR

92027-1844

1

$10.63

In stock

92043

PIN,11X14X12.3

92043-1266

1

$1.00

In stock

92045

1

$32.85

In stock

92045A

BEARING-BALL,TMB305

92045-1137

1

$50.56

In stock

92045B

1

$24.30

In stock

92045C

1

$54.73

In stock

92046

1

$19.34

In stock

92049

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock

92059

TUBE

92059-1620

1

$11.29

In stock

92062

NOZZLE,BLACK

92062-011

1

$8.37

In stock

92066

1

$4.88

In stock

92066A

PLUG,PT1/8X7

92066-1227

1

$5.15

In stock

130

1

$1.53

In stock

132

1

$5.42

In stock

132A

BOLT-FLANGED-SMALL,6X40

132E0640

1
Out of stock

132B

1

$4.19

In stock

132C

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

221

1

$1.98

In stock

601

BEARING-BALL

601A6001

1

$9.26

In stock

601A

BEARING-BALL

601A6204Z

1

$30.56

In stock

670

O RING,8MM

670B1508

1

$1.17

In stock
