1989 Kawasaki Vulcan 750 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

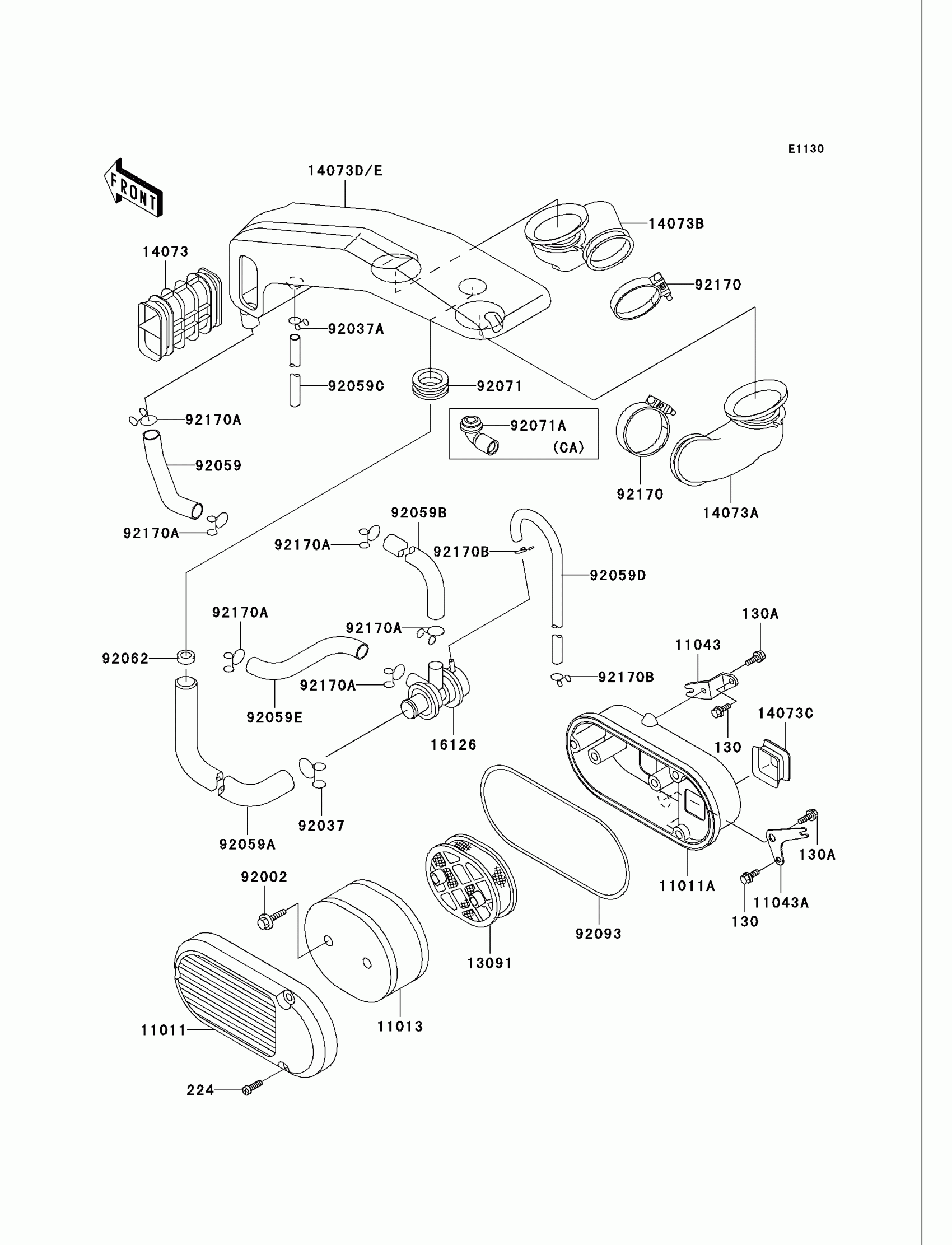

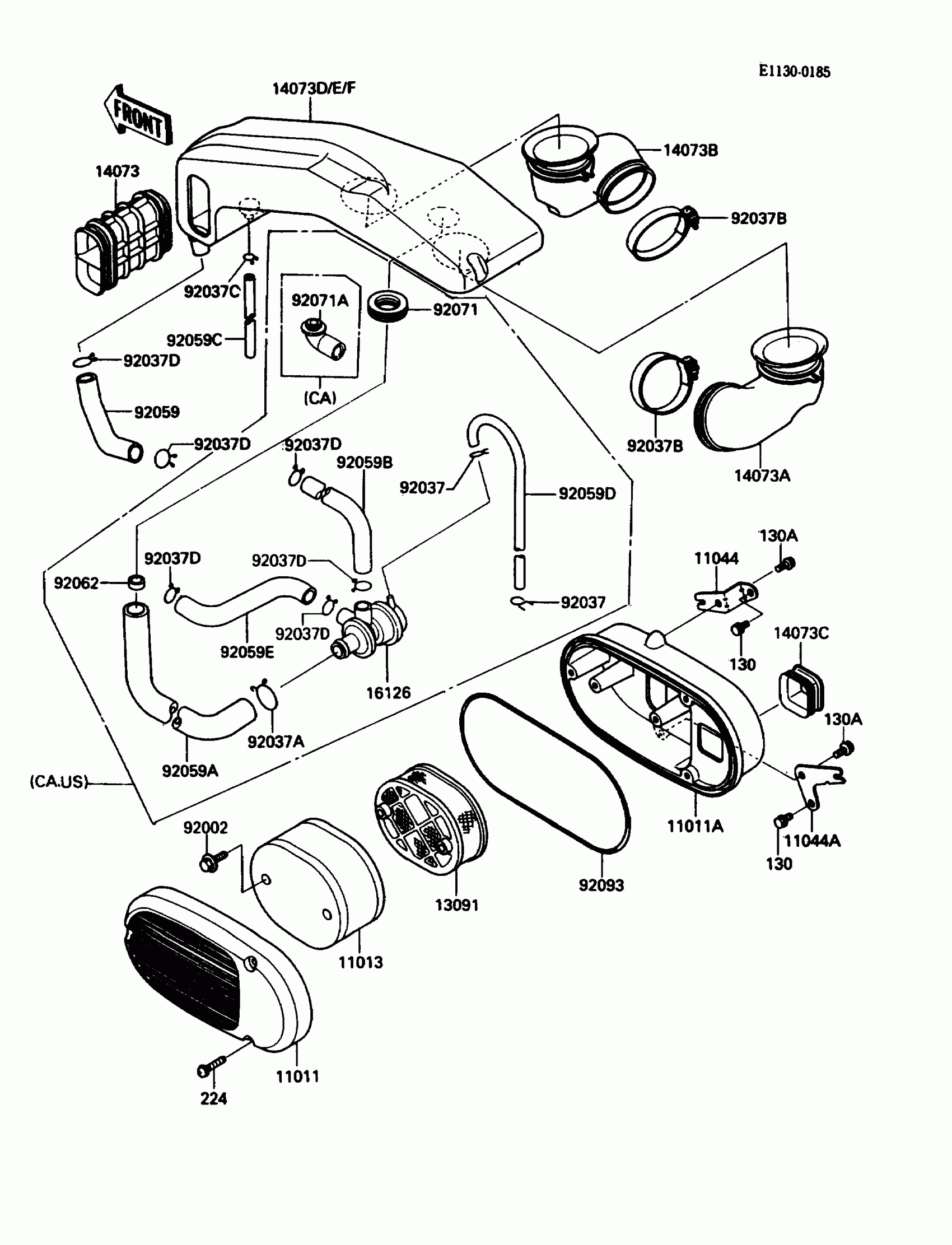

1989 Kawasaki Vulcan 750 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

1

$94.14

In stock

11011A

1

$124.83

In stock

11013

ELEMENT-AIR FILTER

11013-1122

1

$26.40

In stock

11044

1

$8.07

In stock

11044A

1

$7.15

In stock

13091

HOLDER,ELEMENT

13091-1345

1

$69.44

In stock

14073

DUCT,AIR FILTER

14073-1197

1
Out of stock

14073A

DUCT,FR,CARBURATOR

14073-1199

1

$84.95

In stock

14073B

DUCT,RR,CARBURATOR

14073-1200

1

$81.10

In stock

14073C

DUCT,INLET

14073-1209

1

$13.78

In stock

14073D

DUCT,MAIN

14073-1281

1

$137.89

In stock

14073E

DUCT,MAIN

14073-1282

1

$137.89

In stock

14073F

DUCT,MAIN

14073-1283

1
Out of stock

16126

VALVE,AIR SWITCH

16126-1139

1

$204.57

In stock

92002

BOLT,6X25

92002-1137

1

$3.49

In stock

92037

CLAMP,TUBE

92037-072

1

$5.74

In stock

92037A

CLAMP,TUBE

92037-1076

1

$7.14

In stock

92037B

CLAMP

92037-115

1

$10.63

In stock

92037C

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037D

CLAMP,TUBE

92037-213

1

$3.43

In stock

92037D

CLAMP,TUBE

92037-213

1

$3.43

In stock

92059

TUBE,15X20X116

92059-1512

1

$13.03

In stock

92059A

TUBE,19X25X600

92059-1537

1

$31.00

In stock

92059B

TUBE

92059-1587

1

$48.18

In stock

92059C

TUBE

92059-1603

1

$14.51

In stock

92059D

TUBE,4X9X330

92059-1617

1

$11.29

In stock

92059E

TUBE

92059-1618

1

$21.78

In stock

92062

NOZZLE,7X20.3X10

92062-1061

1

$13.88

In stock

92071

GROMMET,AIR FILTER

92071-1013

1

$5.61

In stock

92071A

GROMMET,AIR FILTER

92071-1114

1
Out of stock

92093

SEAL,AIR FILTER

92093-1177

1
Out of stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130C0612

1
Out of stock

224

SCREW-PAN-WP-CROS,6X30

224C0630

1
Out of stock
