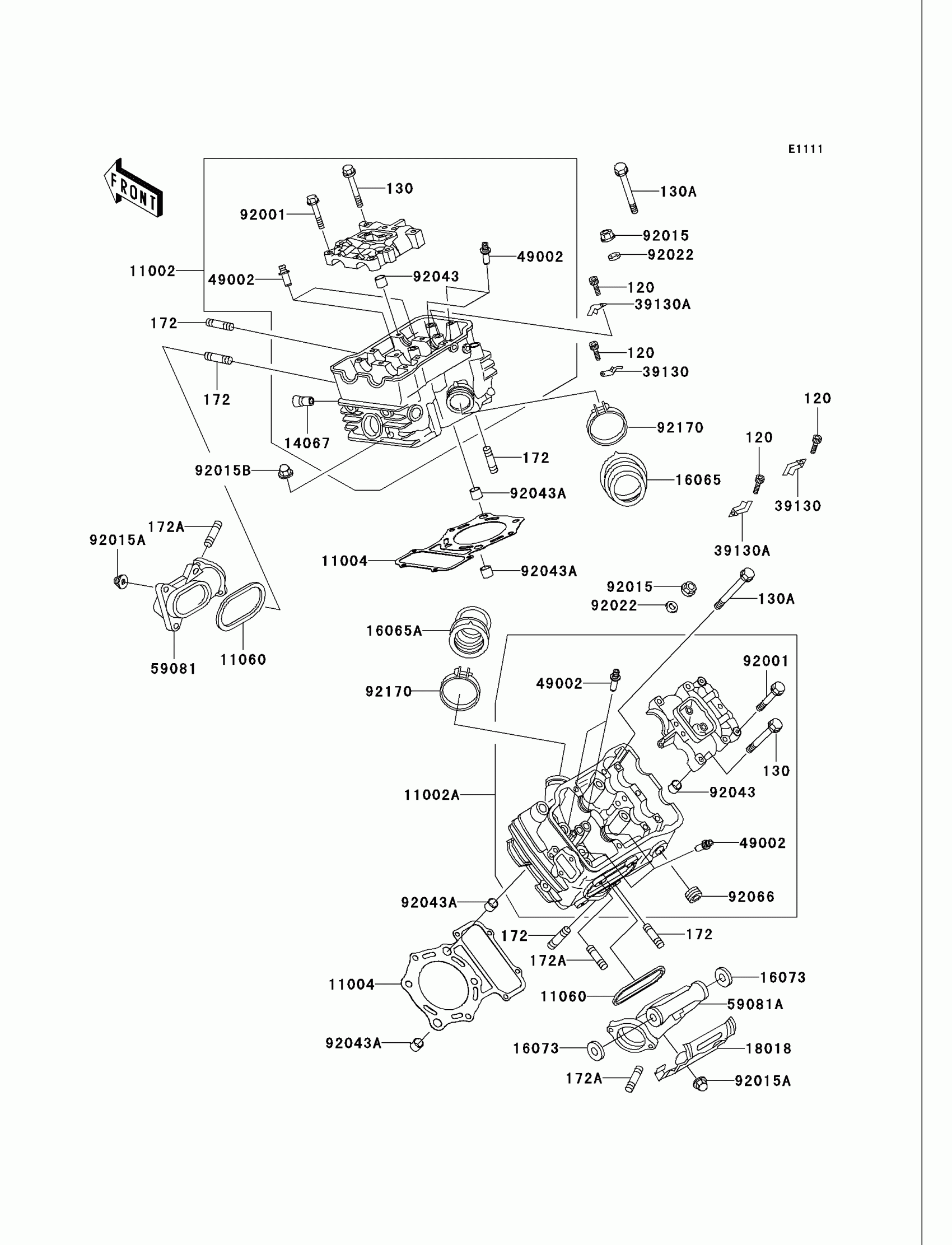

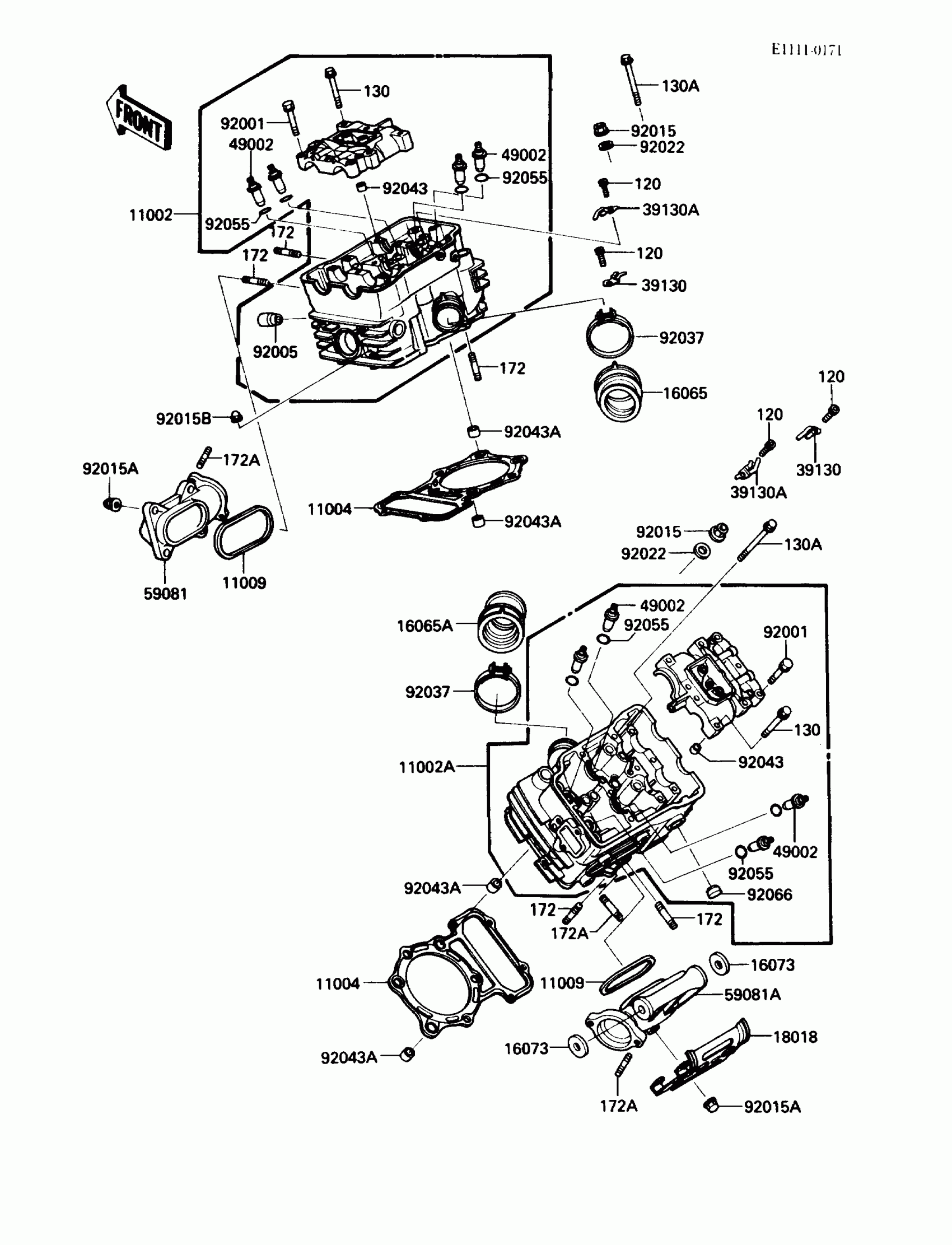

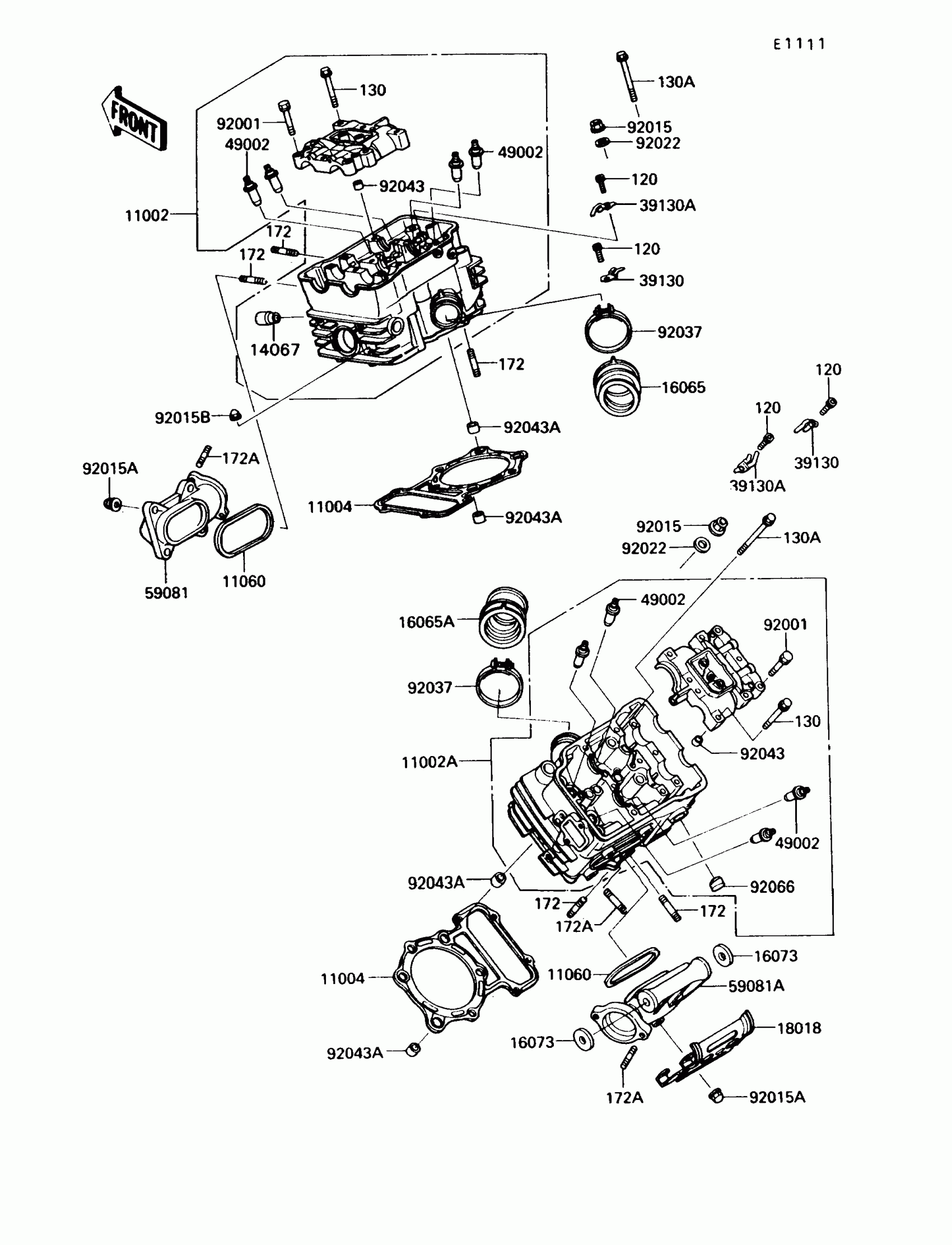

Find the part on the Cylinder Head diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11002

1

$1,179.28

In stock

11002A

1

$1,179.28

In stock

11004

GASKET-HEAD

11004-1135

1

$50.97

In stock

11009

GASKET,MANIFOLD

11009-1458

1
Out of stock

16065

1

$45.66

In stock

16065A

1

$45.66

In stock

16073

INSULATOR

16073-1058

1

$36.93

In stock

18018

PLATE-HEAT GUARD

18018-1065

1

$37.99

In stock

39130

1

$5.76

In stock

39130A

1

$7.44

In stock

49002

GUIDE-VALVE

49002-1052

1

$38.92

In stock

59081

MANIFOLD-EXHAUST,FR

59081-1125

1

$210.60

In stock

59081A

MANIFOLD-EXHAUST,RR

59081-1141

1

$285.44

In stock

92001

BOLT,FLANGED,6X38

92001-1105

1

$3.72

In stock

92005

FITTING,BREATHER

14067-006

1

$19.78

In stock

92015

NUT,FLANGED CAP,10MM

92015-076

1
Out of stock

92015A

NUT,CAP,8MM

92015-1370

1
Out of stock

92015B

NUT,CAP,6MM

92015-1385

1

$3.43

In stock

92022

WASHER,10.5X20X1.6

92022-1591

1

$3.88

In stock

92037

CLAMP

92037-1632

1

$6.44

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043A

PIN,11X14X12.3

92043-1266

1

$1.00

In stock

92055

RING-O,11.7MM

92055-1265

1

$8.35

In stock

92066

PLUG,BREATHER

92066-1035

1

$12.36

In stock

120

BOLT-SOCKET,6X14

120P0614

1
Out of stock

130

BOLT-FLANGED,6X45

130P0645

1
Out of stock

130A

BOLT-FLANGED,6X75

130P0675

1
Out of stock

172

BOLT-STUD,8X25

172G0825

1

$2.56

In stock

172A

BOLT-STUD,8X30

172G0830

1

$2.12

In stock
