1989 Kawasaki Vulcan 750 Crankshaft Diagram

← All diagrams

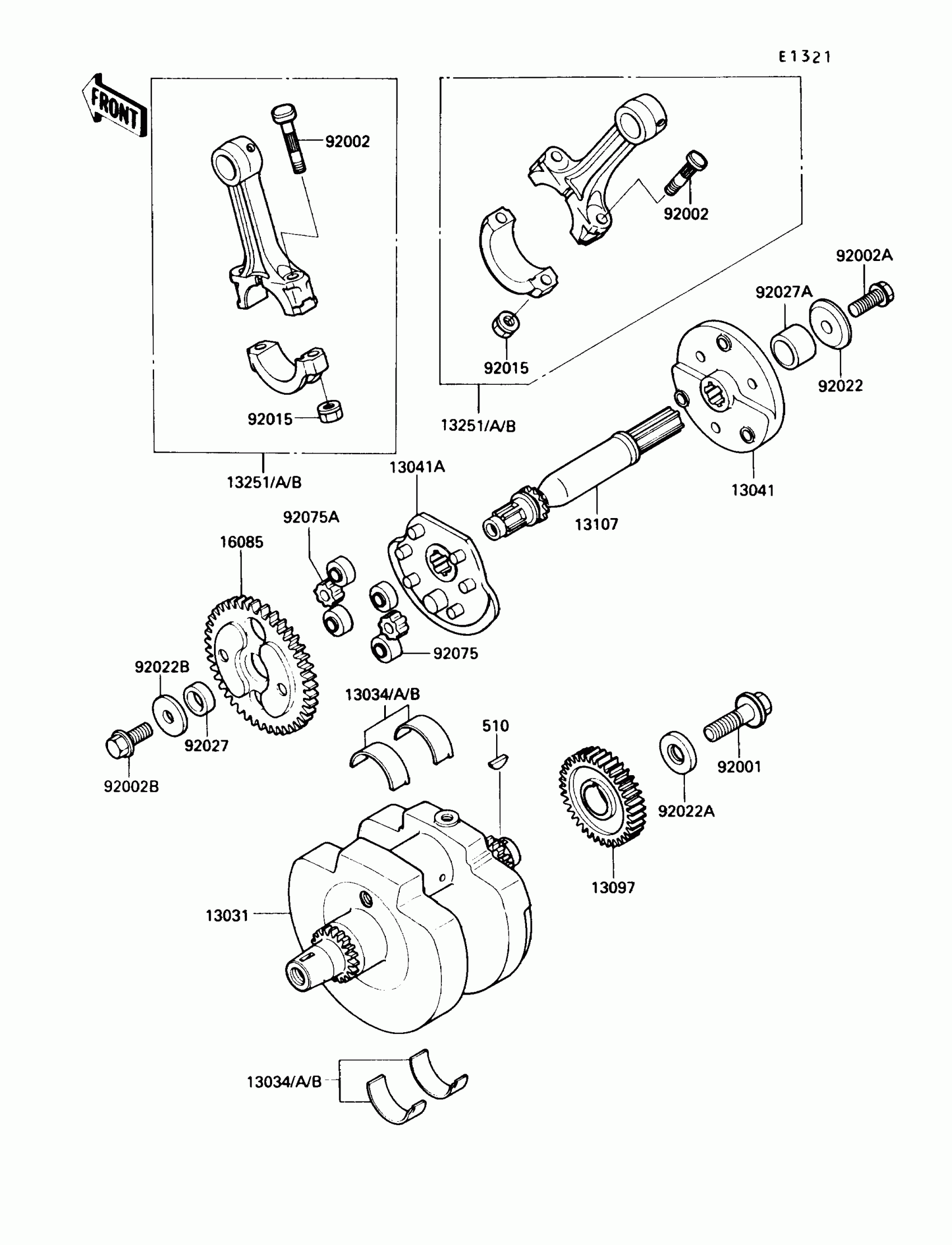

Find the part on the Crankshaft diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1202

1

$1,172.18

In stock

13034

—

$14.72

In stock

13034A

—

$14.72

In stock

13034B

—

$21.66

In stock

13041

BALANCER,RH

13041-1065

1

$159.72

In stock

13041A

BALANCER,LH

13041-1068

1

$124.83

In stock

13097

1

$108.98

In stock

13107

SHAFT,BALANCER

13107-1146

1

$182.36

In stock

13251

ROD-ASSY-CONNECTING,G

13251-1055-GG

1
Out of stock

13251A

ROD-ASSY-CONNECTING,H

13251-1055-HH

1
Out of stock

13251B

ROD-ASSY-CONNECTING,I

13251-1055-II

1
Out of stock

16085

GEAR,BALANCER,42T

16085-1148

1

$208.68

In stock

92001

BOLT,FLANGED,12X40

92001-1146

1

$9.58

In stock

92002

BOLT,CONNECTING ROD

92002-1405

1

$9.29

In stock

92002A

BOLT,10X25

92002-1635

1
Out of stock

92002B

BOLT,10X25

92002-1636

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1481

1

$7.49

In stock

92022

WASHER

92022-1631

1
Out of stock

92022A

WASHER,12X32X6

92022-1639

1

$21.97

In stock

92022B

WASHER,10X32X4.5

92022-1641

1

$10.92

In stock

92027

COLLAR,16X24X8.5

92027-1859

1

$31.43

In stock

92027A

COLLAR,20X28X19.5

92027-1860

1
Out of stock

92075

DAMPER

92075-1747

1

$13.88

In stock

92075A

DAMPER

92075-1748

1

$13.80

In stock

510

WOODRUFF KEY

510A5100

1

$2.17

In stock
