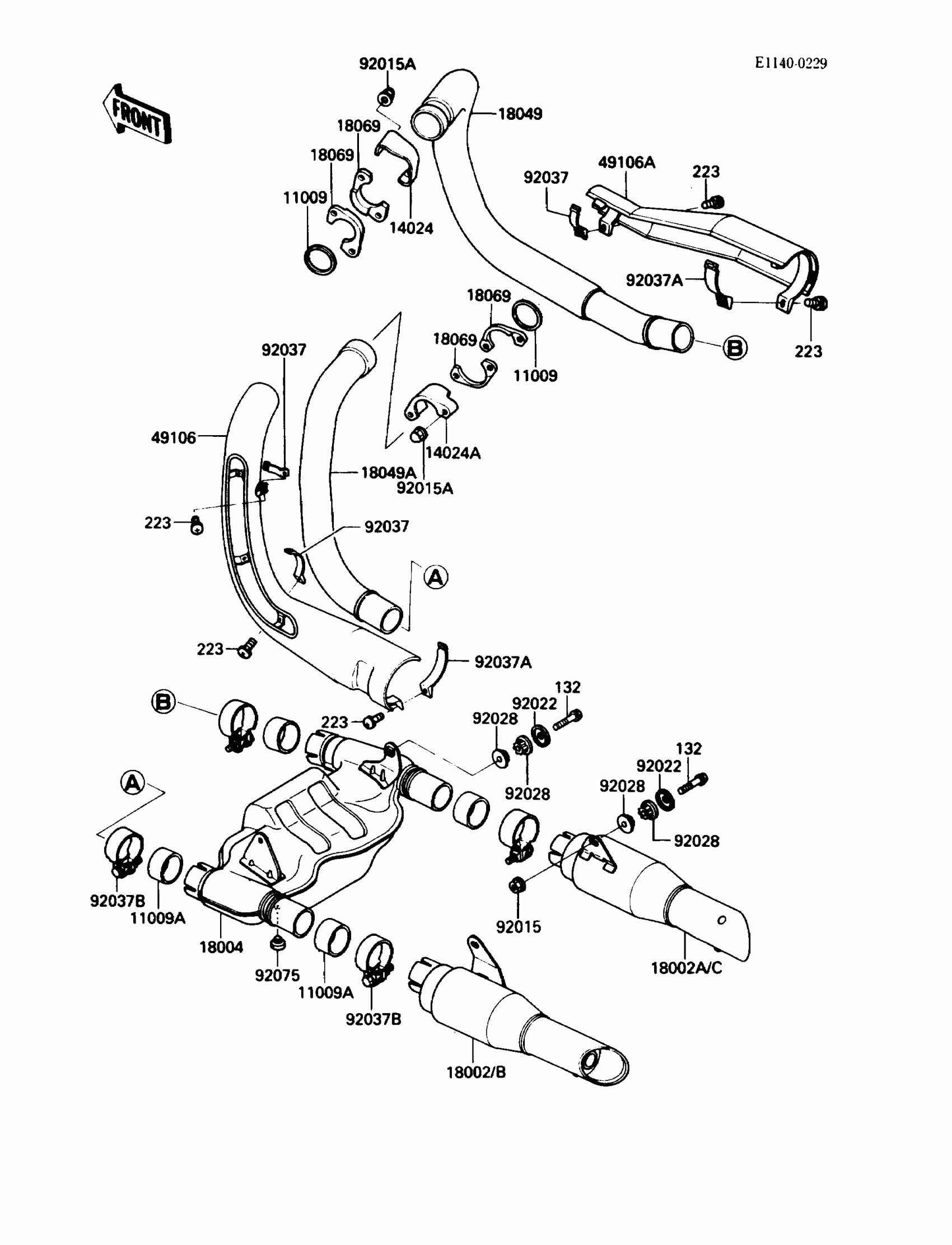

Find the part on the Muffler diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE

11009-1476

1
Out of stock

11009A

GASKET,EXHAUST PIPE CONNECTING

11009-1480

1
Out of stock

14024

COVER,FR

14024-1091

1
Out of stock

14024A

COVER,RR

14024-1092

1
Out of stock

18002B

1

$556.31

In stock

18002C

1

$556.31

In stock

18004

CHAMBER-PREMUFFLER

18004-1055

1

$617.27

In stock

18049

PIPE-EXHAUST,FR

18049-1373

1

$218.24

In stock

18049A

PIPE-EXHAUST,RR

18049-1374

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1061

1

$36.93

In stock

49106

COVER-MUFFLER,LH

49106-1053

1

$188.11

In stock

49106A

COVER-MUFFLER,RH

49106-1054

1

$166.59

In stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,CAP,8MM

92015-1371

1

$3.97

In stock

92022

WASHER,CAP TYPE

92022-1638

1

$9.56

In stock

92028

BUSHING-RUBBER,MUFFLER

92028-1329

1
Out of stock

92037

CLAMP,EXHAUST PIPE COVER

92037-1613

1
Out of stock

92037A

CLAMP,MUFFLER COVER

92037-1615

1

$14.56

In stock

92037B

CLAMP,52MM

92037-1633

1

$25.63

In stock

92075

1

$3.85

In stock

132

1

$7.14

In stock

223

SCREW-PAN-WS-CROS,6X20

223X0620

1
Out of stock
