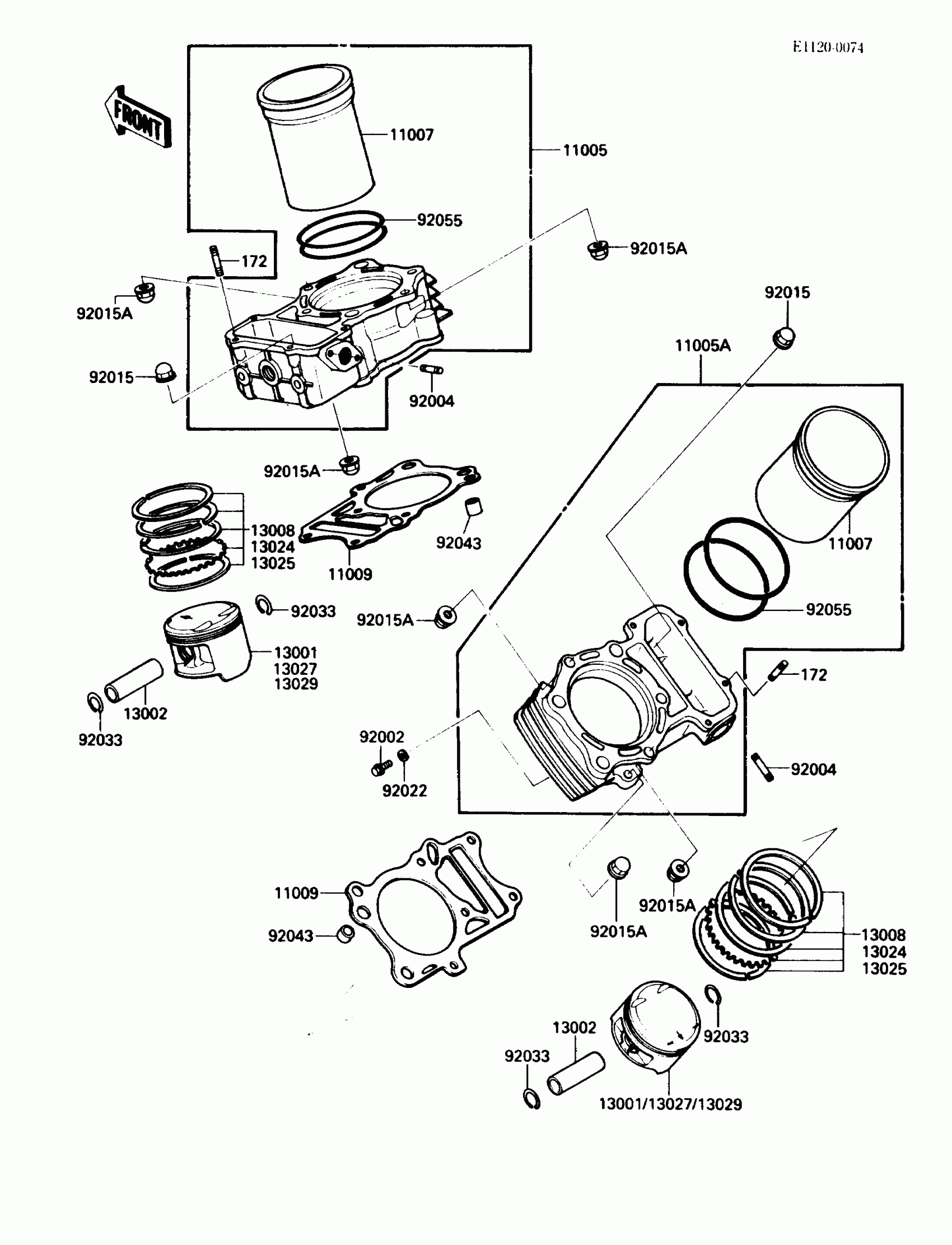

Find the part on the Cylinder/piston diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE,FR

11005-1481

1
Out of stock

11005A

CYLINDER-ENGINE,RR

11005-1483

1
Out of stock

11007

LINER-CYLINDER

11007-1073

1
Out of stock

11009

GASKET,CYLINDER BASE

11009-1511

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1215

1
Out of stock

13002

PIN-PISTON

13002-1056

1
Out of stock

13008

RING-SET-PISTON,STD

13008-1077

1
Out of stock

13024

RING-SET-PISTON LL,O/S 1.00

13024-1069

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-1076

1
Out of stock

13027

PISTON-ENGINE LL,O/S,1.00

13027-1128

1
Out of stock

13029

PISTON-ENGINE L,O/S,0.50

13029-1128

1
Out of stock

92002

BOLT,6X10

92002-1628

1
Out of stock

92004

STUD,6X18

92004-1154

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,CAP,8MM

92015-1371

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92033

RING-SNAP

92033-1188

1
Out of stock

92043

PIN,11X14X12.3

92043-1266

1
Out of stock

92055

RING-O,92MM

92055-1274

1
Out of stock

172

BOLT-STUD,6X20

172G0620

1
Out of stock
