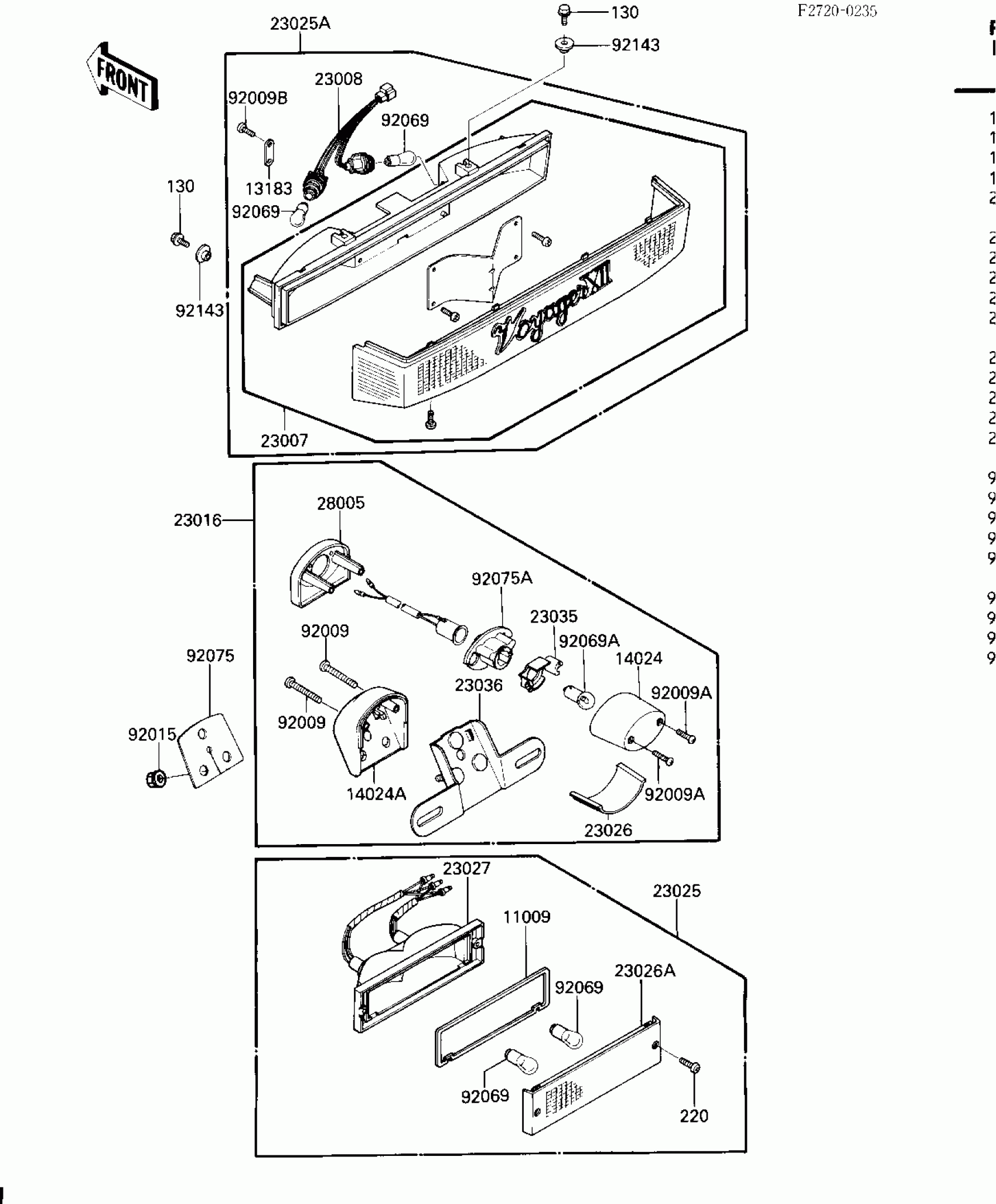

Find the part on the Taillight diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$7.86

In stock

13183

PLATE,TAIL LAMP

13169-1680

1

$4.24

In stock

14024

COVER,LICENSE LAMP

14025-1725

1
Out of stock

14024A

COVER,LICENSE LAMP

14025-1728

1
Out of stock

23007

LAMP-TAIL,P.B.BEIGE

23025-1180-X8

1

$547.94

In stock

23008

1

$50.18

In stock

23016

LAMP-ASSY,LICENSE

23016-1062

1
Out of stock

23025

LAMP-TAIL

23025-1129

1

$146.72

In stock

23025A

LAMP-TAIL,P.B.BEIGE

23025-1180-X8

1

$547.94

In stock

23026

LENS,LICENSE LAMP

23026-1064

1

$24.51

In stock

23026A

LENS,TAIL LAMP

23026-1080

1
Out of stock

23027

BODY-COMP-TAIL LAMP

23027-1070

1

$146.72

In stock

23035

REFLECTOR-LAMP,LICENSE

23035-1060

1
Out of stock

23036

BRACKET-TAIL LAMP

23036-1105

1

$33.01

In stock

28005

BODY-LAMP,LICENSE

28005-1051

1

$25.64

In stock

92009

SCREW,TAPPING,5X40

92009-1263

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92009B

SCREW,TAPPING,4X12

92009-1395

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER,LICENSE LAMP

92075-1676

1

$9.56

In stock

92075A

DAMPER,LICENSE LAMP

92075-1694

1

$23.12

In stock

92143

COLLAR,L=6.5

92143-1025

1

$4.93

In stock

130

BOLT-FLANGED,6X20

130C0620

1
Out of stock

220

1

$3.24

In stock
