1986 Kawasaki Voyager XII Ignition Switch/locks/reflectors Diagram

← All diagrams

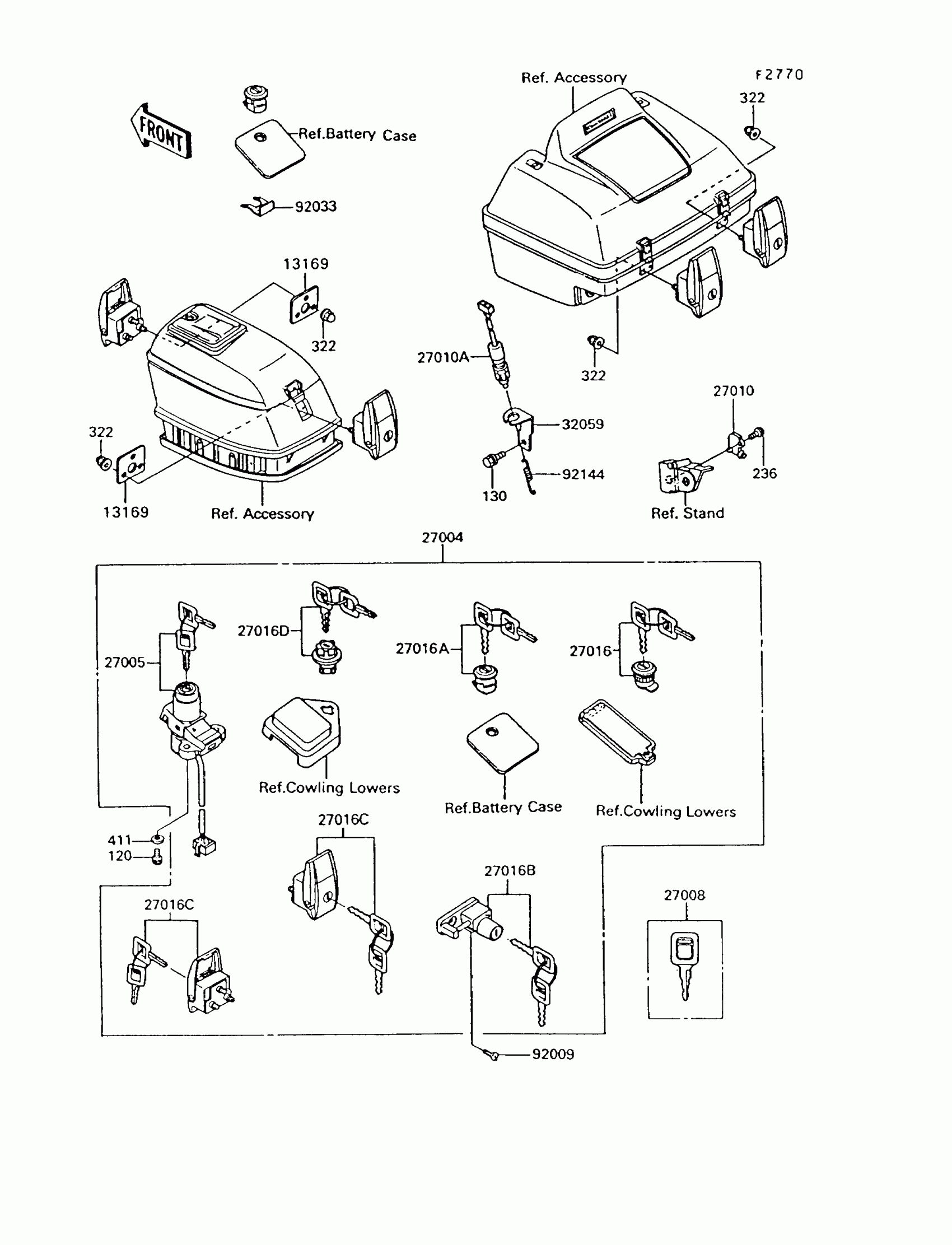

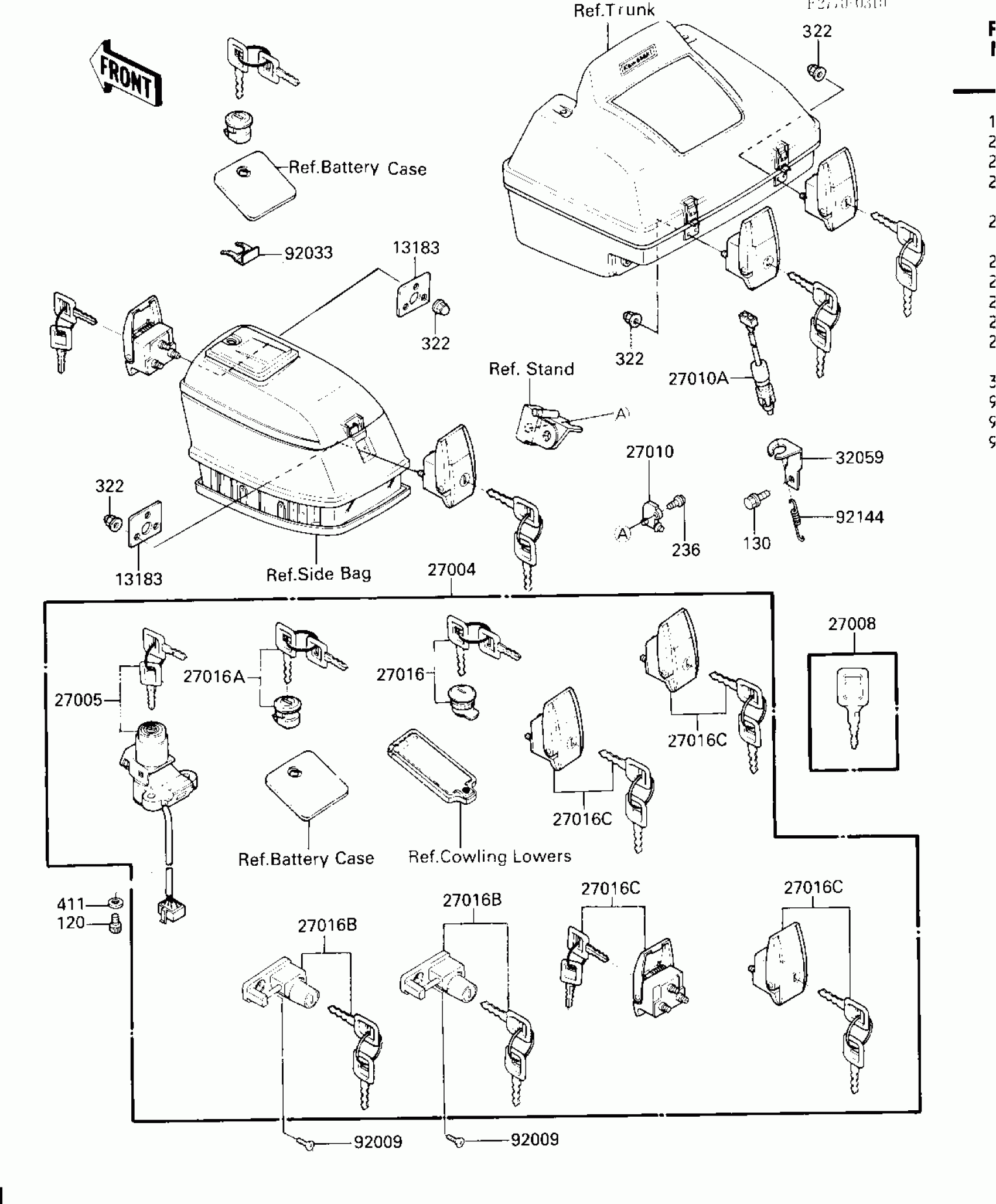

Find the part on the Ignition Switch/locks/reflectors diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13183

PLATE,BAG

13169-1641

1
Out of stock

27004

SWITCH-ASSY

27004-5278

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5063

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1
Out of stock

27010

SWITCH,BRAKE/SIDE STAND

27010-1185

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-1200

1
Out of stock

27016

LOCK-ASSY

27016-5062

1
Out of stock

27016A

LOCK-ASSY,TANK CAP COVER

27016-5106

1
Out of stock

27016B

LOCK-ASSY,HELMET

27016-5107

1
Out of stock

27016C

LOCK-ASSY,BAG

27016-5108

1
Out of stock

32059

BRACKET-SWITCH,REAR BRAKE

32059-1068

1
Out of stock

92009

SCREW,5X12

92009-1401

1
Out of stock

92033

RING-SNAP,COWLING POCKET

92033-1095

1
Out of stock

92144

SPRING,REAR BRAKE

92144-1015

1
Out of stock

120

BOLT-SOCKET,6X16

120T0616

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

236

SCREW-PAN-WSP-CROS

236B0416

1
Out of stock

322

NUT-CAP,4MM

322C0400

1
Out of stock

411

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock
